CONNECT BATTERY (See Figs. 2 and 3)
A
CAUTlOd: Do not short battery termi­
nals. Before connecting battery, re­
move
metal bracelets, wristwatch
bands, rings, etc.
Positive terminal must be connected
first to prevent sparking from acciden­
tal grounding.
» Remove cardboard packing from seat pan and lift seat
pan to raised position.
• Open battery box door,
• Remove terminal protective caps and discard.
• If t.his battery is put into service after month and year
indicated on label (label located between terminals)
charge battery' for minimum of one hour at 6-10 amps.
• First connect RED battery cabie to positive (+) terminal
with hex bolt, flat washer, lock washer and hex nut as
shown. Tighten securely.
• Connect BLACK grounding cable to negative (-) termi­
nal with remaining hex bolt, fiat washer, lock washer
and hex nut. Tighten securely.
• Close battery box door.
Open battery box door for:
•
Inspection for secure connections (to tighten hard­
ware),
• Inspection for corrosion.
• Testing battery.
• Jumping (if required).
• Periodic charging .
DISCARD
^TERMINAL
PROTECTIVE LOCK
CAPS
WASHER
POSITIVE
(RED)
CABLE HEX
NUT
FLAT
WASHER
NEGATIVE
(BLACK) CABLE

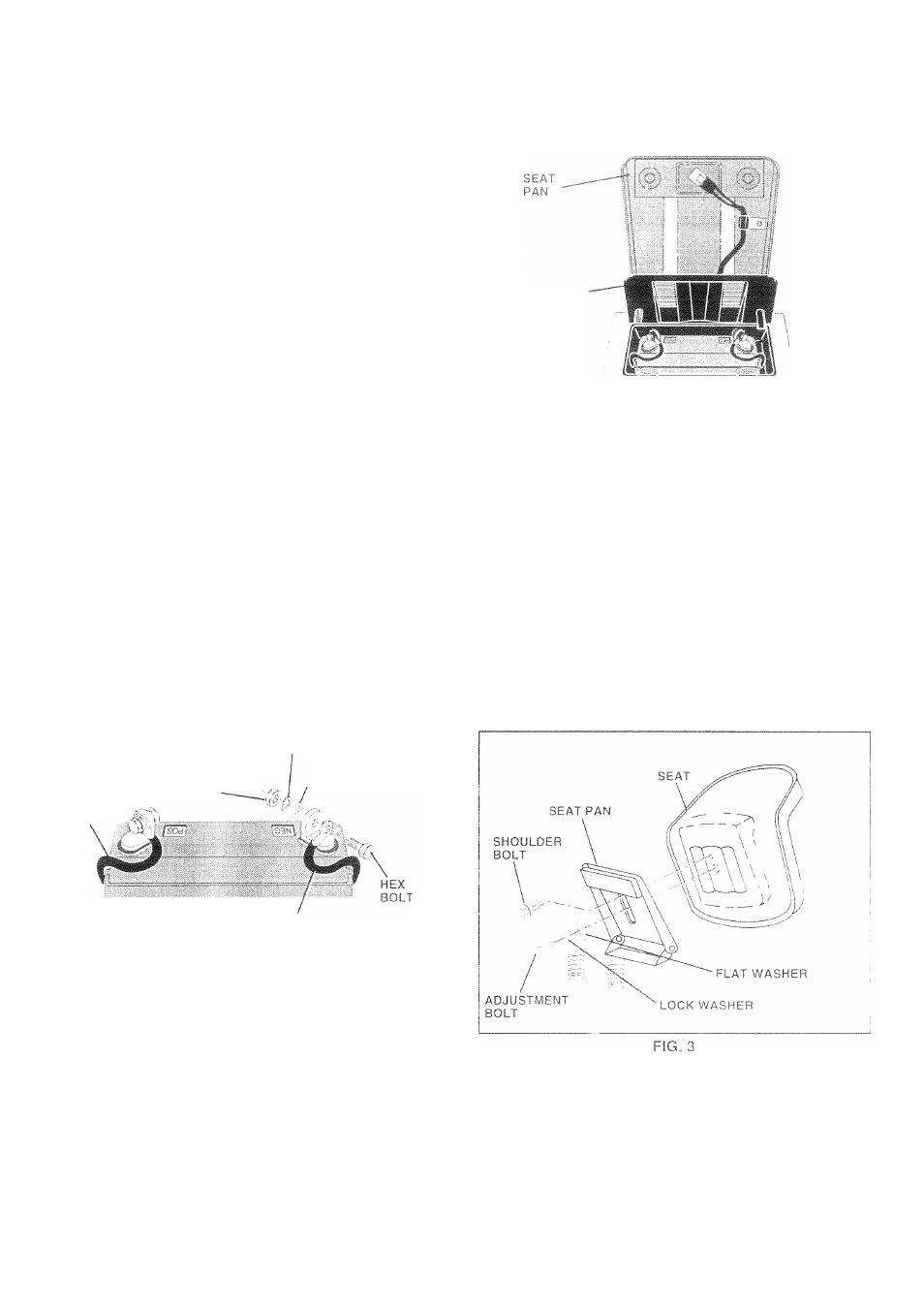

FIG. 2
BATTERY -
BOX DOOR
FIG. 3
INSTALL SEAT (See Fig. 3)
Adjust seat before tightening adjustment bolt.
• Remove cardboard packing on seat pan,
• Place seat on seat pan and assemble shouiaer con.
• Assemble adjustment bolt, iock washer and fiat wasnei
loosely. Do not tighten.
• Tighten shoulder bolt securely.
• Lower seat into operating position and sit on seat,
• Slide seat until a comfortable position is reached which
allows you to press dutch/brake pedal all the way
down.
• Get off seat without moving its adjusted position,
• Raise seat and tighten adjustment bolt securely.
