TILLER - - MODEL NUMBER HDF550M

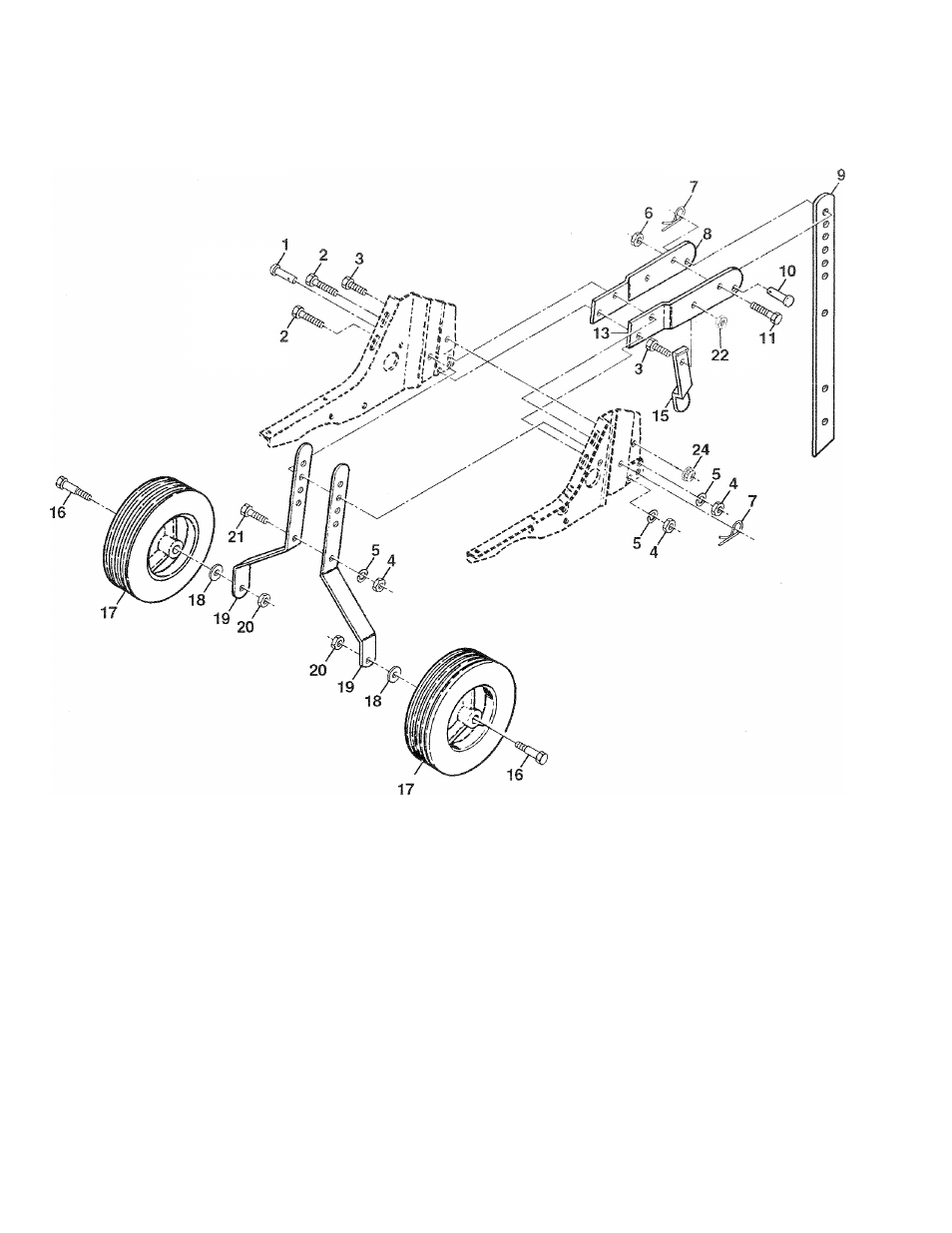

WHEEL AND DEPTH STAKE ASSEMBLY
REPAIR PARTS
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 9194R Pin, Clevis 15 5388J Spring, Stake
2 74760520 Bolt, Hex 5/16-18 X 1-1/4 16 121117X Bolt, Shoulder
3 74760512 Bolt, Hex 5/16-18 X 3/4 17 9188R Wheel
4 73220500 Nut, Hex 5/16-18 18 19131311 Washer 13/32 x 13/16 x 1
5 10040500 Washer, Lock 5/16 19 9190R Bracket, Wheel
6 73800600 Locknut, w/washer 3/8-16 20 73680600 Locknut, Crown 3/8-16
7 4921H Clip, Hairpin 21 74760516 Bolt, Hex 5/16-18 x 1
8 1952J Support, Depth Stake, R.H. 22 73800500 Locknut, w/insert 5/16-18
9 122233X Stake, Depth 24 73970500 Nut Lock Hex Flange
10 326J Pin, Clevis
11 74780628 Bolt, Hex, Fin 3/8-16 x 1-3/4
NOTE: All component dimensions given in U.S,
13 1951J Support, Depth Stake, L.H.
1 inch = 25.4 mm
