REPAIR PARTS

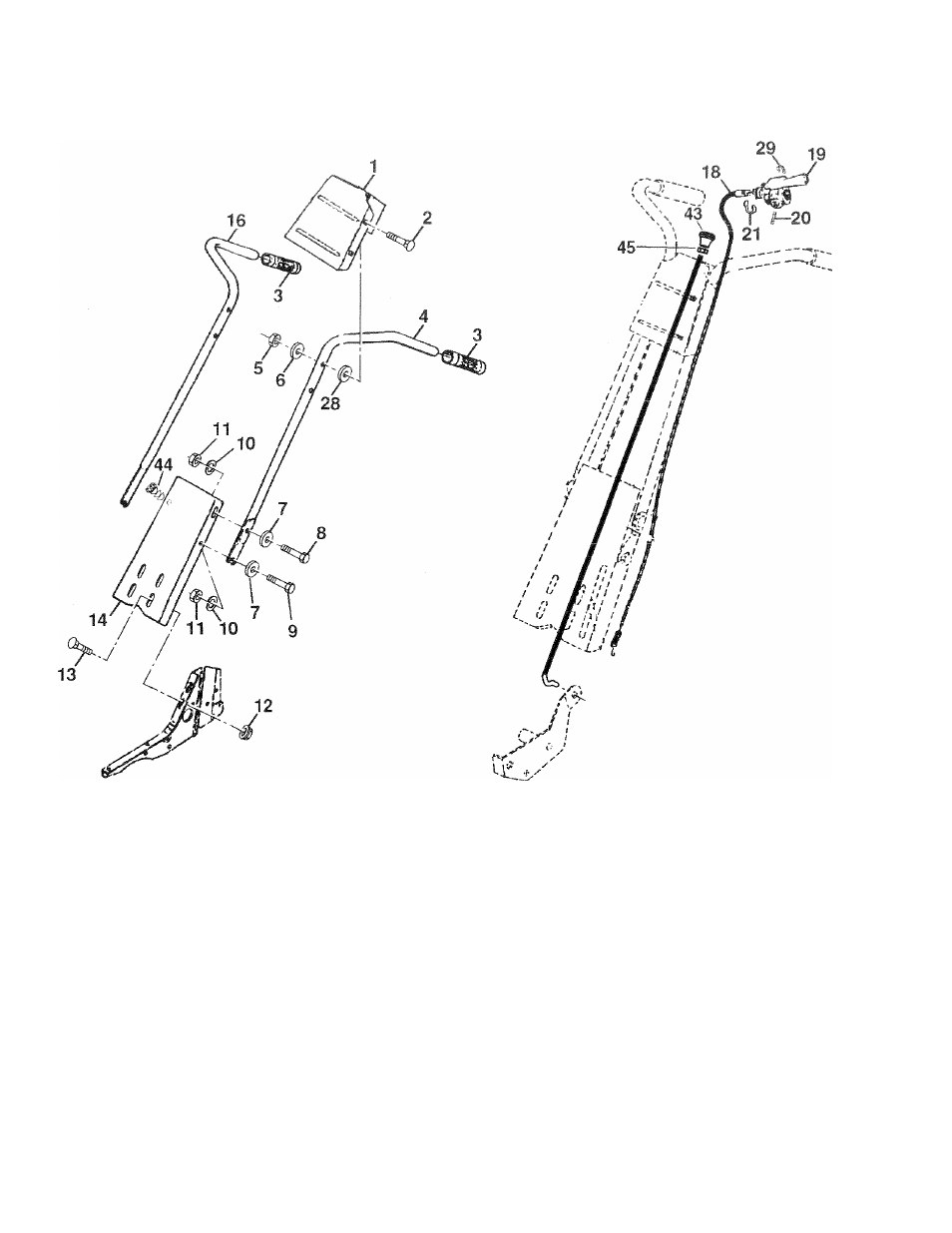

HANDLE ASSEMBLY
TILLER - - MODEL NUMBER HDF550M
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
180814X428
Panel Pnt Control
14
181452X428
Panel, Handle
2
72140512
Bolt, Carriage 5/16-18 UNC x 1-112
16
166377
Handle, R.H.
3
9266R
Grip, Handle
18
166868
Cable, Control, Tine
4
166376
Handle, L.H.
19
151229
Lever, Control, Tine
5
73680500
Locknut, Crown 5/16-18
20
154805
Pin, Pivot
6
19111116
Washer 11/32 x 11/16 x 16 Ga.
21
12000027
Ring, Klip
7
19121414
Washer 3/8 x 7/8 x 14 Ga.
28
19131312
Washer 13/32 x 13/16 x 12 Ga.
8
74760516
Bolt, Hex Hd. 5/16-18x1
29
12000059
Retaining, Ring
9
74760512
Bolt, Hex Hd 5/16-18
X
3/4
43
180528
Cable Assembly, Reverse
10
10040500
Washer, Lock 5/16
44
181580
Clip
11
12
73220500
98000129
Nut, Hex 5/16-18
Nut, Flanged 5/16-18
45
73920600
Nut Keps 3/8-24 Unf
13
180847
Bolt, Carriage 5/16-18 x 3/4 Gr. 5
NOTE: All component dimensions are given in U.S.
inches. 1 inch = 25.4 mm
