Maytag 12001736 - Manual (Page 4)

LOOSE CABINET NOISE
1. Disconnect electrical power to washer.
2. Remove the front panel and lift the top
cover or remove the rear access panel.

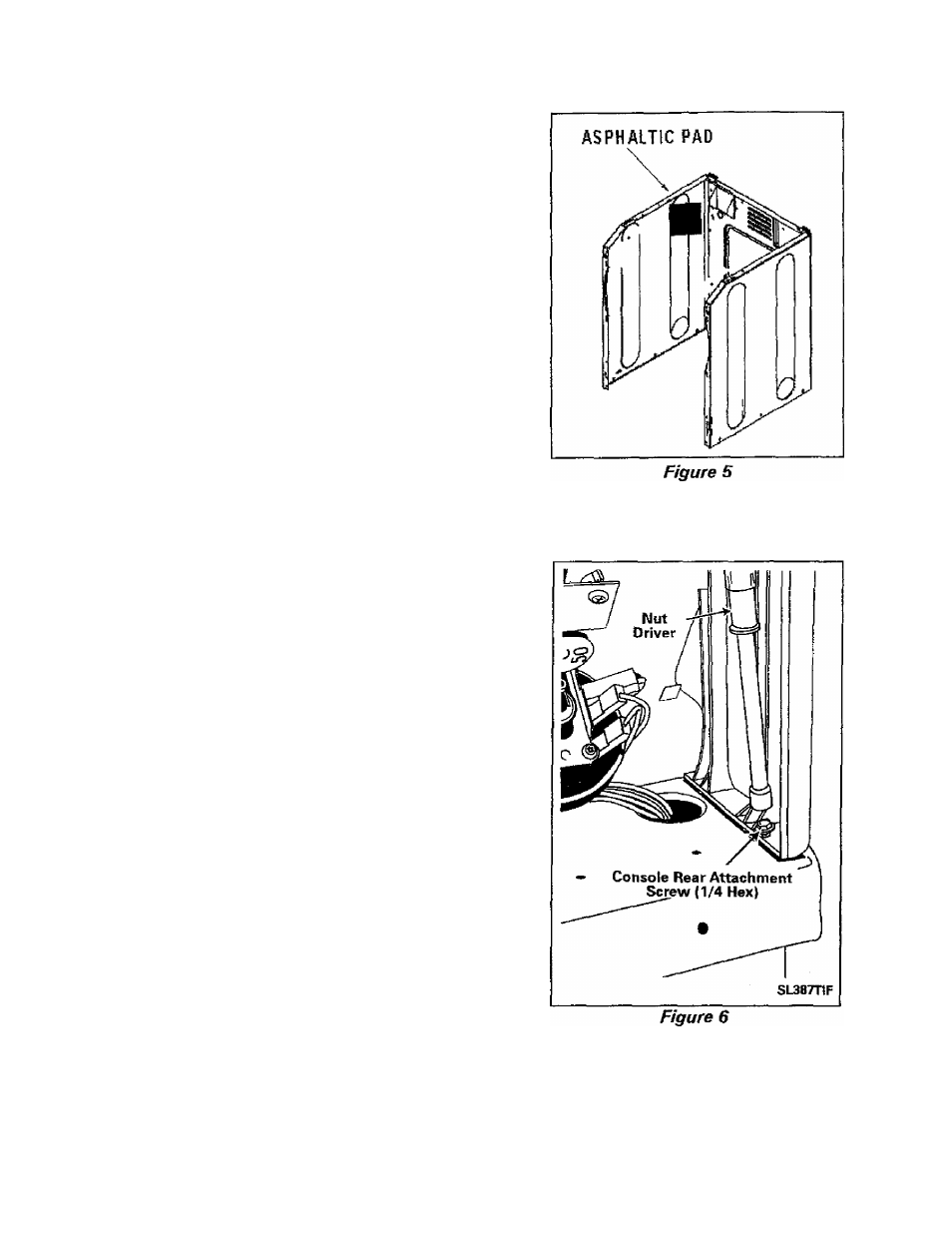

3. Locate the asphaltic pad in the kit. Clean
the surface area as indicated in Figure 5.
4. Peel the backing from the pad and posi­
tion the pad onto the cabinet. Apply
pressure to the pad to firmly attach the
pad to the cabinet.
5. Lower the top cover and remount the
front panel.
CONSOLE TO TOP COVER
1. Disconnect electrical power to washer.
2. Remove the rear panel of the console.
3. Locate the two console reattachment
screws in the kit. Insert the screws
through the base of the console and into
the top cover. Fasten the screws down
into the top cover. (Figure 6)
4. Reattach rear control console panel.
TS647 Page 4
