INSTRUCTIONS FOR ORDERING
I d ordering from ihl3 Uat, use CWLY the part NUMBER in the
FIRST column.
The number stamped on a Sewing Machine Part Is In every case
the number of the single part only.
Every combination of parts sent out as such has Its specific
number, which, although not stamped on the parts, mujt be used
when ordering the combination.
Each number always Indicates the SA^E PART In whatever list
it appears, or for whatever machine.
The letters after some of the numbers Indicate the style of
finish only, as follows:
A-Hardened, Polished, Nickel Plated and Buffed
A.A-Buffed and Chromium Plated
A.B-Hardened, Polished, Buffed and Chromluin Plated
A.C-Brown Baking Enamel Finish
A.D-Qray Baking Enamel Finish
A.E-Hardened, Bright Rumbled and Nickel Plated
A,F-Hardened, Bright Rumbled, Nickel Plated, Bright Rumbled and
Chroralijm Plated
B-Pollshed, Nickel Plated and Buffed
C-Hardened Only
C.R-Hardened and Merllzed
D-Pollshed Only
E-Soft, Not Polished
F-Hardened and Polished
F.J-Hardened, Polished and Nickel Plated
0-Brlght Rumbled and Nickel Plated
H-Blued
J-Nlckel Plated Only
K-Hardened and Nickel Plated
L-Brass Plated
M-CKldlzed
N-Japanned, Dull
P-Japanned, Bright
P.P-Wrlnkle Finish
R-Merlized
S-Cadmium Plated
T-Copper Plated
T.A-Hardened, Polished, Coi^sr and Nickel Plated and Buffed
T.B-Copper and Nickel Plated and Polished
T.J-Copper and Nickel Plated Only
T.K-Hardened, Copper and Nickel Plated
T.L-Copper and Brass Plated
T.M-Copper Plated and Oxidized
U-Zlnc Plated
V-SIlver Plated
W-Pollshed and Nickel Plated
X-Black Oxide, for Iron and Steel
X.C-Ha:dened and Black Oxide, for Iron or Steel
Y-Black Nickel Plated Only
Z-Chromluni Plated
Z.A-Hardened,Polished,Nickel Plated,Buffed and Chromium Plated
Z.B-Pollshed, Nickel Plated, Buffed and Chromium Plated
Z.C-Hardened and Chromium Plated
Z.D-Pollshed and Chromium Plated
Z.Q-Brlght Rumbled, Nickel Plated, Bright Rumbled and Chromium Plated
Z.J-Nlckel and Chromium Plated
Z.T-Copper and Chromium Plated
These letters MIßT BE USED vhien they appear In the Hat; and
AFTER the number as In the list.
In this scries:
1 to 1500, 50001 to 51500 and 140001 to 142000
are Screw Numbers
1501 to 1800 and 51501 to 51000 are Nut Numbers
1001 to 2000 and 51801 to 52000 are Roller Numbers
2001 to 50000 and 52001 to 140000 and 142001 to
190000 are Sewing Machine Parts, 190001 and upward
are numbers of Electrical Parts,
The figures In the second column refer only to the plates.
Illustrating the parts, and are NOT TO BE USED in ordeidng.
Parts marked with an asterisk (*) are furnished only when
repairs are made at factory.
LIST OF PARTS COMPLETE
FOR

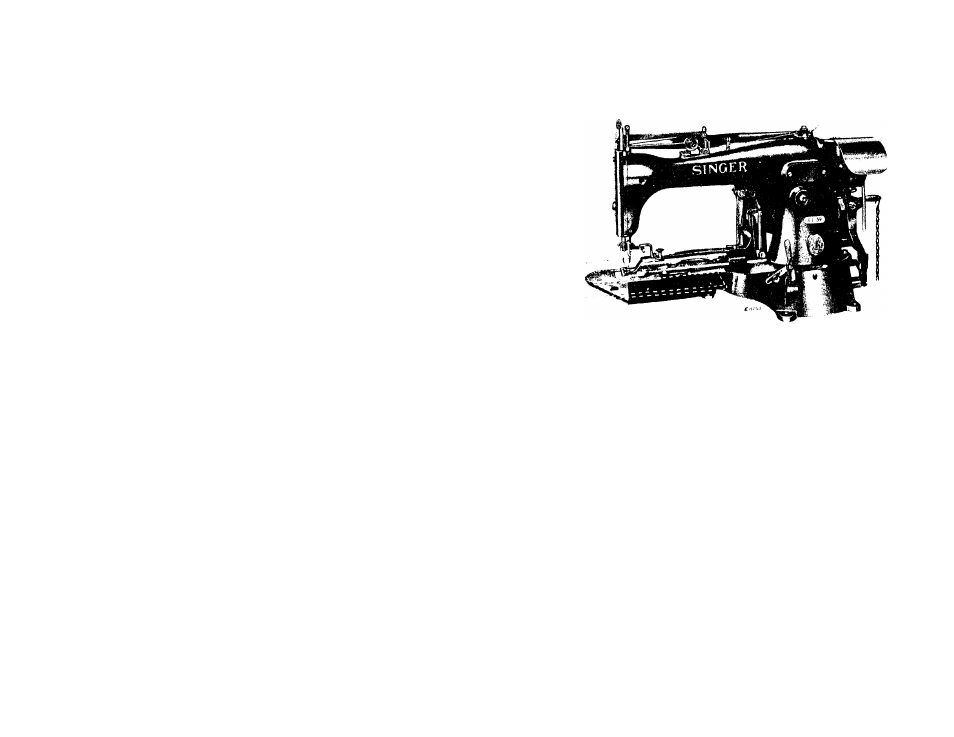

MACHINE No. 114-39
For Tacking Paper Tickets on Clothing to Distinguish Lot,
Color, Size, etc., while in process of Manufacture. Trapezoidal
tack, 9 stitches, base away from operator. Thread cutter, leaves
long end to unravel when detaching ticket. Speed I500R. P.M.
No.
*124845
62295
Plate
16532 9594
4448 9594
56015 9594
880E 9594
59702 9594
17703 9594
50333C 9594
1520J 9594
#4449
Name
Arm...............................................................................
“ 124845 With 4449, 15404, 124793 and
two each 164E and 15405...................................
Arm Dowel Pin.............................................................
” Oil Tube for Intermediate beatrlng...
•
• “ oiling 59705 and 59706.
■ Screw.......................................................................
" Shaft (horizontal)...................................................
•
■ " Bushing (back)....
« • « » »
Justing Screw......................................................
Arm Shaft (horizontal) Bushing (back)
Adjusting Screw Nut...........................................
Arm Shaft (horizontal) Bushing (front)..
