Winding the bobbin – SINGER W173 User Manual
Page 8
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

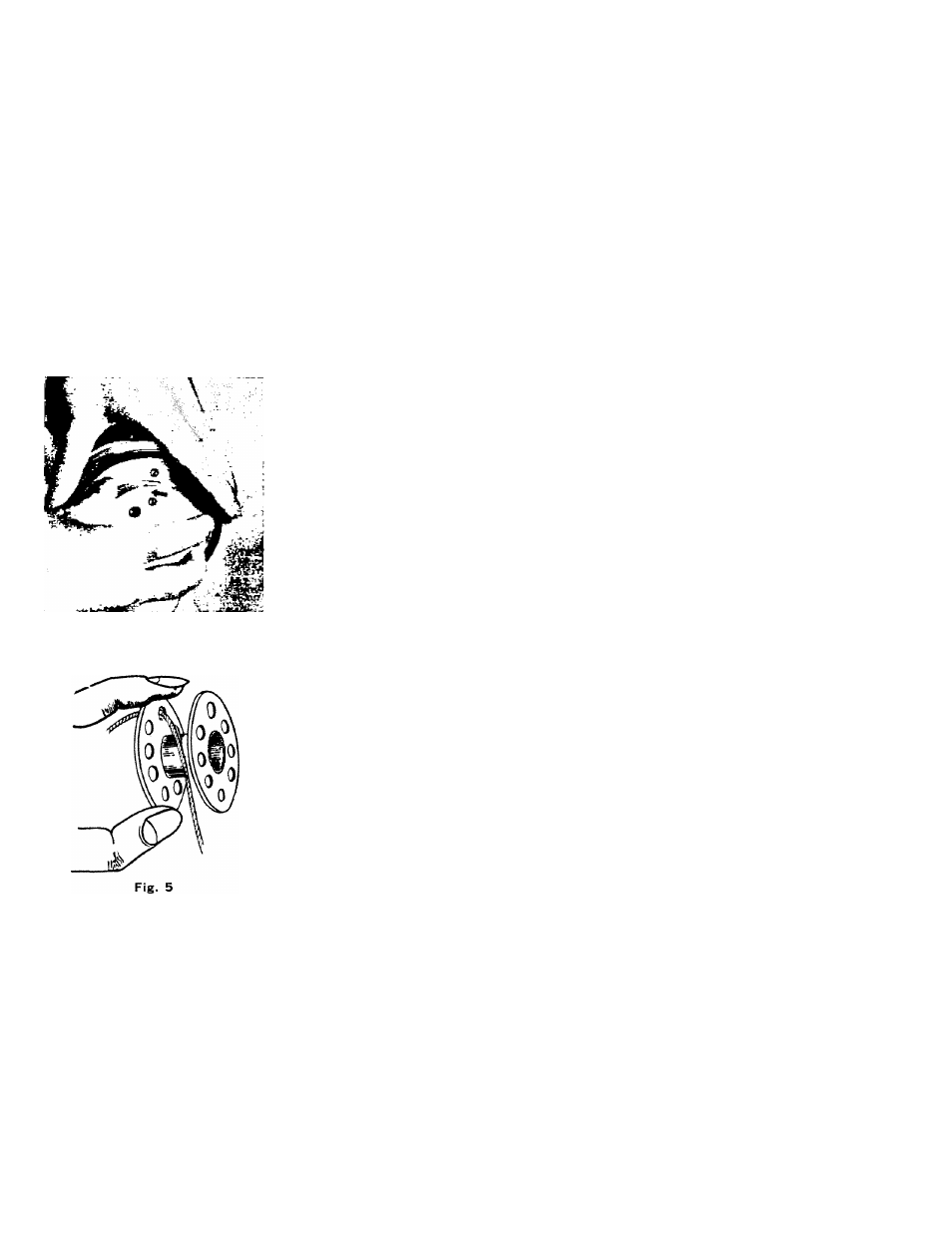

Fig. 4
Disengage
the
hand
wheel
(2,
Fig.
4)
from
the
stitching
mechanism
by
turning
clutch
(3,
Fig.
4)
toward you or counter-clockwise.
Place a spool of thread on one ‘of the spool pins.
Lead thread through arm thread guides, (A, Fig. 3)
and down between tension disc, 7, at the base of
the machine.
Put end of thread through a hole in bobbin flange
(Fig.
5)
from
inside
to
outside
and
place
bobbin,
(B, Fig. 3) on spindle of bobbin winder (4, Fig. 3)
fitting the notch in bobbin^over small pin on spindle.
Push bobbin windey pulley against hand wheel. Hold
thread end loosely and start machine slowly. Bobbin
will be released when filled.
Hold the hand wheel and turn clutch away from you
until
sewing
mechanism
is
engaged
so
that
the
needle moves up and down when you turn the hand
wheel.
Break off loose thread end used to start the wind
ing.
WINDING THE BOBBIN
