TO LUBRICATE THE MACHINE (Cont'd.)
Clean
llÉÉàSp
A
'
iX,

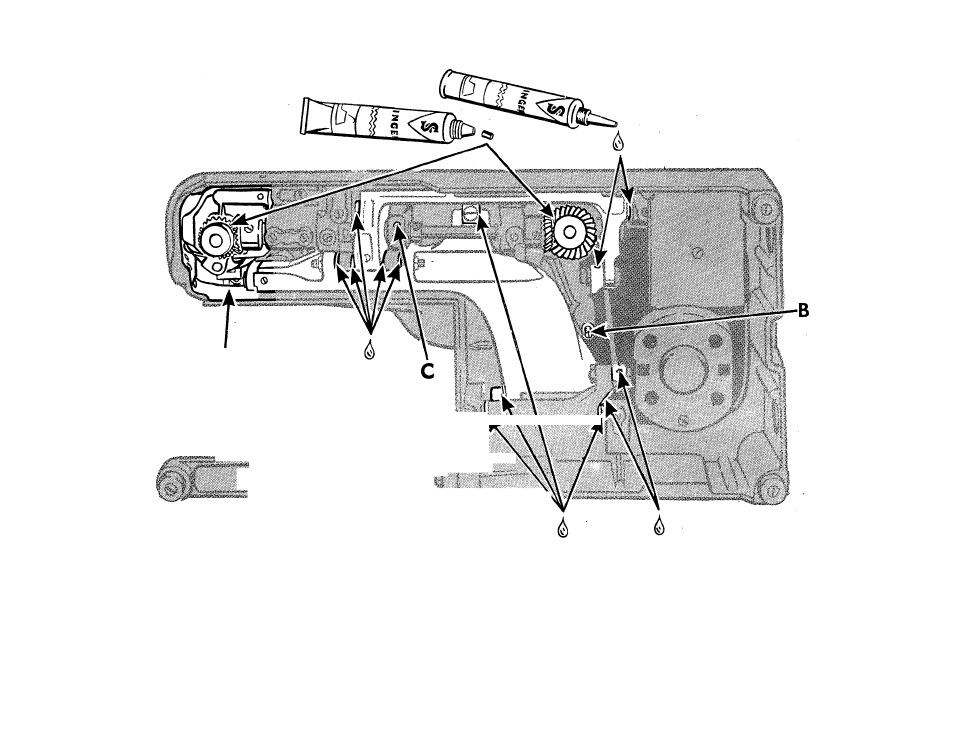

Tilt machine back and remove thumb nut from screw B, being careful not to lose felt washer, and
remove cover from underside of machine.
Remove screw C and remove cylinder cover.
Clean hook and gear area, oil each of the places indicated, and occasionally apply a small quantity of
lubricant to teeth of gears as shown.
Replace bottom cover and cylinder cover.
The motor requires no lubrication.
92
