INSTRUCTIONS FOR ORDERING
In ordering from tlUa list, use (ЖЬУ the part NUMBER In the
FIRST column.
The number stamped on a Sewing Machine Part Is la every case
the number of the single part only.
ЕЛ-егу combination of parts sent out as such has Its specific
number, which, although not stamped on the parts, must be used
when ordering the combination.
Each number always indicates the ЗАРЕ PART in whatever Hat
it appears, or for whatever machine.
The letters after some of the numbers indicate the style of
finish only, as follows:
A-Hardened, Polished, Nickel Plated and Buffed
A.A-Buffed and Chromium Plated
A.B-Hardened, Polished, Buffed and Chromium Plated
A.C-Brcvfn Baking Enamel Finish
A.D-Oray Baking Enamel Finish
A.E-Hardened, Bright Rumbled and Nickel Plated
A.F-Hardened, Bright Rumbled, Nickel Plalod, Brlglit Rumbled and
Chromium Plated
B-Pollshed, Nickel Plated and Buffed
C-Hardened Only
C.R-Hardened and Merllzed
D-Pollshed Only
E-3oft, Not Polished
F-Hardened and Polished
F.J-Hardened, Polished and Nickel Plated
0-Brlght RiOTbled and Nickel Plated
H-Blued
J-Nlckel Plated СЫу
K-Hardened and Nickel Plated
L-Brass Plated
M-Qxldleed
N-Japanned, Dull
P-Japauned, Bright
P.P-Wrlnkle Finish
R-Merllzed
S-Gadmlum Plated
T-Copper Plated
T.A-Hardened, Polished, Copper and Nickel Plated and Buffed
T.B-Copper and Nickel Plated and Polished
T.J-Copper and Nickel Plated Only
T.K-Hardened, Copper and Nickel Plated
T.L-Copper and Brass Plated
T.M-Copper Plated and CDcldlzed
U-Zlnc Plated
V-Sllver Plated
W-Polished and Nickel Plated
X-Black Oxide, for Iron and Steel
X.C-Hardened and Black Oxide, for Iron or Steel
Y-Black Nickel Plated Only
Z-Chromlum Plated
Z.A-Hanlened,Polished,Nickel Plated,Buffed and Chromium Plated
Z.B-Pollahed, Nickel Plated, Buffed and Chromium Plated
Z.C-Hardened and Cliromium Plated
Z.D-Pollahed and Chromium Plated
Z.Q-brlght Rumbled, Nickel Plated, Bright Ruiifcled and Chromium Plated
Z.J-NIckel and Chromium Plated
Z.T-Copper and Chromium Plated
These letters MUST BE USED when they appear in the list; and
AFTER the number as in the list.
In thlj series:
1 to 1500, 50001 to 51500 and 140001 to 142000
are Screw НитЬех-а
1501 to 1000 and Б1501 to 51000 are Nut Numbers
1001 to 2000 and 51001 to 52000 are Roller Numbers
2001 to 50000 and 52001 to 140000 and 142001 to
190000 are Sewing Machine Parts, 190001 and upward
are numbers of Electrical Parts.
The figures in the second column refer only to the plates,
Illustrating the parts, and are NOT TO BE USED In ordering.
Parts marked with an asterisk (•) are furnished only when
repairs are made at factory..
When ordering parts which differ as to Gauge (the distance
between аеапв) the Gauge, as well as the Number must be given on
order.
LIST OF PARTS COMPLETE
FOR

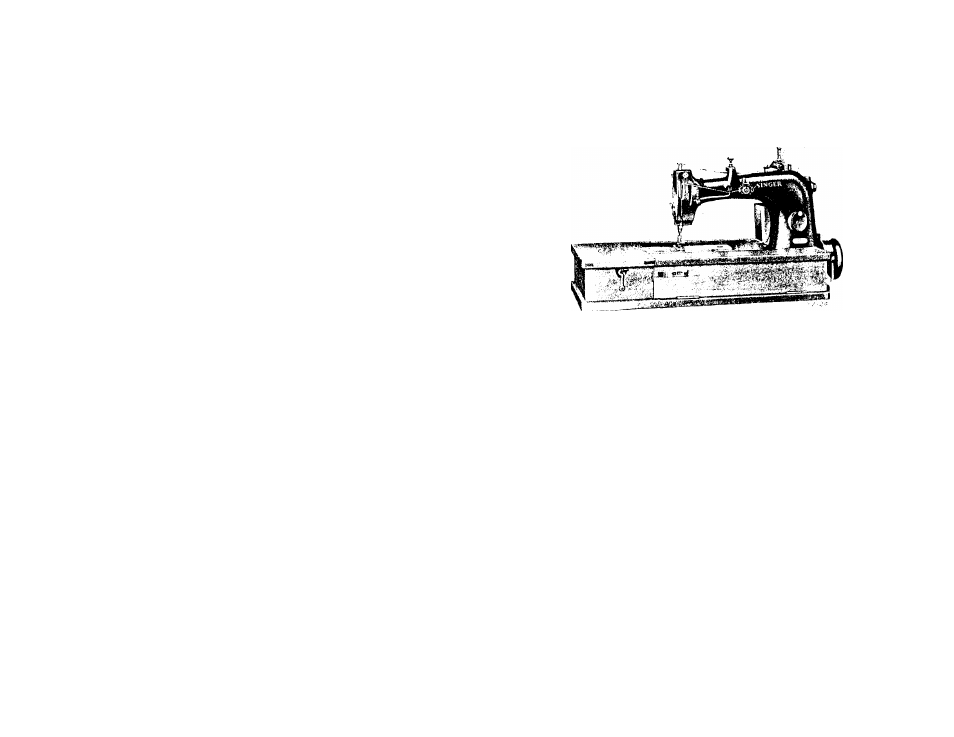

MACHINE No. 147-5
FOR UPHOLSTERY WORK ON AUTOMOBILES.
ONE NEEDLE, ONE LOOPER, TWO-THREAD
CHAIN STITCH. FOOT LIFTER. CLEARANCE
UNDER PRESSER FOOT 1/4 INCH. SPEED
UP TO 3000 R. P. M., ACCORDING TO THE
/MTERIAL BEING STITCHED.
No. Plate Name
*68117 ------- Arm, upper and lower (solid) with 948J,
15404, 54034 and two 15405............................
42366 8901 Arm Oil Pad (braided cotton) for oiling
Arm Roolc Shaft Front Bearing......................
56006 8901 Arm Oil Pad (braided cotton) for oiling
Arm Rock Shaft Intermediate Bearing.
56003 8985 Arm Oil Tube with 52045, for oiling
54326..................................................................
11119 8901 Arm Oil Tube with 52045, for oiling
68137.......... .......................................................
,52045 8901 Arm Oil Tube Packing (braided cotton)...
68116 9904 " Rock Shaft............................................................
63119 ......... " " " 68118 with 54004 and 64255
64386 8901 " " " Bushing (back)...............................
446C 8901 n " " '• 3et Screw..
