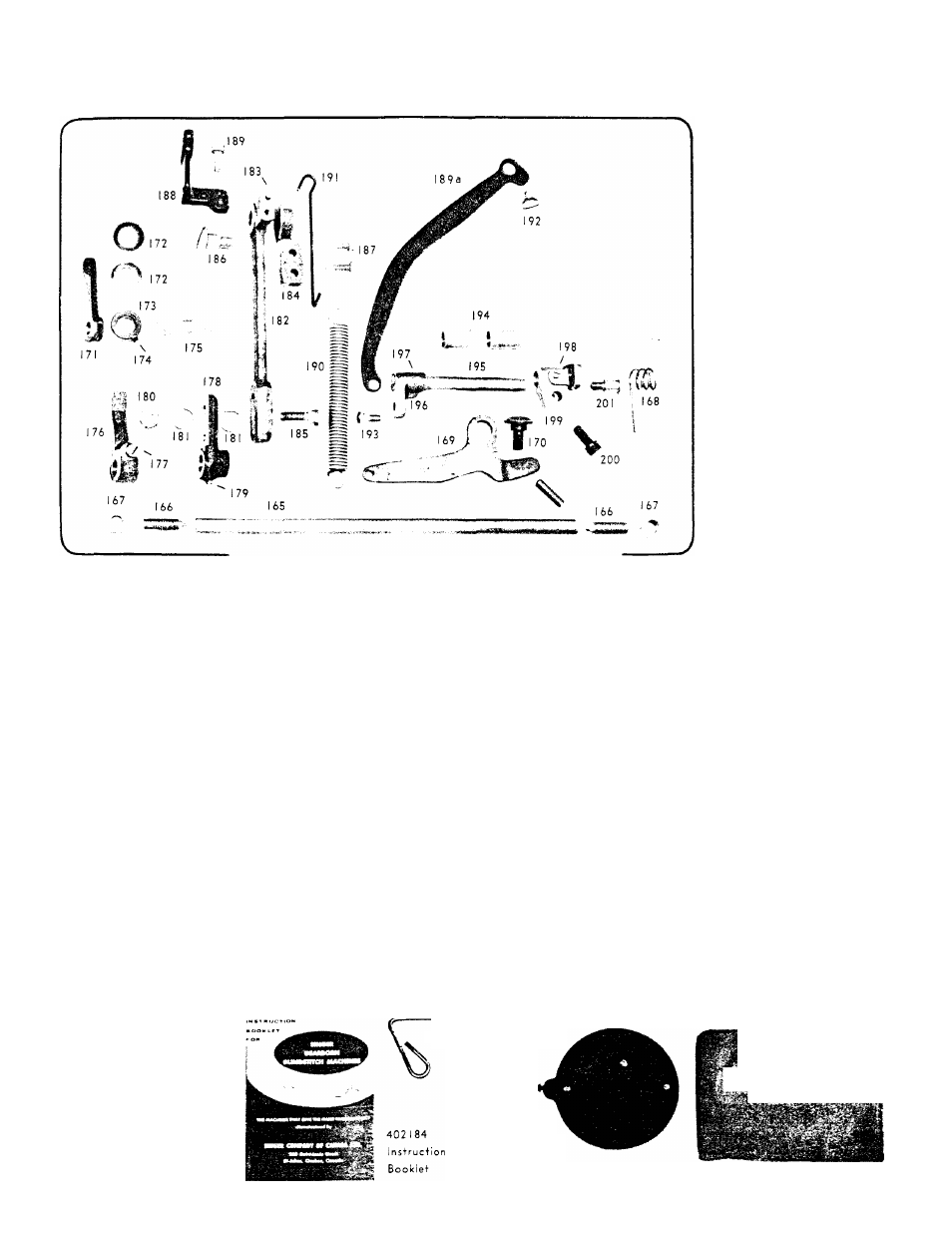

SKIP CONTROL AND CRANK ASSEMBLY
lllustrn. Part lllusfrn. Pari
Ref. No. No. Description
Ref. No. No.
Description
165 400360 Skip Control Cam Shaft 184 400377 Skip Control Main Lever Bracket
166 400361 Skip Control Cam Shaft Center Screw (2) 185 400368 Skip Control Cam Shaft Crank Stud
167 400362 Skip Control Cam Shaft Center Screw Nut (2 ) 186 400376 Skip Control Main Lever Stud
168 400365 Cam Lever Spring 187 402053 Skip Control Main Lever Bracket Mounting
169 400309 Feed Frame Tension Spring Lever Sc rew 1 2 )
170 400005 Feed Frame Tension Spring Lever Stud 188 400380 Skip Control Main Lever Extension
171 400371 Skip Control Hand Lever 189 400381 Skip Control Main Lever Extension Fastening
172 400372 Skip Control Hand Lever Washer (2) 189a 400339 Rib Shaft Connection Lever Screw
173 402373 Skip Control Throw Out Collar 190 400003 Feed Frame Tension Spring (Short)
174 400099 Skip Control Throw Out Collar Set Screw 191 400307 Feed Frame Tension Spring Hook
175 402405 Skip Control Throw Out Shaft 192 400078 Rib Shaft Connection Lever Stud
176 400378 Skip Control Throw Out Lever 193 400072 Rib Shaft Crank Stud
177 402053 Skip Control Throw Out Fastening Screw 194 402468 Rib Rocker Crank Shaft Bearing (2)
178 400366 Skip Control Cam Shaft Crank 195 400346 Rib Rocker Crank Shaft
179 400099 Skip Control Cam Shaft Crank Set Screw 196 400349 Rib Rocker Crank Left
180 400370 Skip Control Cam Shaft Stud Nut 197 400367 Rib Rocker Crank Left Tapered Pin
181 400369 Skip Control Cam Shaft StudWasher(2) 198 400099 Rib Rocker Crank Set Screw
182 400379 Skip Control Main Lever 199 400348 Rib Rocker Crank Right
183 400382 Skip Control Main Lever Pin 200 400301 Rib Rocker Crank Right Fastening Screw
201 400080 Main Shaft Connection Lever Stud
ACCESSORIES
402063 Washer
402406
Clamping
Bolt
Needles
( Specify Size)
400120 Cotton Stand
402044
Wood Screws
n i T T
402086 Cotton Bag
