SINGER 12SS-1 - Manual (Page 5)

D

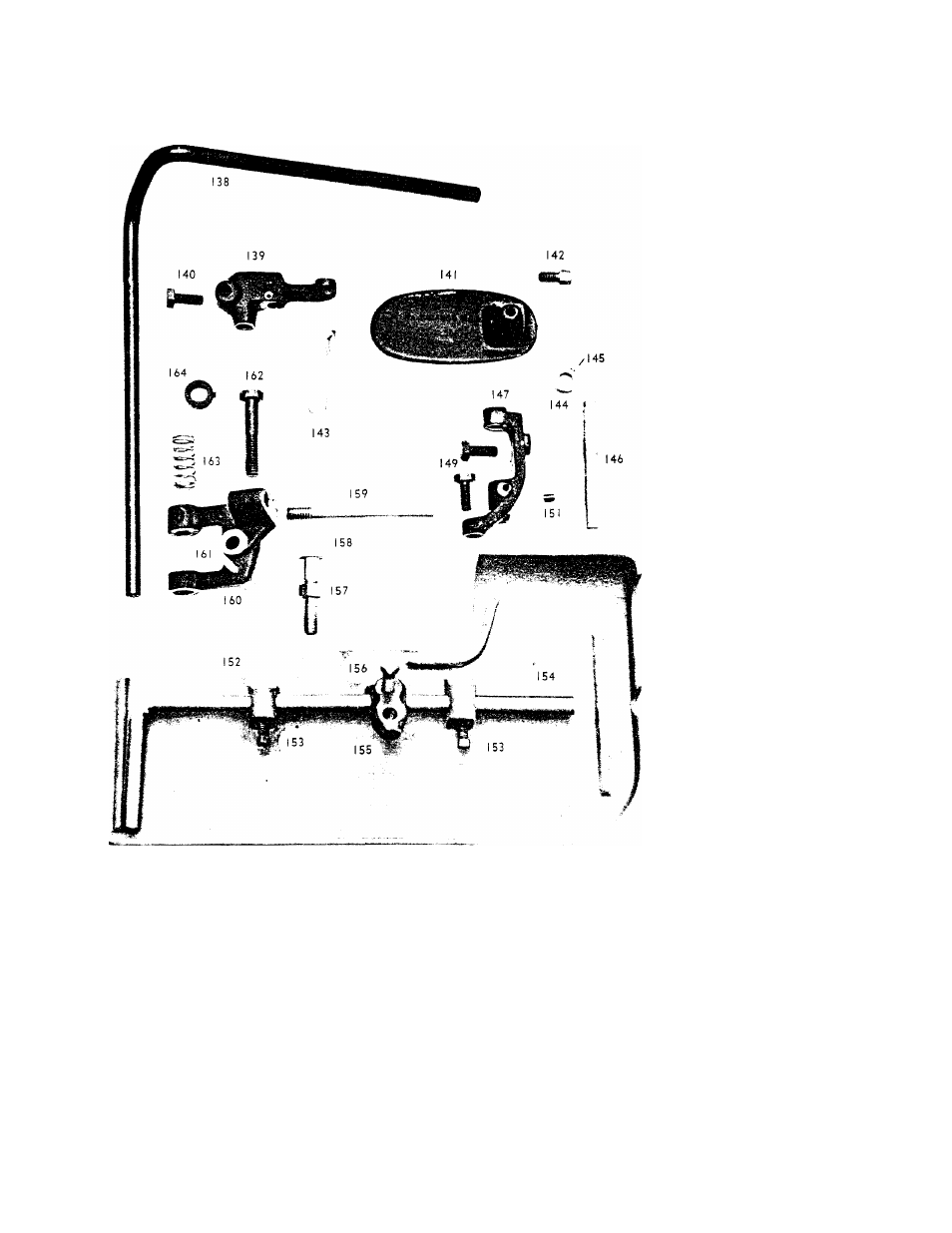

SWING PLATE AND KNEE LIFT ASSEMBLY
strn.
^ No.
Port
No. Description
lllustrn.
Ref. No.
Part
No. Description
138 400416 Knee Lift Rod 152 402465 Swing Plate
139 400418 Knee Lift Rod Clamp 153 400182 Swing Plate Clamp Screw (2)
140 400419 Knee Lift Rod Clamp Screw 154 400i87 Swing Plate Rod
141 400417 Knee Lift Pad 155 400193 Swing Plate Stop Stud Bracket
142 402079 Knee Lift Pad Set Screw 156 400386 Swing Plate Stop Stud Bracket Screw
143 400408 Knee Lift Connecting Hook 157 400192 Swing Plate Stop Stud Nut
144 400415 Knee Lift Collar 158 400191 Swing Plate Stop Stud
145 400100 Knee Lift Collar Set Screw 159 400184 Swing Plate Main Bracket Stud
146 400414 Knee Lift Short Shaft 160 400183 Swing Plate Main Bracket
147 400412 Knee Lift Main Bracket 161 400185 Swing Plate Main Bracket Pin
149 400413 Knee Lift Main Bracket Screw (2) 162 400186 Swing Plate Main Bracket Screw
151 400098 Knee Lift Main Bracket Set Screw 163 400190 Swing Plate Rod Spring
164 400188 Swing Plate Rod Collar
