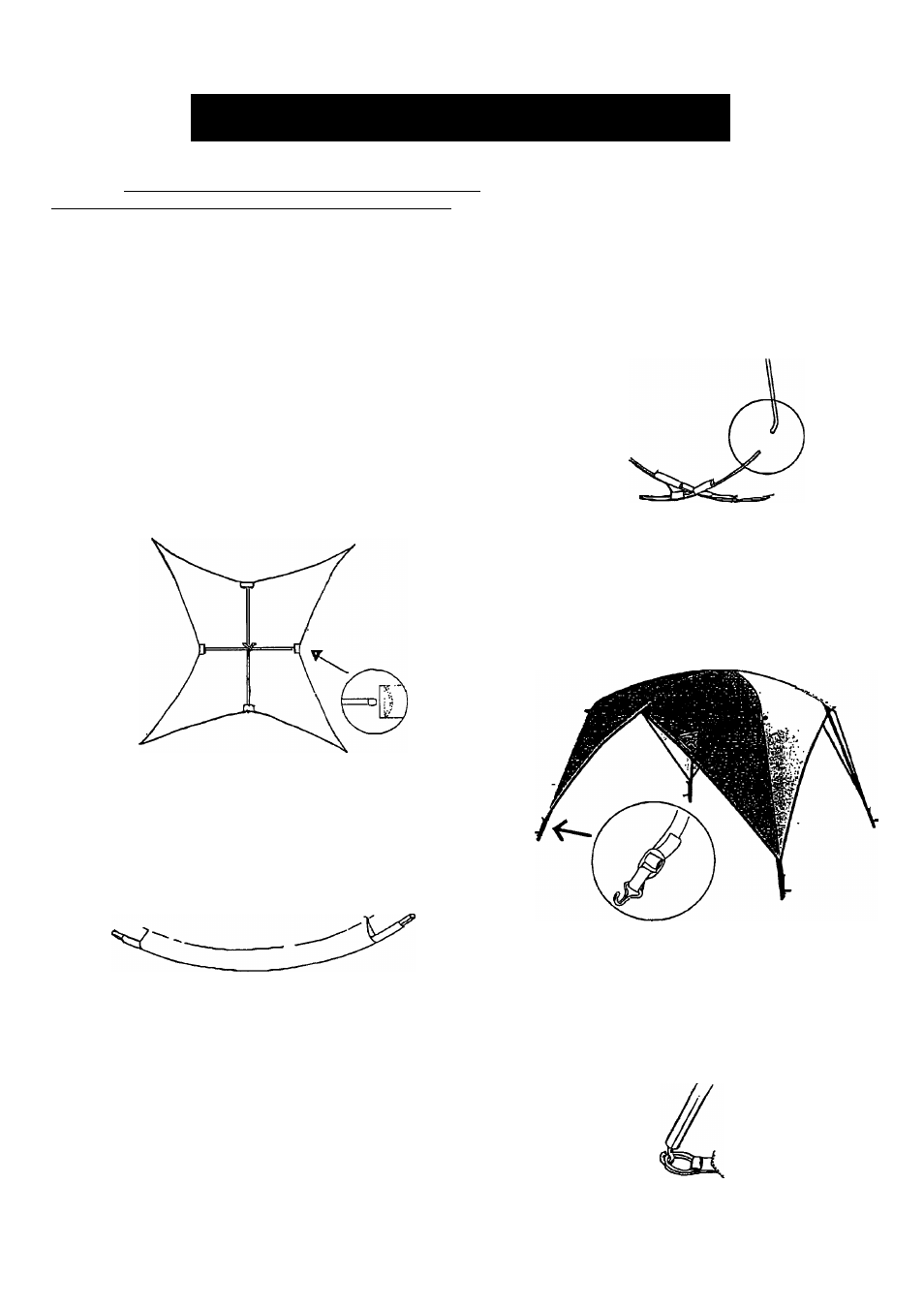

ASSEMBLY INSTRUCTIONS
IMPORTANT: WE ADVISE YOU TO ASSEMBLE THE TENT ONCE BEFORE GOING CAMPING TO BECOME FAMILIAR
ASSEMBLY OFTHETENT. FORTHIS MODEL. IT IS RECOMMENDED TWO PEOPLE BE INVOLVED IN SETTING UPTHISTENT.
NOTE: PLEASE LOOK ATTHE REPLACEMENT PARTS DIAGRAMTO SEE HOWYOUR FRAME IS
ASSEMBLED.
» To prolong the life of the tent floor, select a level, dean area for the campsite.
* To prevent damage to the zipper, unzip the doors and window flaps to allow air to enter the tent.
STEP 3:
STEP1:
STEP 2:
Spread fl/ of tent out on the ground so the
underside of the fly is facing up.
Locate the two fiberglass fly pole sections. Each pole
section is shock corded together. Extend each
section. Insert the ends of the longer fiberglass pole
into the pockets located at the sides of the fly. Insert
the ends of the remaining fiberglass pole into the
pockets located at the front and rear of the fly.
Each of the ridge poles of the tent consists of four
metal sections chain corded together. Carefully
extend each of the sections by joining them together
at the swages to form each section into the shape of
an arc. Slide each section through the sleeves on
the fly.
STEP 4: Using ties located in the center of fly, tie the
fiberglass and metal poles into place.
STEP S; Locate the four metal pole sections. Each section
consists of three poles chain corded together.
Extend each section. While leaving fly on the ground,
join the bent end of the metal section to one end of
the metal ridge pole sections, which were inserted
into the fly sleeves. Repeat for the remaining three
pole uprights.
STEP 6;
STEP 7;
Secure fly to frame by fastening the self-fasteners
on the fly around the metal frame.
With the help of another person, flip fly over so it is
uptight. Attach the "J" hooks on the comers of the
fly into the open ends of the metal uprights. Adjust
ter)sion as necessary.
STEP 8: Lay tent out under the fly with the roof side up.
Unzip doors. Standing on the floor of the tent, hook
the center hook of the tent to the tent frame and
work your way out to the comers of the tent,
clipping tent hooks around the frame.
STEP 9: Insert the pins attached at each comer of the tent
into the open ends of each frame pole.
