ASSEMBLY

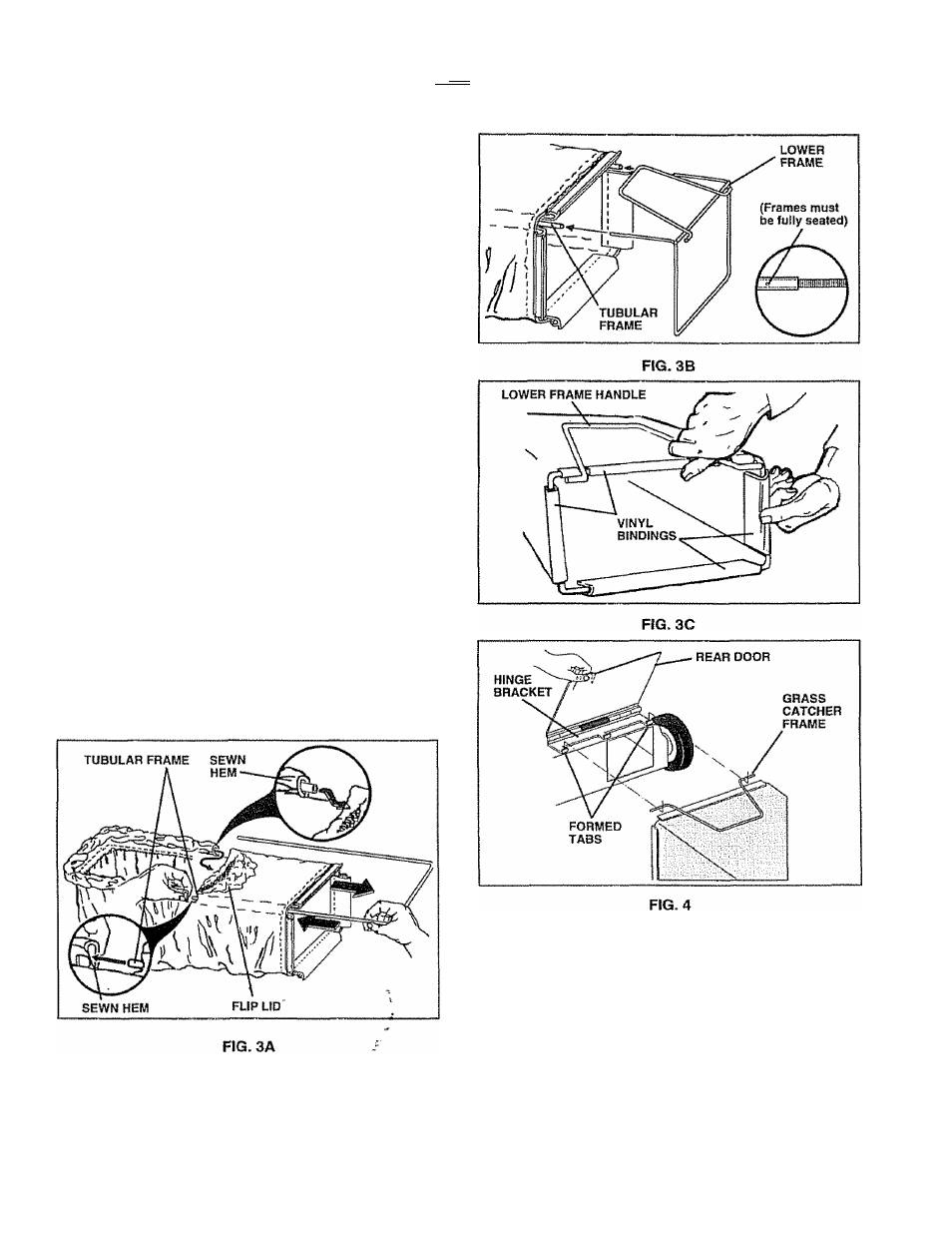

TO ASSEMBLE AND ATTACH GRASS
CATCHER (See Figs. 3A thru 4)
• Insert leg of tubular frame through front opening of
grass catcher and thread frame into sewn hem of bag,,
NOTE: Keep bag hem gathered on the straight leg of the
tubular frame.
• When frame comes out the other end of sewn hem,
immediately work the end of frame down inside the bag
as shown in inset.
• Slide sewn hem evenly around the tubular frame until
both ends of frame are exposed out of the front open­
ing,
• Assemble lower frame to tubular frame as shown. Be
sure handle is outside of bag and frames are fully
seated as shown in inset.
• Slip vinyl bindings over frame,
NOTE: If vinyl bindings are too stiff, hold them in warm
water for a few minutes. If bag gets wet, let it dry before
using.
• Close the flip lid. Flip lid must be closed while operating
lawn mower.
• Lift the rear door on the mower housing and place the
grass catcher frame onto the formed tabs on the rear
door hinge bracket.
• The grass catcher is secured to the lawn mower
housing when the rear door is lowered onto the grass
catcher frame.
A
CAUTION: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt
to operate the lawn mower with the rear
door removed or propped open.
