REPAIR PARTS
Model 390.304692 Model 390.304790 / 390.305790
14A
^ • i ^

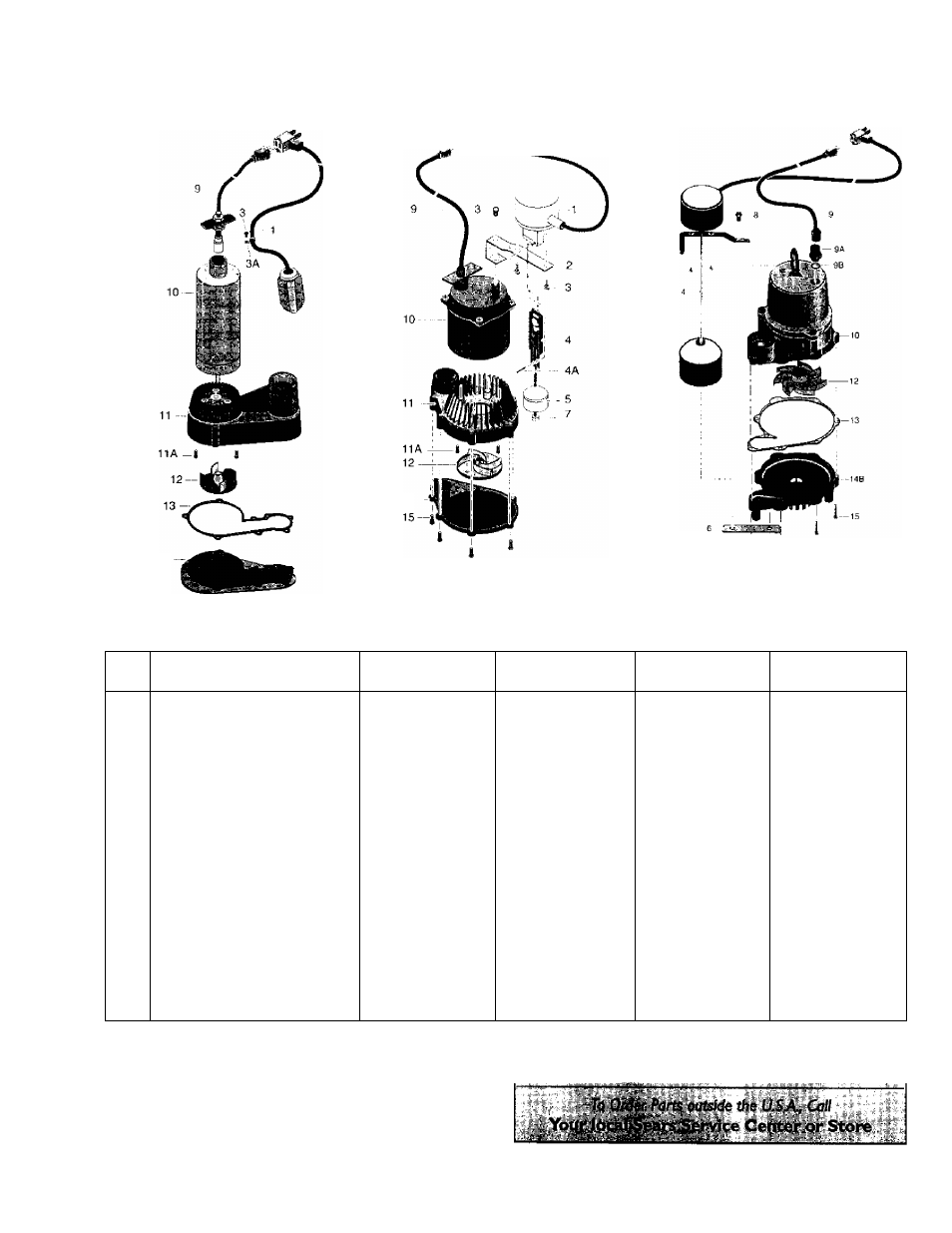

REPAIR PARTS LIST
Key
No.
Part
Description 390.305001 390.304692 390.304790 390.305790
1 Switch PS117-144P PS 17-66 PS17-85 PS 17-85
2 Mounting Bracket - PS19-18SS PS19-20SS PS19-20SS
3 Screw U30-955PS U30-955PS (3 Req.) U30-955PS(2 Req.) U30-955PS (2 Req.)
3A Cord Clip CC0030-13 - -
_
4 Float Rod - PS28-17 PS28-17 PS28-17
4A Float Retainer Pin - PS30-3
_
5 Float - PS28-18 PS28-18 PS28-18
6 Retainer Strap - - PS19-21 PS19-21
7 Float Stop
- RP0005248 RP0005248 RP0005248
8 Screw
- - U30-539SS U30-539SS
9 Power Cord PS117-54-TSU PS117-53-TSU PW117-281-TSU PW117-237-TSU
9A Cord Connector - - PS17-46P PS17-46P
9B O-Ring -■ - U9-370 U9-370
10 Motor Housing ** ** ** **
11 Upper Volute PS1-28P PS1-29P
_ _
11A Screws U30-920SS {3 Req.) U30-912PS (4 Req.) -
_
12 Impeller PS5-22P RP0000911A PS5-26P PS5-29P
13 Volute Gasket PS20-19 PS20-21 PS20-21
14A Base Plate PS3-29P PS4-17P
_
14B Lower Volute
- PS1-34P PS1-34P
15 Cap Screws U30-9342P (8 Req.) U30-934ZP (8 Req.) U30-966SS (7 Req.) U30-966SS (7 Req.)
16 Cap Screw - - U30-967SS U30-967SS
• 1-1/4x1-1/2” Reducer Bushing
- - U78-130P U78-130P
Quantity ONE unless othenwise noted ( ).
• Not illustrated.
If motor fails, replace entire pump.
