SERVICE
VERTICAL SWITCH REPLACEMENT
Model 390.304692

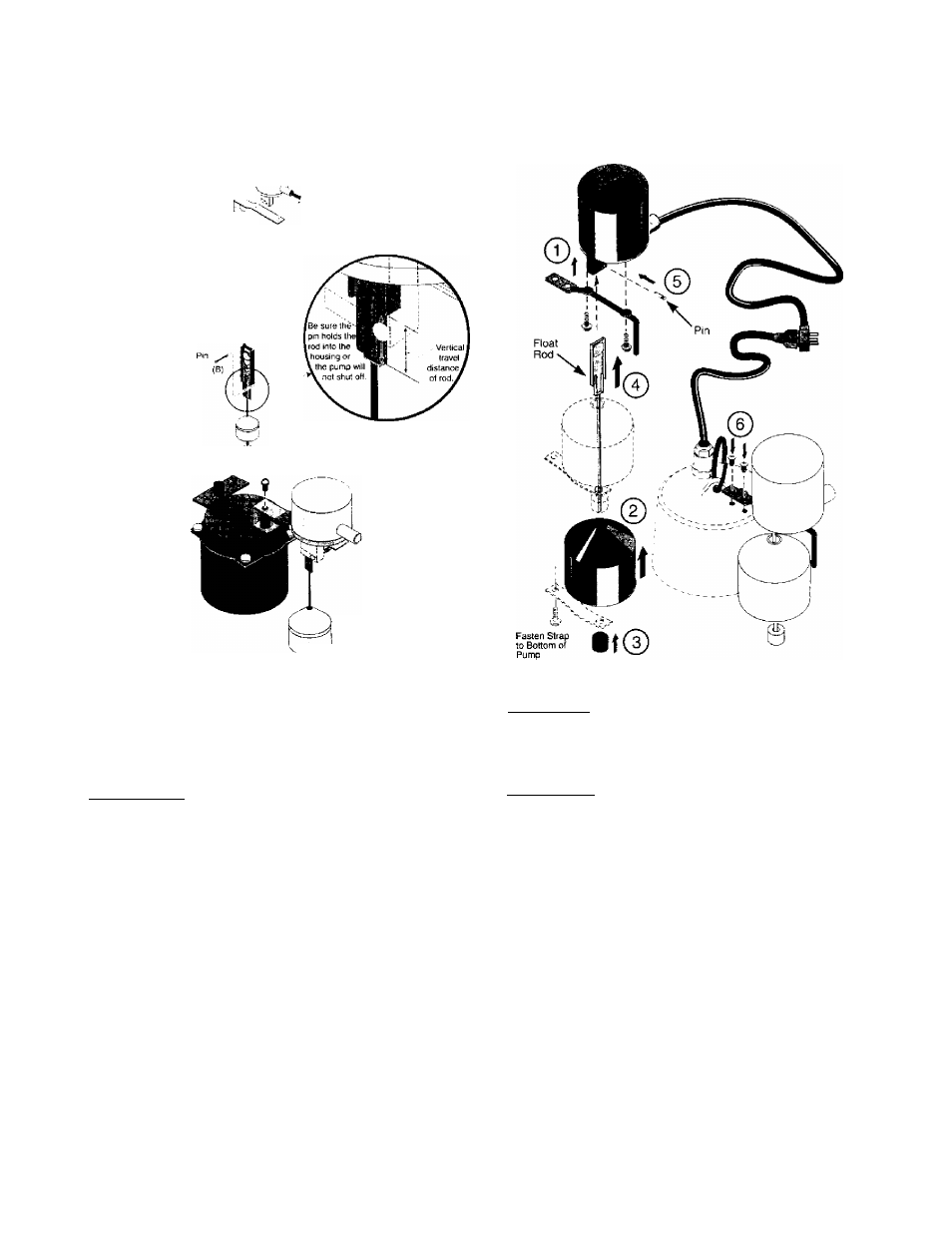

VERTICAL SWITCH REPLACEMENT
Models 390.30479 and 390.30579
©
Mouni Ihe bracket
onto the switch
housir^Q-
Brackel
Bracket
*
Mounting
■
Screws
Switch
Housing
Inset Drawing
©
Slip the lloal
onto the rod.
©
Screw the rod
stop onto the
end ol the rod.
(A)
©
©
Rod I
Stop
Insert the rod assembly
up into the switch
housing (A) and tocK
into place with the
pin (B). See the inset
drawing.
Attach the switch to
the pump as shown,
A
CAUTION Make sure pin holds float rod in switch
housing; otherwise pump will not shut off.
To check switch operation, run pump through one com
plete cycle after installation.
A
CAUTION
gype pjy holds float rod in switch
housing; otherwise pump will not shut off.
To check switch operation, run pump through one com
plete cycle after installation.
A WARNING I Rjsit of electrical shock. Can bum or kUl.
Plug pump and switch into a grounded electrical outlet
only.
A
WARNING R£gh of electrical shock. Can bum or kUL
Plug pump and switch into a grounded electrical outlet
only.
