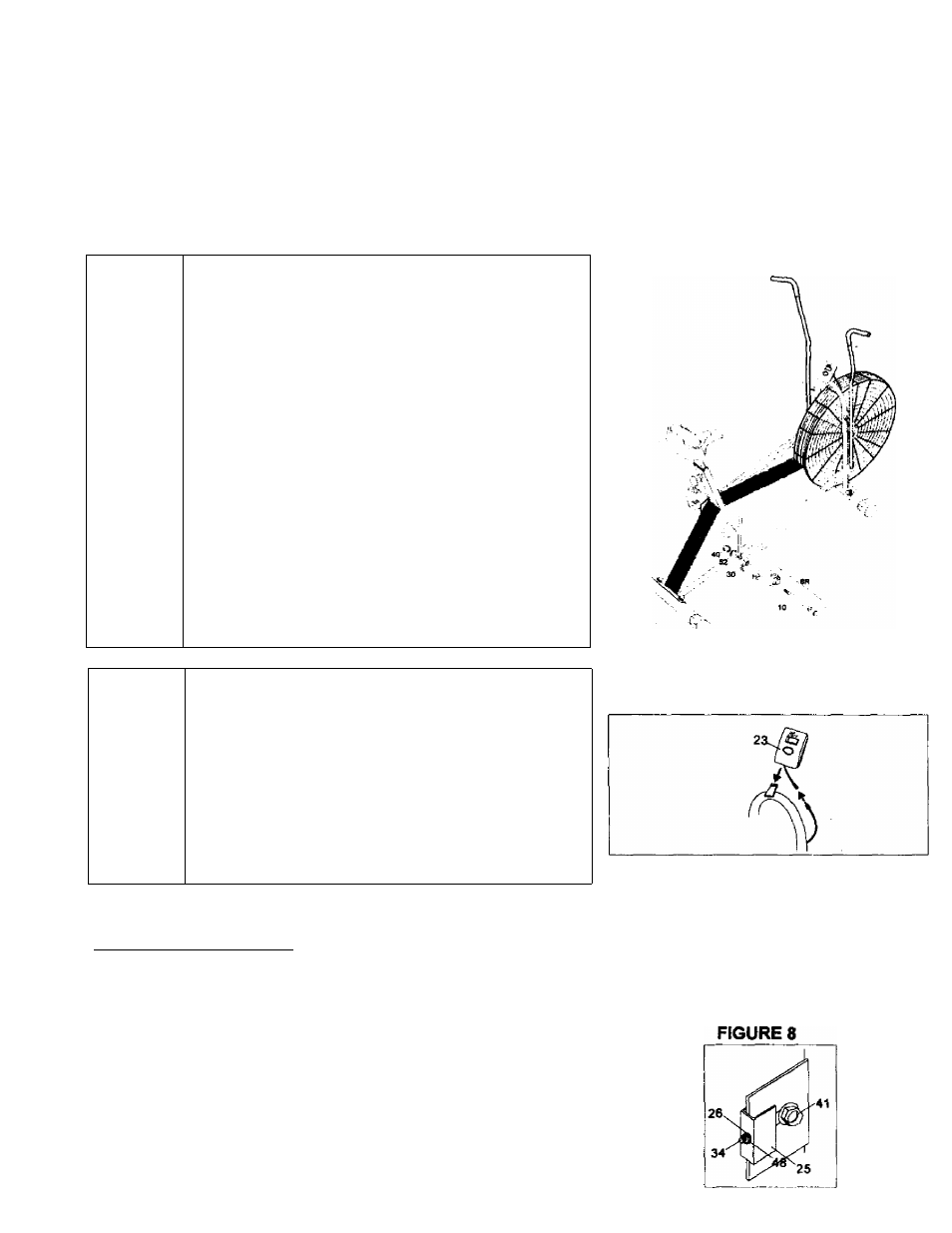

ASSEMBLY INSTRUCTIONS CONTINUED
IMPORTANT
READ ALL OF STEP 6 "a" through "d" BEFORE ATTACHING THE PEDALS. REFER TO
FIGURE 6. THE SPACERS (29 and 30) already mounted on LINKAGE.
ASSEMBLY USING FIGURES 2 TO 7
STEP 6a
Insert the PEDAL AXLE (10) through the PEDALS
(8R and 8L) and the shoulder side of the LINKAGE
(4R and 4L).
STEP 6b
Tighten both PEDALS (8R and 8L) by turning
clockwise.
Screw
the
PEDAL
AXLE
into
the
CRANK (20).
STEP 6c
Thread the NUT (40) and SPRING WASHER (52)
onto the PEDAL AXLE (10).
STEP 6d
TIGHTEN PEDAL AXLES AND NUTS (41) UNTIL
NUTS (41) ARE TIGHT AGAINST THE CRANK.
THE NUTS MUST BE TIGHTENED SECURELY.
STEP 6e
Insert Cap.
See Figure 6
STEP?
Attach the CONSOLE (23) to the FRAME (1).
To be sure, console shows a display. If it does not,
check batteries and battery installation.
STEP 8
Plug in the SPEED PICKUP WIRE to the socket of
CONSOLE (23).
FIGURE 7
FIGURE 6
FIGURE 7
FAN ADJUSTMENT
Fan adjustment is required if the resistance of the fan increases or decreases after use. To adjust the fan,
follow the following procedures.
STEP 1 Loosen the NUT (41)
STEP 2 Turning the NUT (48) clockwise or counterclockwise
to adjust the FAN to your personal requirement.
STEP 3 Tighten the NUT (41)
