ASSEMBLY
INSTRUCTIONS
OPERATION
1. Remove the shredder, parts pack and all
literature from the carton before discarding
carton.

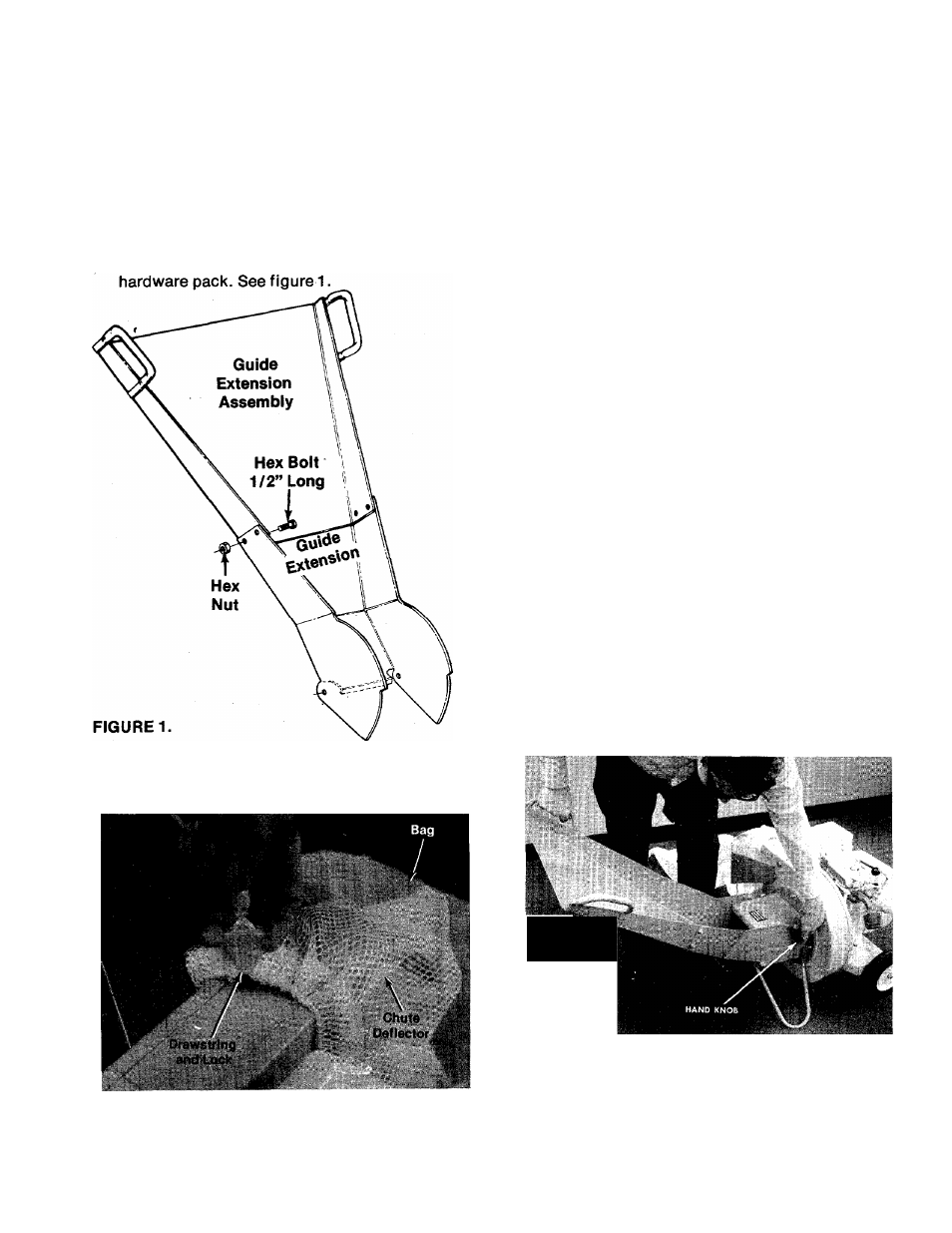

2. Place the guide extension assembly in place
on guide extension and secure with four hex
bolts V
2
” long and hex nuts provided in
3. Place the bag over the chute deflector and pull
draw string and lock. See figure 2.
1. Service engine with gas and oil. See engine
manual packed with shredder for complete
instructions for the care and maintenance of
engine. READ DIRECTIONS CAREFULLY.
2. When ready to start engine, place throttle
control lever in START position and start
engine in accordance with instructions in
engine manual. After engine starts, move
throttle control lever to desired engine speed.
The engine is stopped by placing control lever
in the STOP position.
____ ^CAUTION
The manufacturer recommends that
the operator wear safety glasses or
some other suitable eye protection
as it is possible for chips to be
ejected out of the inlet openings
while feeding material.
USING YOUR SHREDDER
Your shredder is designed for safe, efficient,
operation.
CARE, OF COURSE, MUST BE
EXERCISED THAT HANDS ARE KEPT AWAY
FROM ALL OPENINGS.
Your shredder guide extension is adjustable. It
may be adjusted to desired height by loosening
the hand knob as shown in figure 3.
/
GUIDE EXTENSION
FIGURE 3. GUIDE EXTENSION ADJUSTMENT
FIGURE 2.
Feed the material so that it slides down the guide
extension. See figure 4.
