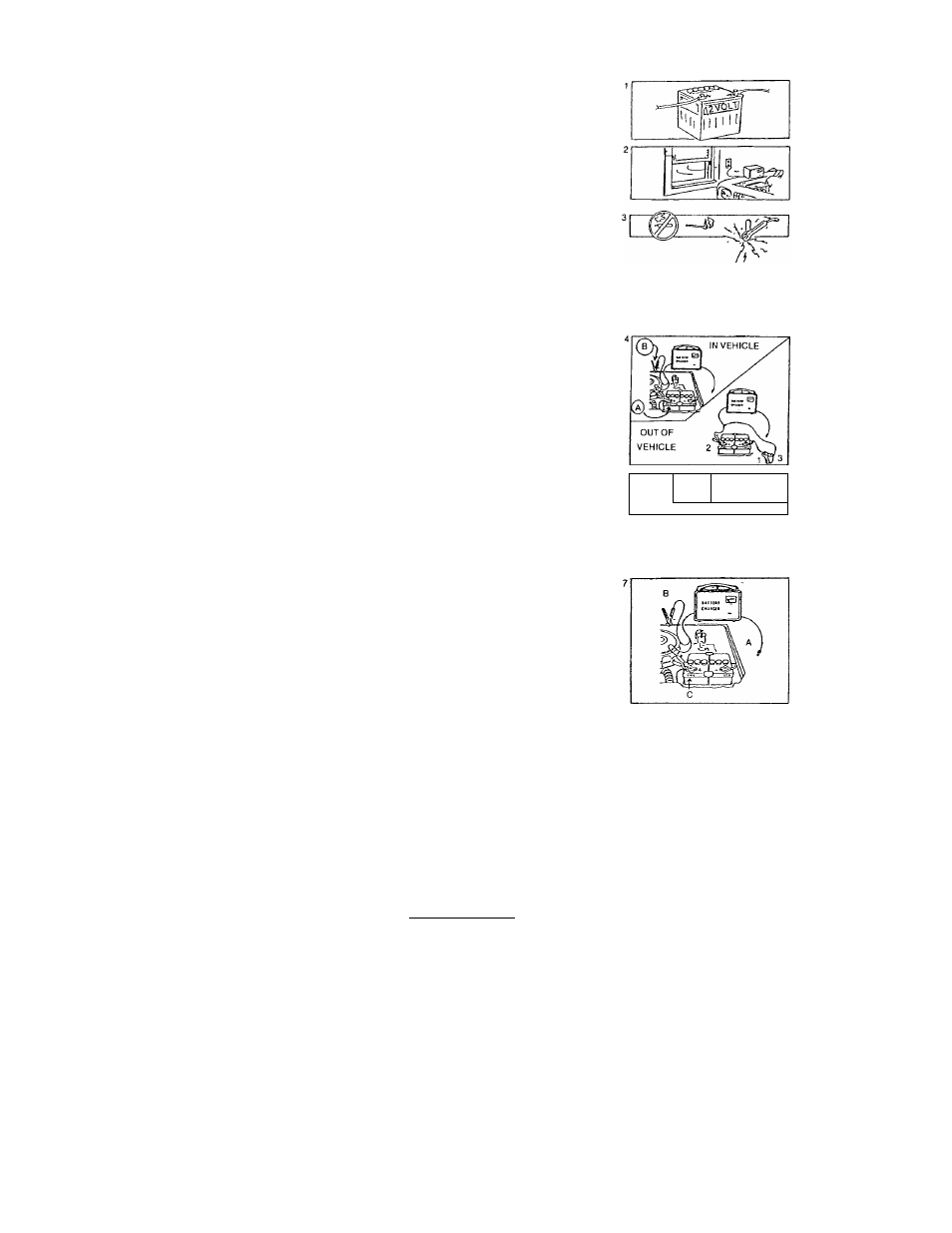

HOW TO USE YOUR BATTERY CHARGER
1. This charger is for 12 volt batteries.
2. Make sure battery is in a well-ventilated area.
3. Do not smoke, strike a match or cause any sparks in the vicinity of
the battery.
4. For a negative grounded vehicle:
a. Connect RED (-i-) clip to ( + ) terminal on battery.
b. Connect BLACK (-) clip to engine block away from battery.
Do not connect to battery terminal. (A spark near the battery
may cause battery explosion.)
When charging battery out of vehicle:
1) Connect a 24” minimum length of No. 6 gauge insulated
battery cable to negative (-) battery terminal.
2) Connect RED (-(-) clip to ( + ) terminal.
3) Connect BLACK (-) clip to jumper cable away from bat­
tery. Do not connect to battery terminal. (A spark near the
battery may cause battery explosion.)
5. Select desired charging amperage.
6. Plug the AC (input cord) into a grounded outlet.
Charger Disconnect
a) Disconnect AC (input cord).
b) Remove BLACK (-) clip.
c) Remove RED (-I-) clip.
2 AMP 10AMP
OWNERS
MANUAL
MODEL NO.
608.718571
HOW TO ORDER
REPAIR PARTS
10 A M P / 2 AMP 12 VOLT
AUTOMATIC
BATTERY CHARGER
Now that you have purchased your battery charger, should a
need ever exist for repair parts or service, simply contact any
Sears Service Center and most Sears, Roebuck and Co. stores.
Be sure to provide all pertinent facts when you call or visit.
The model number of your battery charger will be found on
the front panel.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOL­
LOWING INFORMATION:
» PART NUMBER
» MODEL NUMBER
» PART DESCRIPTION
• NAME OF ITEM
All parts listed may be ordered from any Sears Service Center
and most Sears stores.
If the parts you need are not stocked locally, your order will
be electronically transmitted to a Sears Repair Parts Distri­
bution Center for handling.
Sears, Roebuck and Company, Sears Tower, Chicago, IL 60684 A-135726 189
