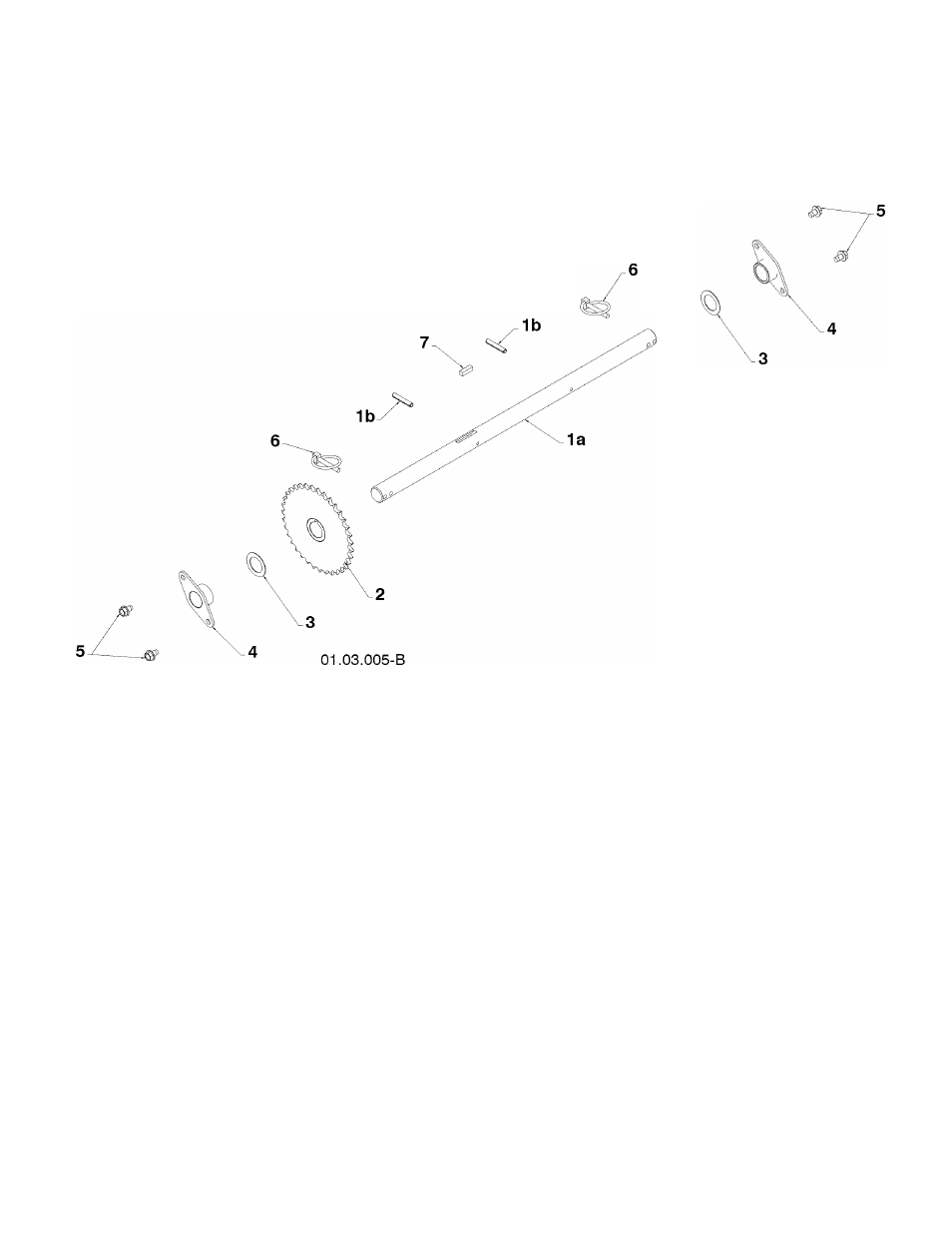

REPAIR PARTS
DRIVE
SNOW THROWER - - MODEL NUMBER 944.528117
KEY
NO.
PART
NO.
DESCRIPTION
1
188226
AXLE ASSEMBLY
1a
179352
(ASSY OF 1A,1B)
AXLE SHAFT
1b
184206
ROLL PIN 3/16
2
402691
SPROOKET
3
174697
THRUST WASHER
4
179830
BEARING
5
17490508
BOLT 5/16-18 X .500
6
155443
OLIKPIN
7
189282
SOUARE KEY
NOTE: All component dimensions given In U.S, Inches, 1 Inch = 25,4 mm
IMPORTANT: Use only Original Equipment Manufacturer (0,E,M,) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty,
