Sears 625.34855 - Manual (Page 28)

SECTION 6

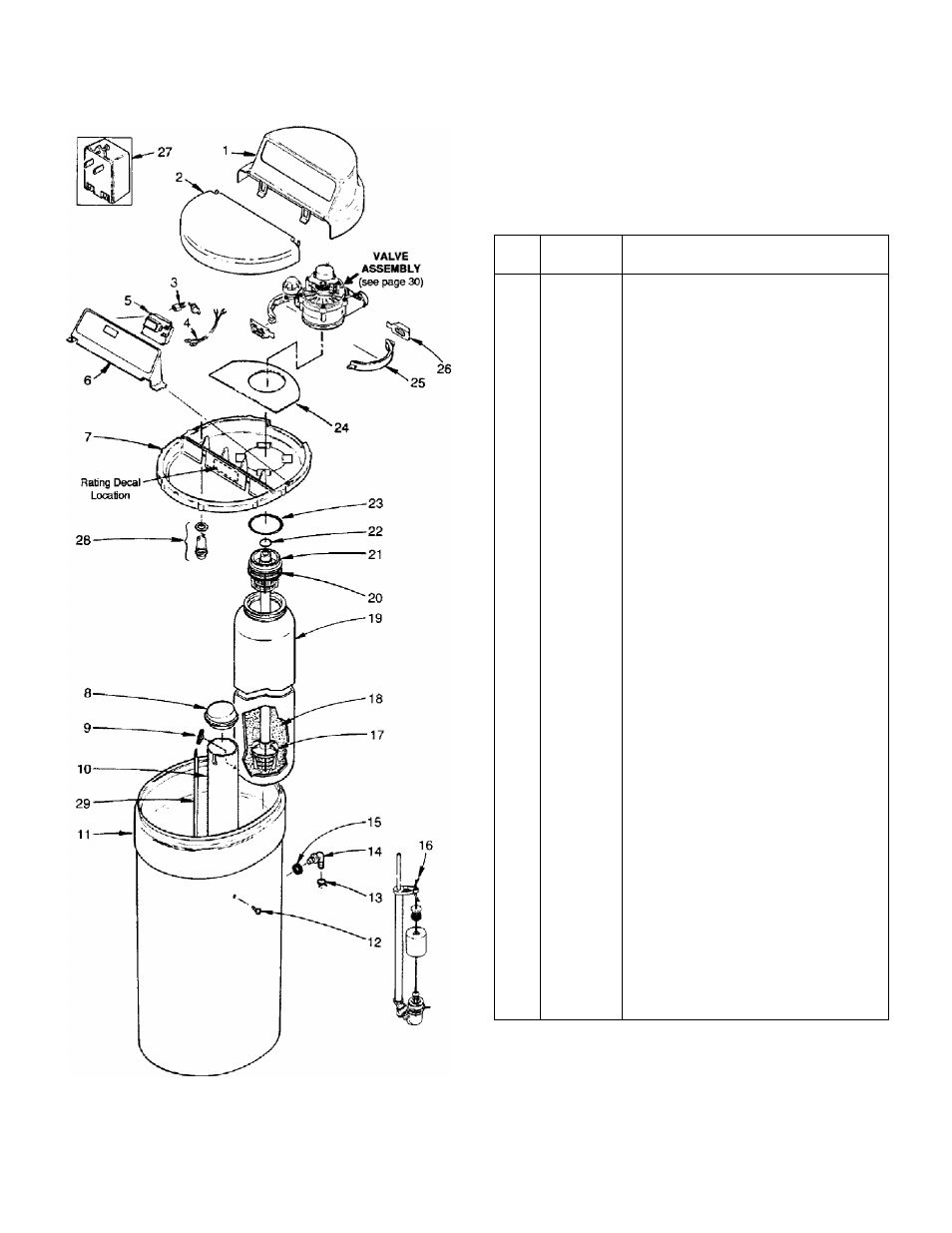

REPAIR PARTS
SEARS WATER SOFTENERS
MODEL NOS. 625.3485400
AND 625.3485500
KEY
NO.
PART
NUMBER
DESCRIPTION
1 7137604 Cover (main)
2 7137612 Salt Hole Cover
3 7118333 Wire Harness (switch)
4 7084330 Power Cord (transformer)
5 7144986 Timer Repl. (PWA)
6 7137638
7137688
7141483 Face Plate (order req'd decal)
Face Plate Decal, Mod 625.3485400
Face Plate Decal, Mod 625.3485500
7 7139486 Rim
8 7137727 Brinewell Cover
9 7143964 Wing Nut, 1/4*
10 7100819 Brinewell
11 7144619 Salt Storage Tank
12 7143956 Plastic Screw, 1/4* x 5/8*
13 0900431 Hose Clamp
14 1103200 Hose Adaptor
15 9003500 Grommet
16 7123689 Brine Valve Assy, (also see pg. 29)
17 7105047 Replacement Distributor
18 0502272 Resin
19 7144952 Resin Tank (incl. Key No. 18)
20 7096183 0-Ring, 2-3/4* x 3*
21 7077870 Top Distributor
22 0900215 0-Ring, 13/16* X 1-1/16*
23 7079092 O-Ring, 2-7/8* x 3-1/4*
24 7141001 Vapor Barrier
25 7088041 Clamp Section (2 req.)
26 7088033 Clamp Retainer (2 req.)
27 7084550 Transformer, 24V-25VA
28 7137939 Light, Salt Level
29 7137913 Decal, Salt LevelCD
♦
7141417 Installation Manual
♦ 7137573 Owners Manual
♦ not illustrated
•A Included in parts bags*
CD Aligns with top of brinwell.
see page 31.
