SECTION 4
OTHER THINGS TO KNOW
4A.
DIMENSIONS/SPECIFICATIONS

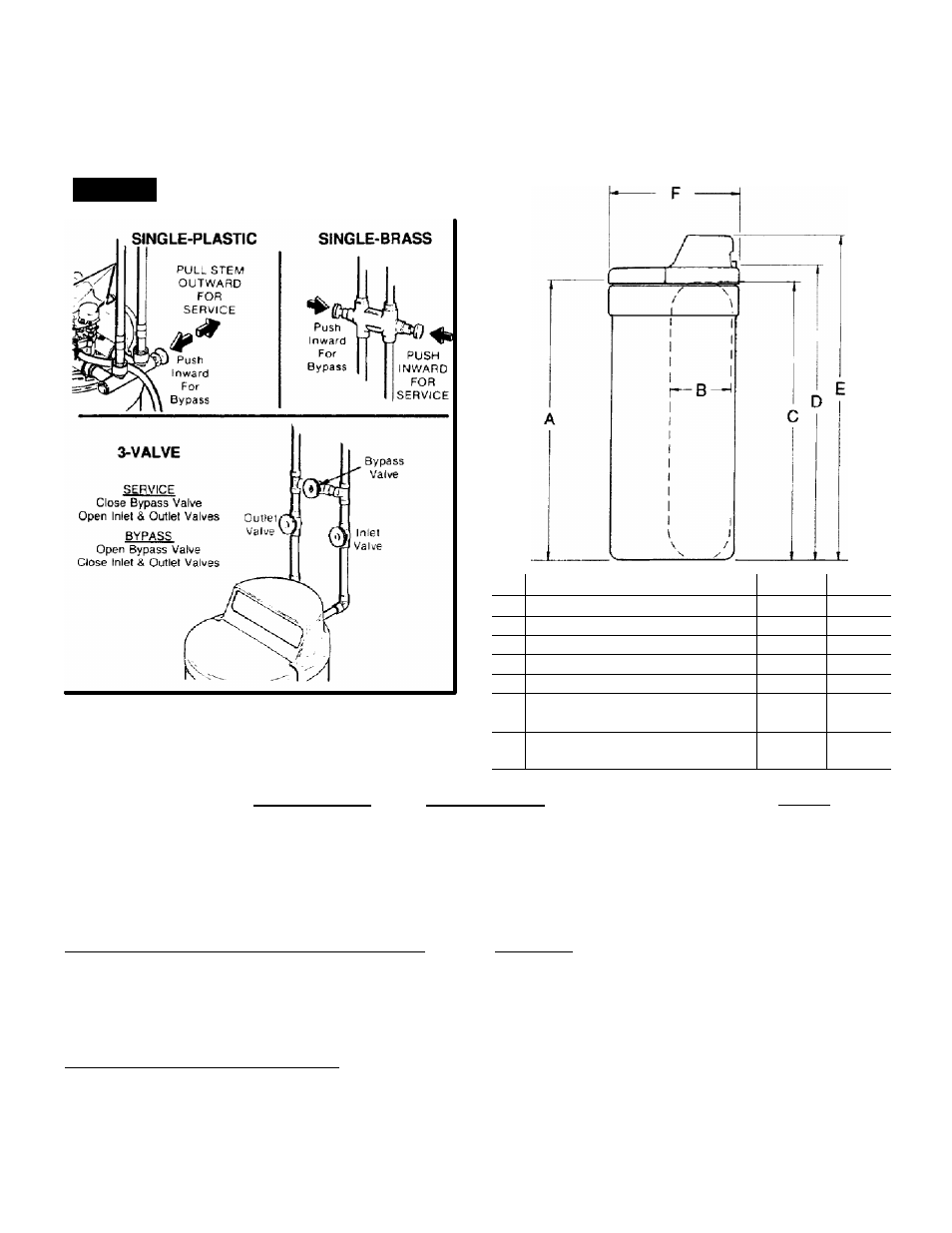

FIG. 12
BYPASS VALVES
INCHES
CM
A
Salt Tank Height
40-1/4
102.2
B
Resin Tank Diameter (nominal)
9
22.7
C
Resin Tank Height (nominal)
40
101.6
D
Inlet-Outlet Height
41-1/2
105.4
E
Overall Height
46
116.8
pi
Length
19-1/2
49.5
P2 Width
16-1/2
41.9
—
Distance between inlet-outlet
center lines
3-3/8
8.6
MODEL NO. 625.3485400 AND 625.3485500
TIMER AR CODE AR31
NOTE: Please see the rating decal for water softener operating capacity, salt usage and service flow
rate/pressure loss performance specifications. Performance specifications are validated by the Water
Quality Association (WQA). The rating decal is located on the rim, under the salt hole cover (see page
28
) .
WATER SUPPLY TO WATER SOFTENER
MINIMUM WATER SYSTEM FLOW (gpm)
3
MINIMUM-MAXIMUM WATER PRESSURE (psi)
20-120
MAXIMUM WATER TEMPERATURE (*F)
120
MAXIMUM WATER HARDNESS (gpg)
110
MAXMUM'CLEAR WATER"IRON (ppm)
8
SALT FOR WATER SOFTENER
TYPE OF SALT NEEDED
Nugget/Pellet
ALTERNATE TYPE OF SALT Pure, evaporated, compacted
water softener salt
STORAGE CAPACITY (pounds)
200
OTHERS
TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity
AMOUNT OF RESIN (cu.ft.)
1.0
REGENERATION (RECHARGE) CYCLE TIME (min.)
FILL
2.7-10.3
BRINING/BRINE RINSE
97-106
BACKWASH
7
FAST RINSE
3
TOTAL REGENERATION TIME
109.7-126.3
gpm = gallons per minute
gpg = grains per gallon
psi = pounds per square inch
ppm = parts per million
