ASSEMBLY

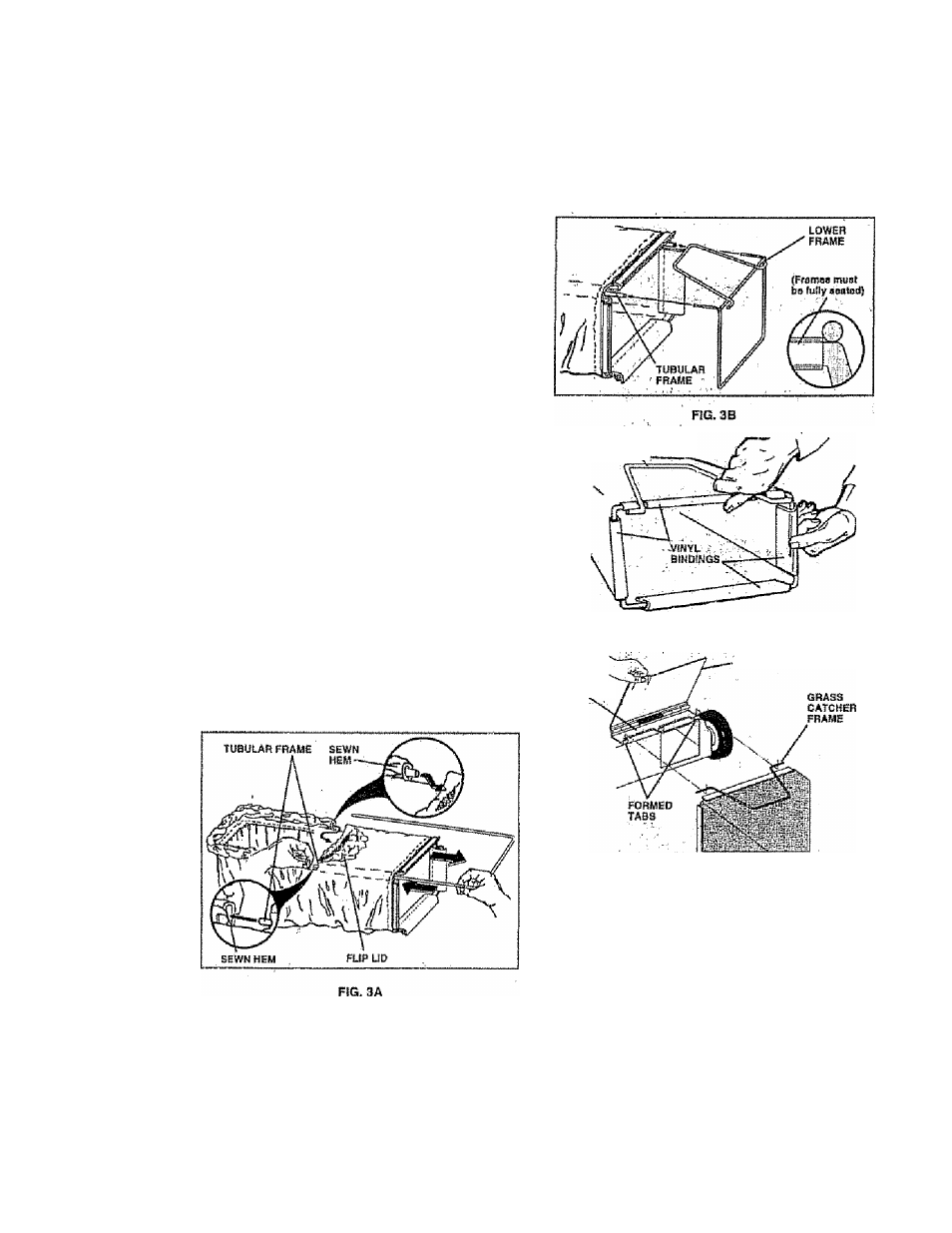

TO ASSEMBLE AND ATTACH GRASS
CATCHER (See Figs. 3A thru 4)
• Insert leg of tubular frarns through Iront opening of
grass catcher and thread frame Into sewn hem of bag.
ÑPTÉ:, Keep, bag hem gathered on the straight leg of the
tubular frame.
• When frame comas out the other end of sewn hem,
Immediately work the and of frame down inside the bag
as shown in Inset.
• Sltde sewn hem evenly around the tubular frame until
both ends of frame are exposed out of the front open-
trrg.
'
• Assemble iowar frame to tubular frame as shown. Be
sure handle Is .outside of bag and frames are fully
seated as shown (n Inset.
• Slip vinyt bindings over frame.
NOTE: It vinyl bindings are too silff, hold them in warm
water for a few mimitas. It bag gets wet, let Í! dry before
Using.
• Close the flip lid- FlipiidmustbsclosedwWIeoperating
lawrr mower
• lift the .rear door on the mower housing and place the
grass catcher frame onto the formed tabs on the rear
door hinge bracket
• The grass catcher is secured to the lawn mower
housing when the rear door is lowered onto the grass
catcher frame.'
'
A
CAUTION: Do not runyourtawri mower
without clipping deflector or approved
grass catcher in place. Never attempt
to operate the lawn mower with the rear
door removed or propped open.
lower frame HANDLi
.—X. ■■
FÍQ.3C
rear ooor
hinge ■
bracket
FIG. 4
