Sears 917.271051 - Manual (Page 42)

TRACTOR - - MODEL NUMBER 917.271051

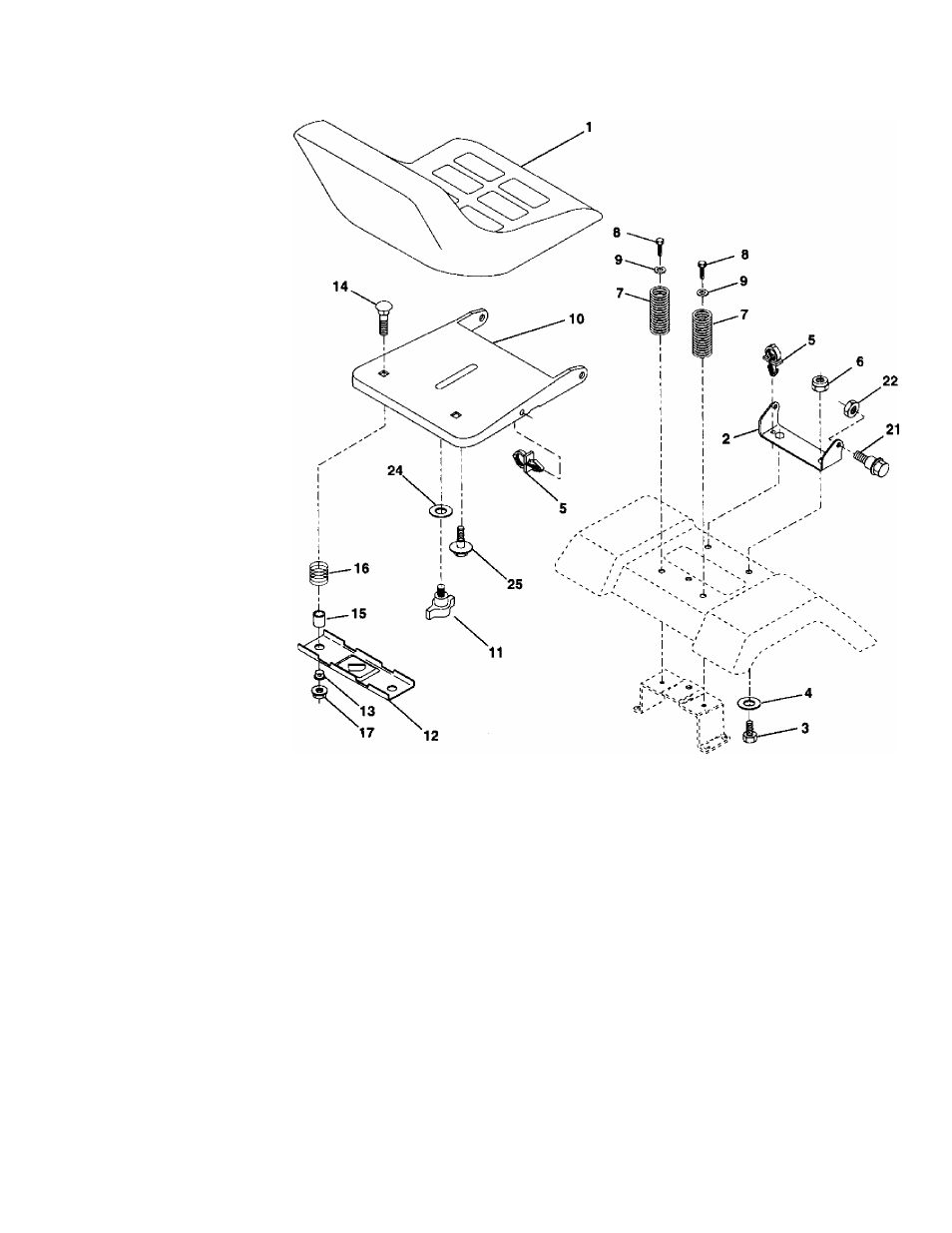

SEAT ASSEMBLY
KEY
NO. PART
NO. DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 140122 Seat 3350 BIk/bIk Craftsman 13 121248X Bushing Snap 61k Nyl 50 Id
2 140551 Bracket Pnt Pivot Seat (bik )
14 72050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2
3 71110616 Bolt Fin Hex 3/8-16unc X 1
15 134300 Spacer Split 28 X 96 Zinc
4 19131610 Washer 13/32 X 3/4 X 10 Ga 16 121250X Spring Cprsn 1 27 Bik Pnt
5 145006 Clip Push In Hinged
17 123976X Nut Lock 1/4 Lge Fig Gr 5 Zinc
6 STD541437 Nut Hex Lock w/lns 3/8-16 Unc
21 171852 Bolt Shoulder 5/16-18 Unc-2A
7 124181X Spring Seat Cprsn 2 250 BIk Zi
22 STD541431 Nut Hex Lock w/lns 5/16-18
8 17000616 Screw 3/8-16 X 1
24 19171912 Washer 17/32 X 1-3/16 X12Ga.
9 19131614 Washer 13/32 X 1 X14Ga
25 127018X Bolt Shoulder 5/16-18X62
10
11 155925
166369 Pan Pnt Seat (bik )
Knob Seat Adj Wingnut
NOTE: All component dimensions given in U.S. inches
12 121246X Bracket Pnt Mounting Switch
1 inch = 25,4 mm
42
