Sears 917.271051 - Manual (Page 31)

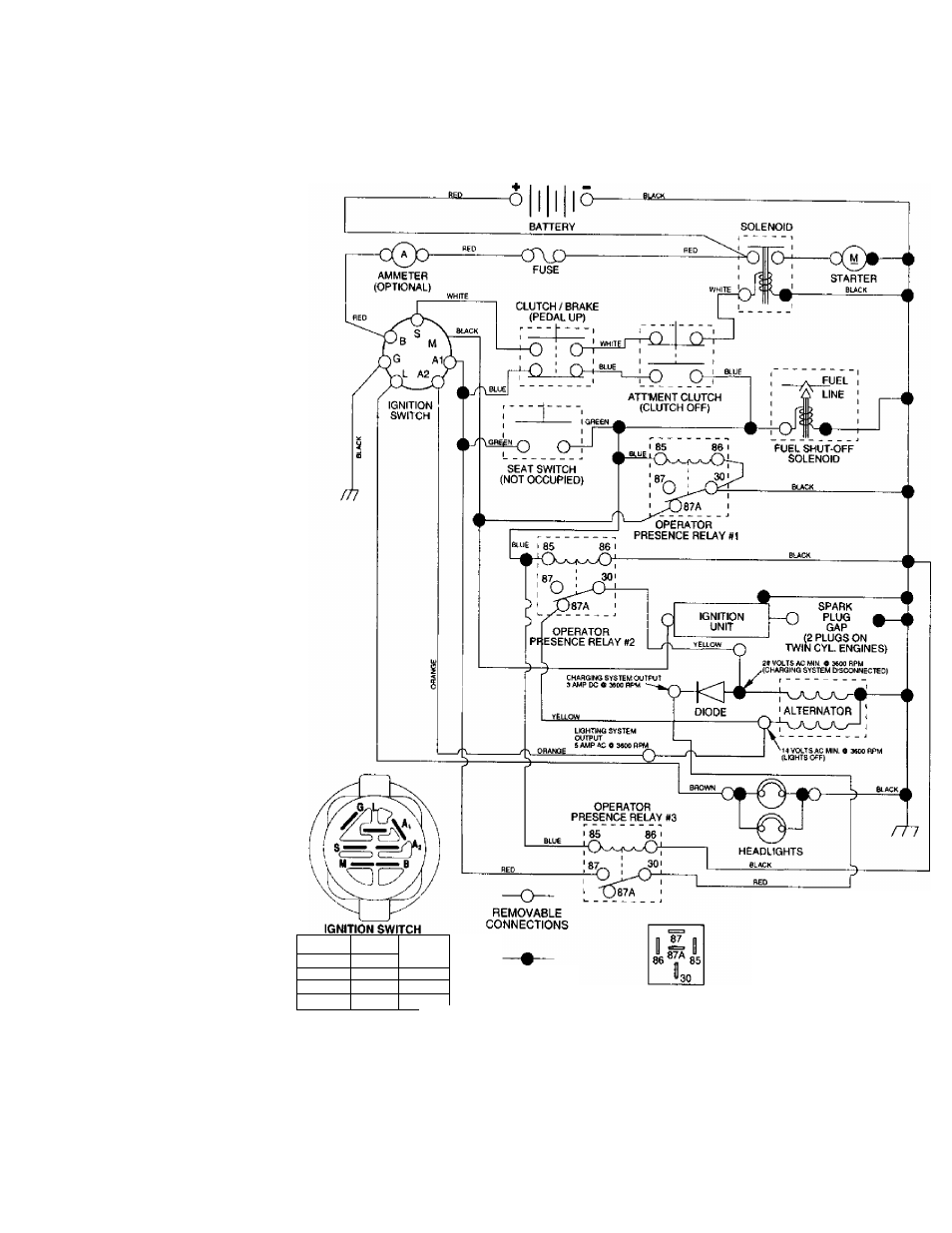

SCHEMATIC
TRACTOR - - MODEL NUMBER 917.271051
POSITION CIRCUIT "MAKE"
OFF M+G- f AI NONE
RUWLIGHT B+A1 A2+L
RUN B-t-AI NONE
START B + S 4 -AI NONE
NON-REMOVABLE
CONNECTIONS
RELAY
WIRING INSULATED CUPS
NOTE; IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING,
NOTE
YOUR TRACTOR IS EQUIPPED
WITH A SPECIAL ALTERNATOR
SYSTEM. THE LIGHTS ARE NOT
CONNECTED TO THE BATTERY,
BUT HAVE THEIR OWN
ELECTRICAL SOURCE.
BECAUSE OF THIS, THE BRIGHT­
NESS OF THE LIGHTS WILL
CHANGE WITH ENGINE SPEED.
AT IDLE THE LIGHTS WILL DIM,
AS THE ENGINE IS SPEEDED UP,
THE LIGHTS WILL BECOME
THEIR BRIGHTEST,
