SEARS CRAFTSMAN 20" ELECTRIC IVIULCHING MOWER MODEL NO. 247.370280

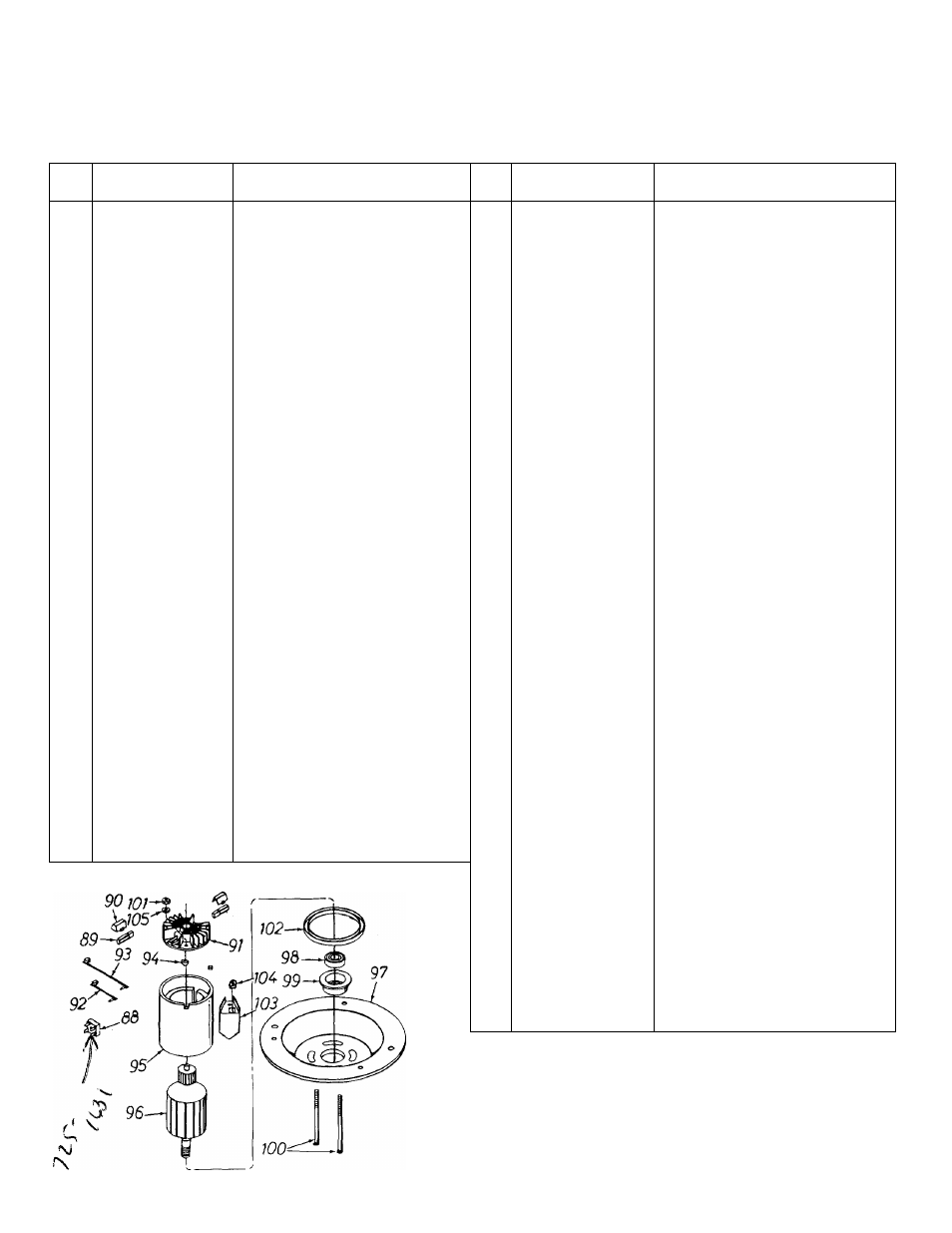

Repair Parts
KEY
NO.
PART
NO.
DESCRIPTION
1 749-0884 Upper Handle
2 747-0790 Cord Control Rod
3 725-1590 Strain Relief—Cord
4 731-1270 Fan
5 748-0356 Blade Adapter
6 738-0102 Axle Bolt
7 17098 Hinge Clip
8 731-1447 Rear Flap
9 749-0928 Lower Handle
15 738-0507B Shid. Bolt .5" Dia. x .434"
20 682-3012A Handle Brkt. Ass’y-—R-H
21 682-3011A Handle Brkt. Ass’y.—L.H.
22 710-1017 Torx. Mach. AB-Tap Scr.
1/4 X .62" Lg.
24 736-0105 Bell-Wash. .38" I.D. x .88 ' O.D.
25 736-0356 Bell-Wash. .39" I.D. x 1.33" O.D.
26 712-0798 Hex Nut 3/8-16 Thd.*
27 14832 Spring Lever Ass’y. w/Kn Db
28 15262B Pivot Bar
29 15261A Height Adj. Plate
31 682-0016 20" Deck Ass’y.
32 14578 Height Adj. Ass’y. Comp. —R.F.
& L.R.
14579 Height Adj. Ass’y. Comp. —L.F.
& R.R. (Not Shown)
33 731-1264 Motor Cover
34 710-1128 Scr. #10-16 X. 75" Lg.
35 710-1150 Self-Tap Scr. #7x1"Lg.
36 712-0241 Hex Nut 3/8-24 Thd.
37 710-1006 Hex L-Wash. TT-Tap Set. 3/8-16
X .75" Lg.
38 710-0191 Hex Bolt 3/8-24 X 1.25" Lg.
39 736-0452 Bell-Wash. .396" I.D. x 1 14"
O.D.
42 734-1781 Wheel Ass’y. Comp.
46 712-0324 Hex Top L-Nut 1/4-20 TLd.
47 726-0303 Cable Tie
48 736-0169 L-Wash. 3/8" I.D.*
49 818-60013 Motor, Cord & Switch Ass’y.
50 624-0032 Cord & Switch Ass’y. Co mp.
(See Breakdown)
KEY
NO.
PART
NO.
DESCRIPTION
53 742-0720 20" Mulching Blade
54 731-1210 Handle—Switch Actuator
55 732-0679 Spring—Switch Handle
56 725-1565 Switch
57 710-1147 Screw #6-32 X .5" Lg.
58 729-0304 Plug Ass’y.
59 732-0680 Retainer Plug Spring
60 731-1211 Retainer Plug
61 731-1198 Latch
62 624-0053 Cord Ass’y. (Incl. Ref. #58)
63 732-0681 Spring Latch
64 731-1208 Housing—Upper Half
65 731-1209 Housing—Lower Half (Not
Shown)
66 720-0226 Foam Grip
68 721-0309 Insulator Strip
69 731-1219 Insulator Shield
70 710-0597 Hex Bolt 1/4-20 x 1" Lg."”
71 736-3090 FI-Wash. .26" I.D. X .72" O.D.
72 721-0311 Insulator
73 726-0209 Cable Tie
77 710-1251 Hex Bolt 3/8-24 x 2.5" Lg.
78 720-0279 Handle Knob 1/4-20 Thd.
79 720-0241 Wing Nut Ass’y.
80 714-0104 Hairpin Clip
81 736-0451 Saddle Wash. .32" I.D.
82 731-1407 Chute Deflector
83 682-7000 Mulching Plug Ass’y.
84 710-0599 Hex Wash. Hd. TT-Tap Scr.
1/4-20 X .5" Lg.
85 736-0270 Bell-Wash. 1/4" I.D.
86 710-1174 Carr. Bolt 5/16-18x2" Lg.
87 782-7007 Handle Bracket
88 725-1602 Rectifiert
89 624-0031 Brush and Liner Ass’y.f
90 724-0200 Brush Holder Capt
91 724-0201 End Shield Brushest
92 729-0328 Red Brush Leadf
93 729-0329 Blue Brush Leadf
94 741-0875 Needle Bearingf
95
96 624-0028
624-0029 Housing Magnet Ass’y.f
Armature Ass’y.f
97 724-0194 Motor End Platef
98 741-0124 Ball Bearingf
99 748-0348 Bearing Adapterf
100 710-1176 Carriage Boltf
101 712-0324 Hex L-Nut 1/4-20 Thd.f
102 721-0306 Motor Hsg. Insulatorf
103 724-0202 Cover-Rectifierf
104 731-1207 Strain Relief Bushingf
105 736-3090 FI-Wash. .26" I.D. x .72" O.D.f
— 770-8619J Owner’s Manual
*Common Hardware—May be purchased locally.
fPart of Motor, Switch & Cord Ass’y- Comp. (Ref. 49)
