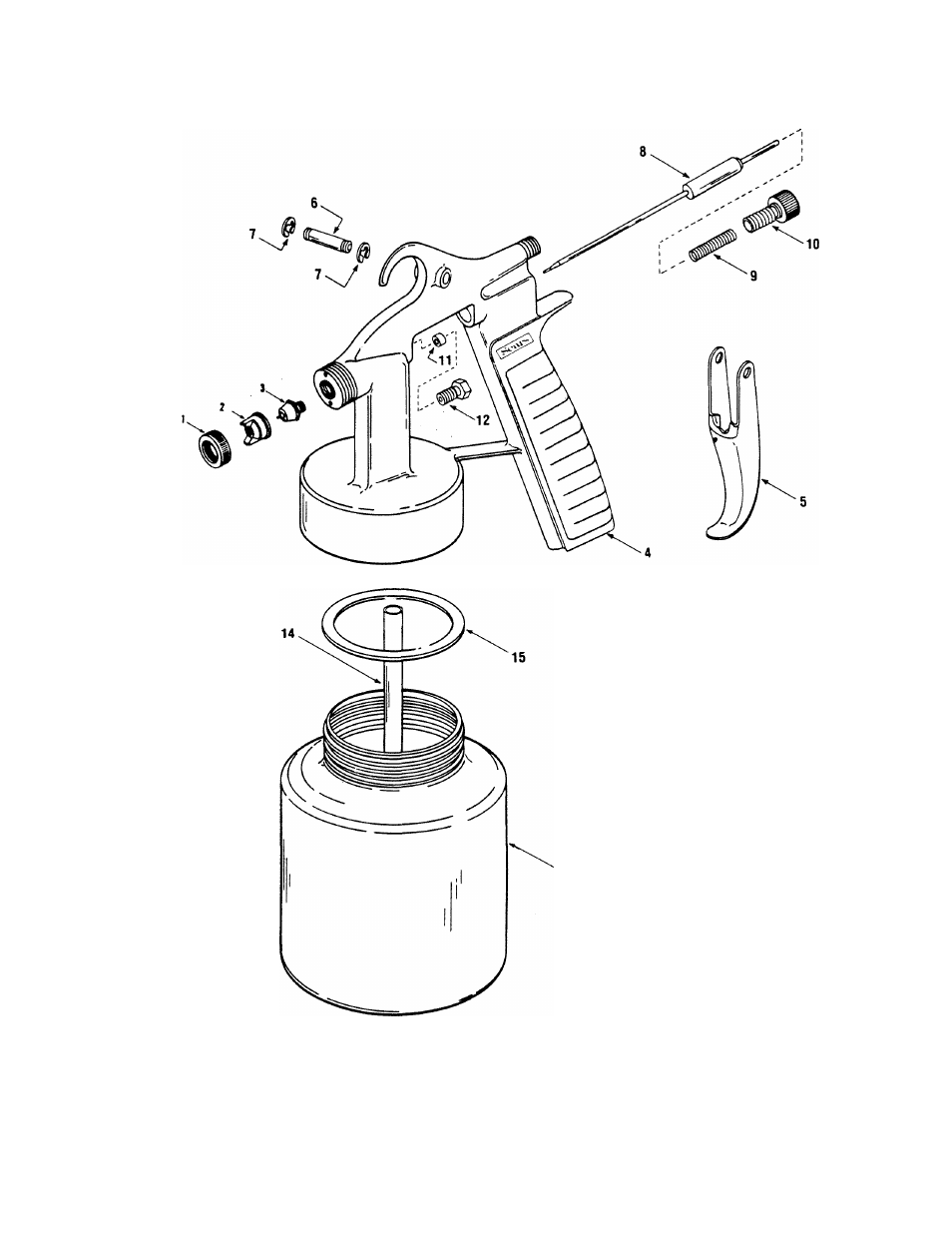

PARTS DRAWING
13
PARTS LIST
Key
Part
Description
No.
No.
1
SGE-52
Lock Ring
2
SGE-53
Air Cap
3
SGE-54
Fluid Tip
4
SGE-55
Gun Body
5
SGE-56
Trigger
6
SGE-57
Trigger Pin
7
SGE-58
Retaining Ring
8
SGE-420
Fluid Needle Assembly
9
SGE-59
Spring
10
SGE-60
Fluid Adjusting Screw
11
SGE-61
Fluid Needle Packing
12
SGE-62
Needle Packing Screw
13
SGE-63
Container -1 Qt.
14
SGE-64
Fluid Tube
15
SGE-65
Container Gasket
PARTS NOT ILLUSTRATED
Si-2-43-9
Owners Manual
