REPAIR PARTS
^ 18 HP 44" TRACTOR - MODEL NUMBER 917.257720

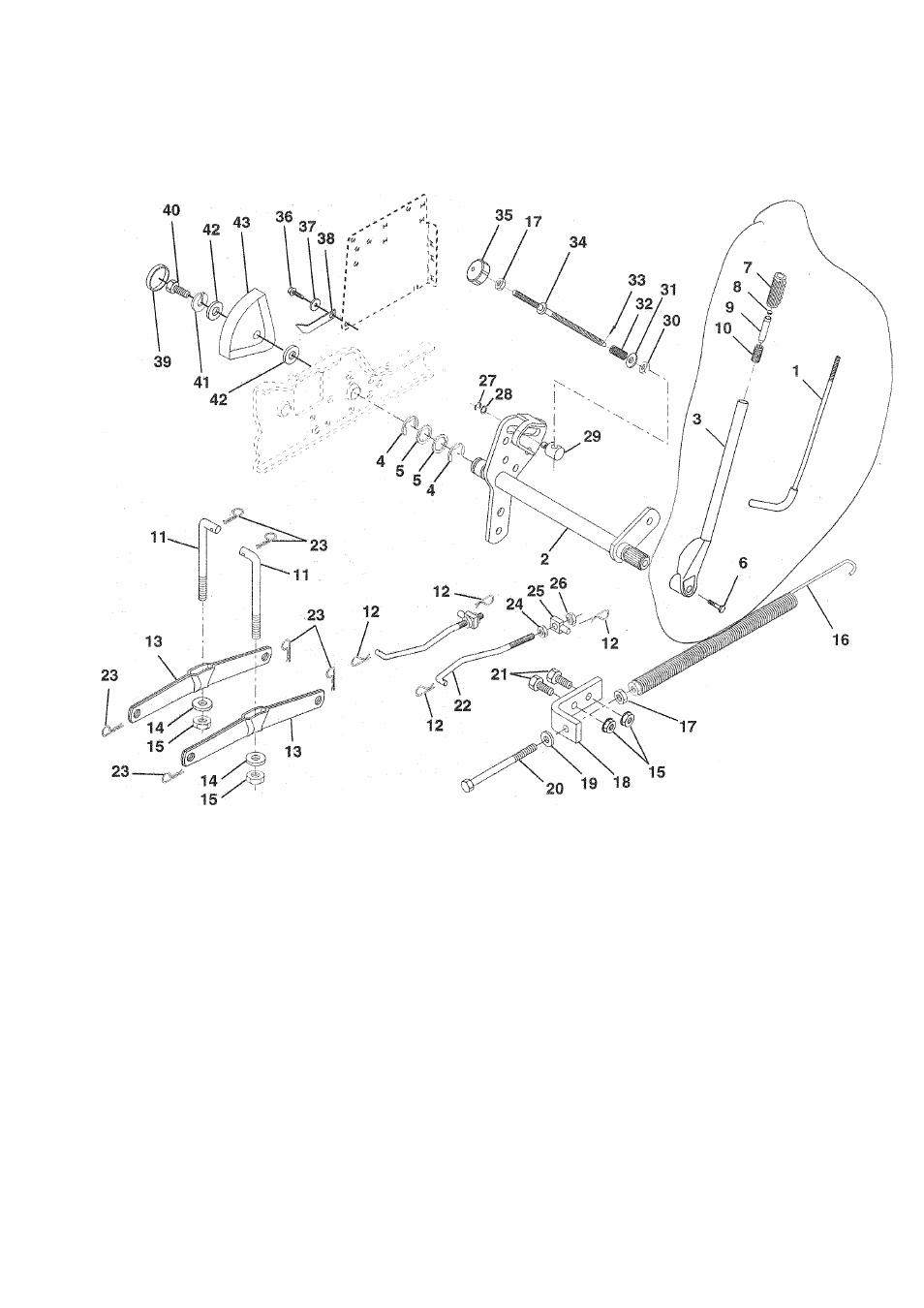

LIFT ASSEMBLY .
K EY PA R T
NO. NO.
1 121006X
2 137295
3 121002X
4 12000022
5 19292016
6 74780624
7 125631X
8 122365X
9 122364X
10 2876H
11 138020
12 3146R
13 139867
14 140302
15 73800600
16 674A247
17 73350600
18 5329J
19 19131316
20 5328J
21 74760616
22 127218
23 4939M
D ES CR IP TIO N
Rod Asm., Lever
Shaft Asm., Lift Vgt
Lever Asm., Lift
R h
E-Ring Truarc #5133-87
Washer 29/32 x 1-1/4 x 16 Ga.
Bolt, Fin Hex 3/8-16 X 1-1/2
Grip, Handle Fluted
Button, Plunger
Plunger, Lever Lift
Spring 2-1/8”
Link Lift
Retainer, Spring
Arm, Suspension Vgt
Bearing
Nut, Lock Hex W/Wsh 3/8-16 Unc
Spring Asm., Assist Lift
Nut, Hex Jam 3/8-16 Unc
Bracket, Spring Assist
Washer 13/32 x 13/16 x 16 Ga.
Bolt, Adjust Spring Assist
Bolt, Fin Hex 3/8-16 X 1
Link, Front
Retainer, Spring
KEY PA R T
NO. NO.
24 73350800
25 130171
26 73800800
27 12000037
28 19151216
29 11081 OX
30 110807X
31 19131016
32 137150
33 76020308
34 137167
35 138057
36 17490612
37 120529X
38 123933X505
39 123935X
40 74780516
41 10040500
42 19112410
43 123934X
DESCRIPTION
Nut, Jam Hex 1/2-13 Unc
Trunnion
Nut, Lock W/Wsh 1/2-13 Unc
Ring, Klip
#T5304-37
Washer 15/32 x 3/4x16 Ga.
Trunnion, Dp Stop Dbl Thds Pit
Nut, Special
Washer 13/32 x 5/8x16 Ga.
Spring, Compression Inf Hgt
Pin, Cotter 3/32 X 1/2
Rod, Ad] Lift
Knob, Inf 3/8-16 Unc
Screw, Thdroi 3/8-1 6 x 3/4
Washer, Nylon
Pointer, Pnt Height Indicator
Plug, Hole
Bolt, Fin Hex 5/16-18 X 1
Washer, Lock Hvy H id Spr 5/16
Washer 11/32 x 1-1/2 x 10 Ga.
Scale, Indicator Height
43
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
