Attach the Rail to the Header

Bracket

NOTE: (Optional) With an existing Craftsman
installation, you may re-use the old header bracket
with the two plastic spacers included in the hardware
bag. Place the spacers inside the bracket on each
side of the rail, as illustrated.

• Position the opener on the garage floor below the

header bracket. Use packing material as a
protective base.

NOTE: If the door spring is in the

way you’ll need help. Have someone hold the

opener securely on a temporary support to allow
the rail to clear the spring.

• Position the front rail end within the header bracket

and join with a 5/16"x1-1/2" clevis pin as shown.

• Insert a ring fastener to secure.

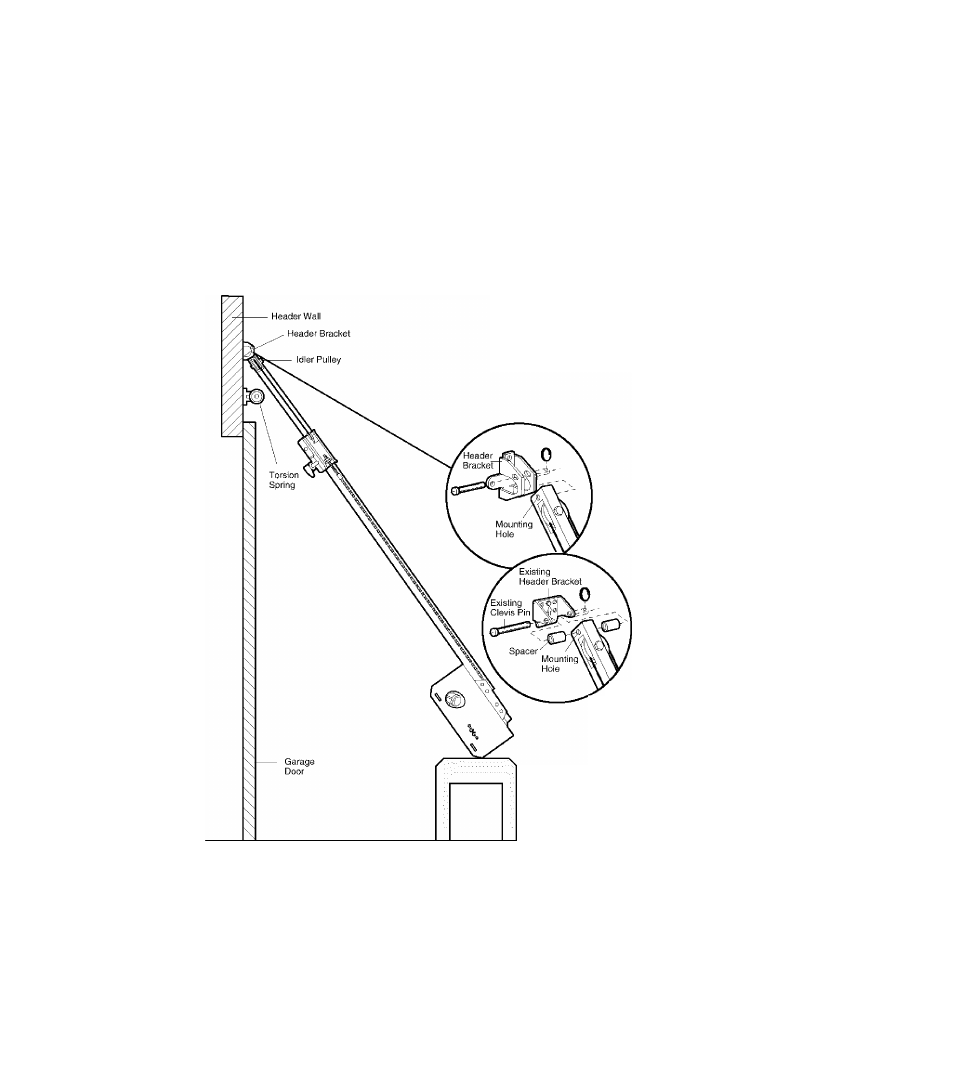

INSTALLATION STEP 3

OPTION WITH
EXISTING CRAFTSMAN

INSTALLATION

Opener Carton or

Temporary

Support

HARDWARE SHOWN ACTUAL SIZE

Clevis Pln5/16">i1-1/2"

Ring fastener
