www.desatech.com 111161-01D 17
INSTALLATION
Continued
INSTALLING LOGS
WARNING: Failure to posi-
tion the parts in accordance with
these diagrams or failure to use
only parts specifically approved
with this heater may result in
property damage or personal
injury.
CAUTION: After installation
and periodically thereafter,
check to ensure that no flame
comes in contact with any log.
With the heater set to HI, check
to see if flames contact any log.
If so, reposition logs according
to the log installation instruc-
tions in this manual. Flames con-
tacting logs will create soot.
Each log is marked with a number. These num-
bers will help you identify the log when install-
ing. It is very important to install these logs ex-
actly as instructed. Do not modify logs. Only use
logs supplied with heater.
1. Place the front log (#1) on the grate fingers.
Make sure the front log rests firmly between
the grate fingers and the grate base (see Fig-
ure 24).
2. Place the base of the middle log (#2) in the U-
shaped slots of the grate base. The cutout on
the right of the middle log should fit over the
burner (see Figure 25). Make sure the front of
the middle log is resting on the tabs of the
grate base.
3. Locate pegs on the bottom of back log (#3).
Slide these pegs into the holes in the grate base
behind the burner (see Figure 26).
4. Locate pegs on the bottom of crossover log
(#4). Slide these pegs into the holes located
in middle log (#2) and back log (#3). See Fig-
ure 27, page 18, for placement.
AUT O OF F ON

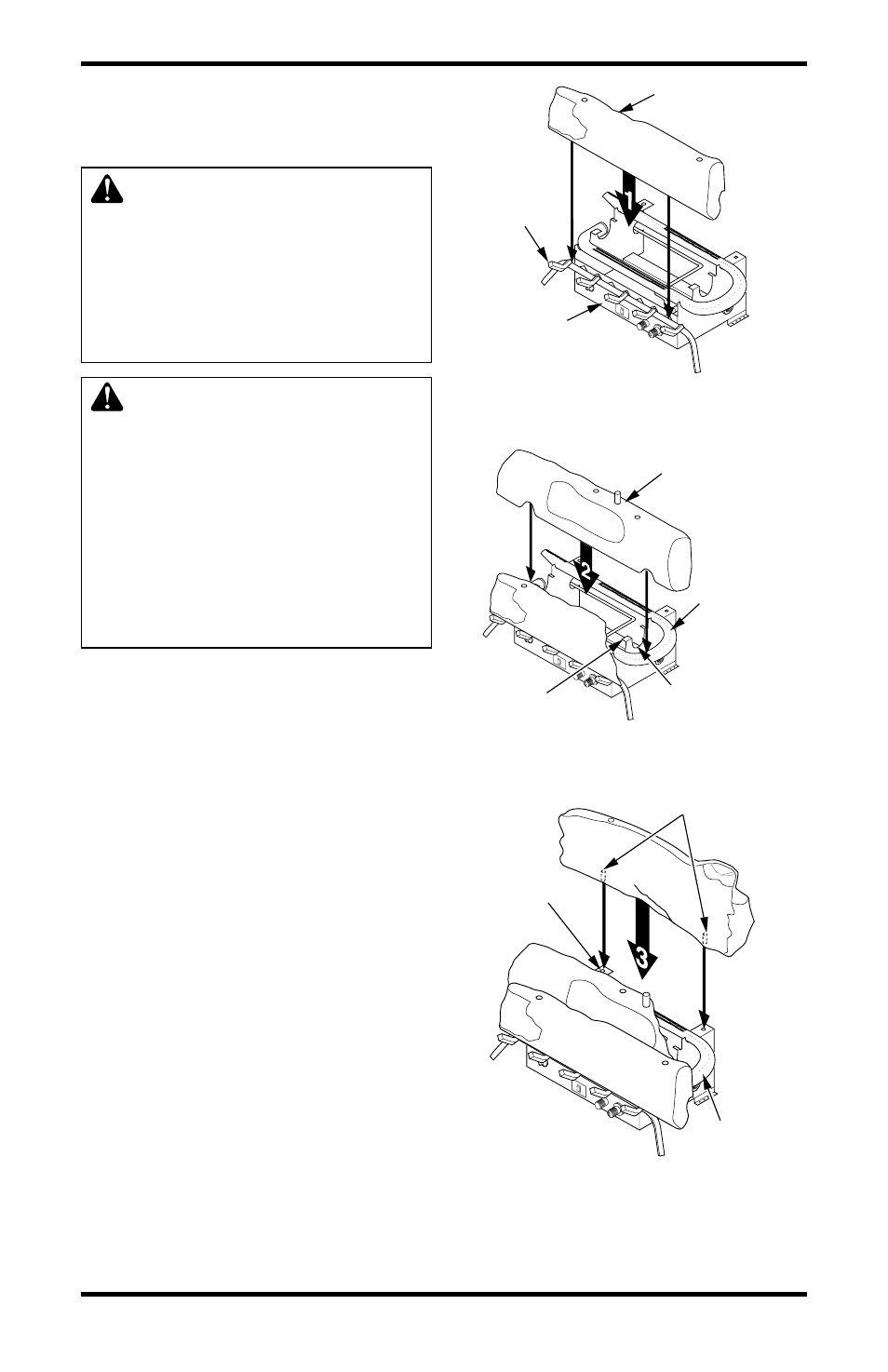

Figure 24 - Installing Front Log (#1)
(CCL3930PR/NR Shown)
Front Log
(#1)
Grate
Fingers
Grate
Base
AUT O OFF ON
Figure 25 - Installing Middle Log (#2)
(CCL3930PR/NR Shown)
Middle Log (#2)
Tab
Burner
U-Shaped
Slot
AUT O OF F ON
Figure 26 - Installing Rear Log (#3)
(CCL3930PR/NR Shown)
Hole in
Grate
Base
Pegs
Burner
