Crestron DIN-HUB DIN Rail Cresnet
®
Distribution Hub
Hardware Hookup
Make the necessary connections as called out in the illustration that
follows this paragraph. Refer to “Network Wiring” on page 9 before
attaching the 4-position terminal block connector. Apply power after all
connections have been made.
When making connections to the DIN-HUB, use a Crestron power
supply.

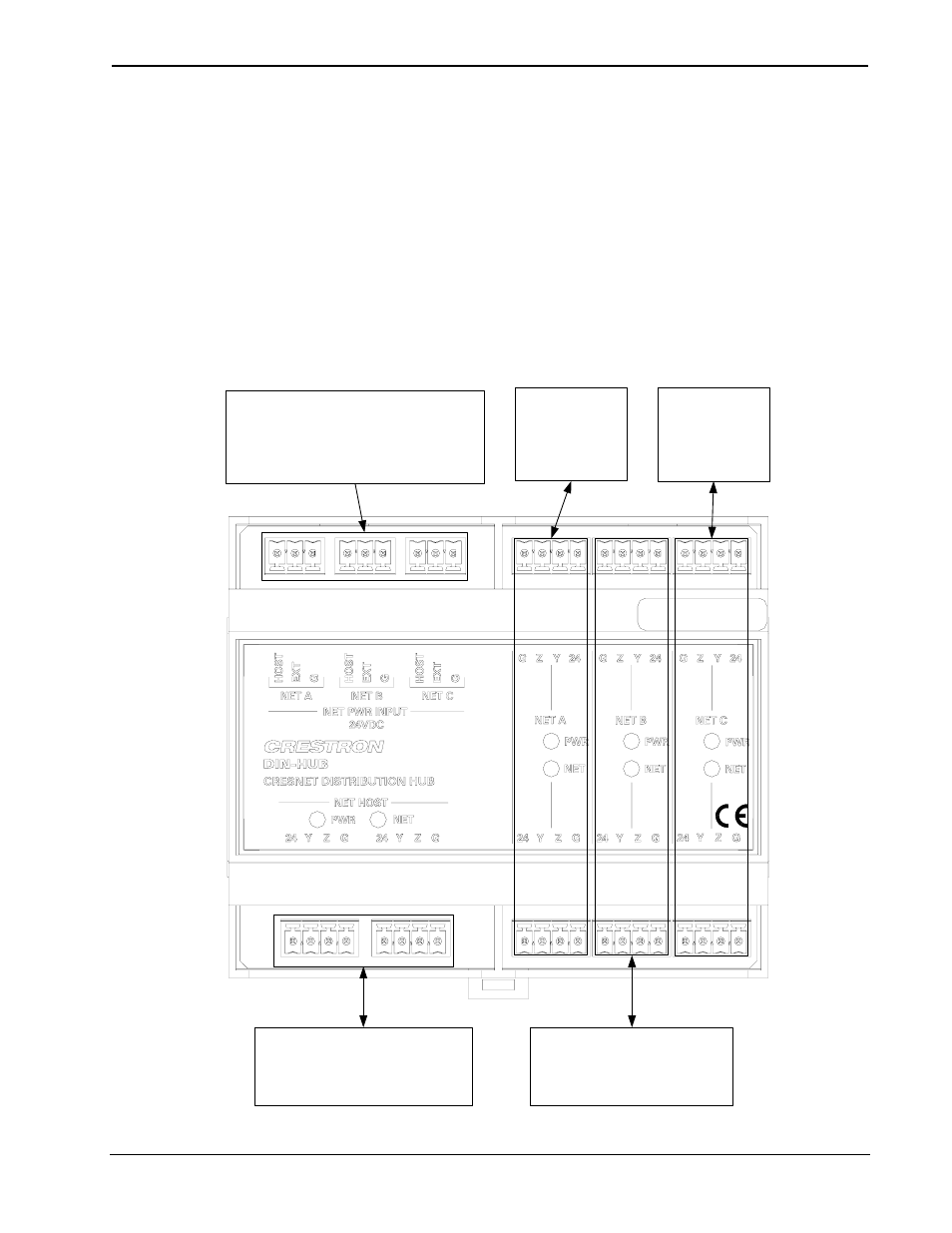

Hardware Connections for the DIN-HUB
NET:
TO CONTROL SYSTEM AND
OTHER CRESNET DEVICES
NET PWR INPUT:
24 VDC JUMPERED FROM NET
HOST PORT or EXTERNAL
SUPPLY. EACH PORT PROVIDES
POWER TO A SEGMENT
NET B:
CONNECT TO CRESNET
DEVICES ON SEGMENT B
NET A:
CONNECT TO
CRESNET
DEVICES ON
SEGMENT A
NET C:
CONNECT TO
CRESNET
DEVICES ON
SEGMENT C
Operations & Installation Guide – DOC. 6671A DIN Rail Cresnet Hub: DIN-HUB
• 11
