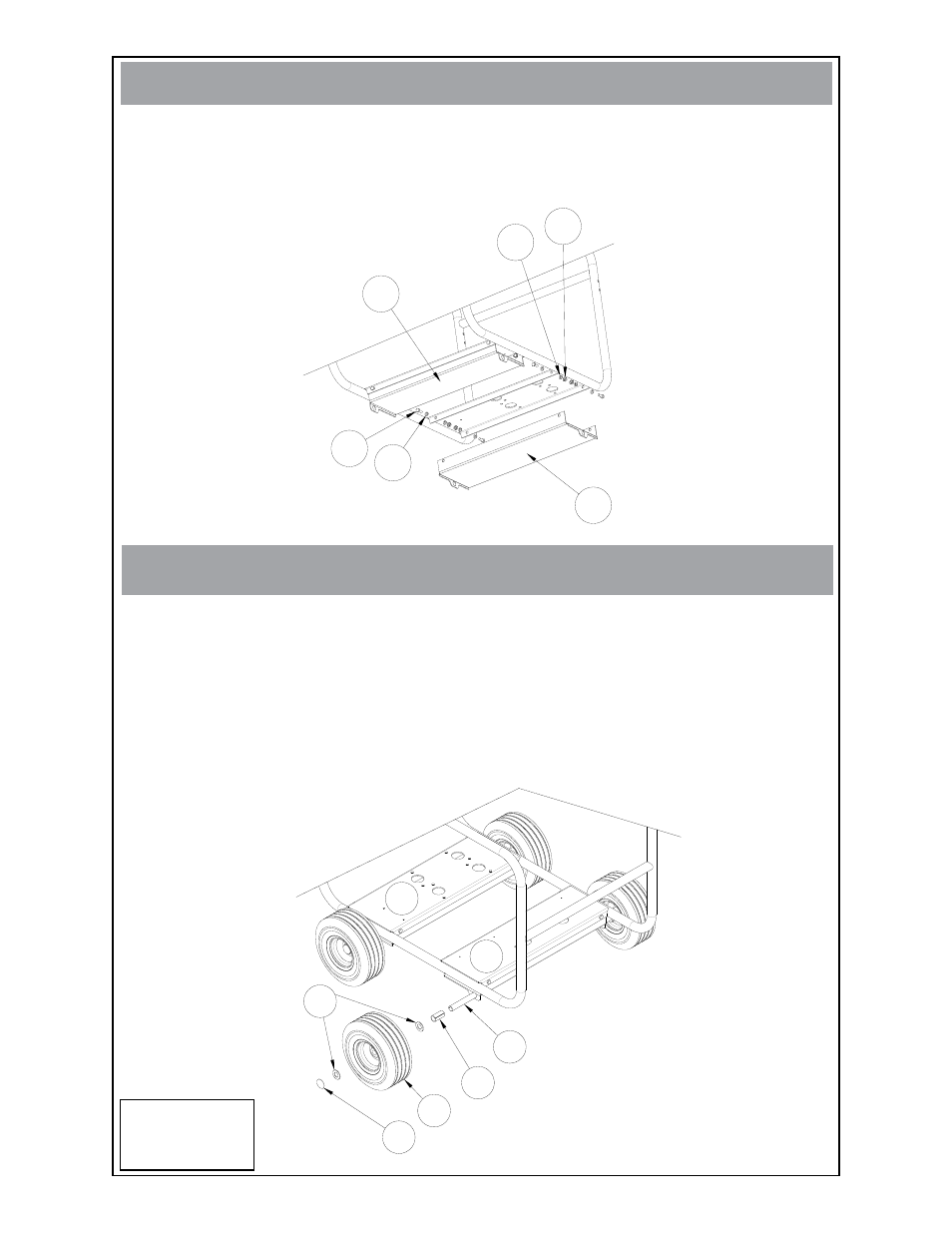

STEP 4

STEP 5

Place spacer (ref. 5), washer (ref. 2), wheel (ref. 6), washer (ref. 2) on the axle.

Then tab the hubcap (ref. 3) on the axle. Then slide assembly through rear axle

bracket. (ref. 4) Place other spacer, washer, wheel, washer and hubcap on axle.

Slide washer (ref. 2), wheel (ref. 6), washer (ref. 2) and spacer (ref. 5) onto

axle (ref. 5). Slide the assembly through the front axle bracket (ref. 3) and lower

the unit to the ground. Place other spacer, washer, wheel and washer on axle.

Tap the last hubcap on the axle. NOTE: Do not tap too hard as you may dent the

hubcaps.

•

Winco Inc.

Service Dept.

507-357-683

Bolt Front Axle Bracket (ref.3) on the engine end of the cradle and Rear Axle

Bracket (ref.4) to the generator end of the cradle using hardware (ref. 7, 2, 8,

9). Make sure the axle brackets are on the inside of the cradle cross-members.

The flat washers (ref. 2) go onto the bolts (ref. 7) first.

•

GENERATOR

END
