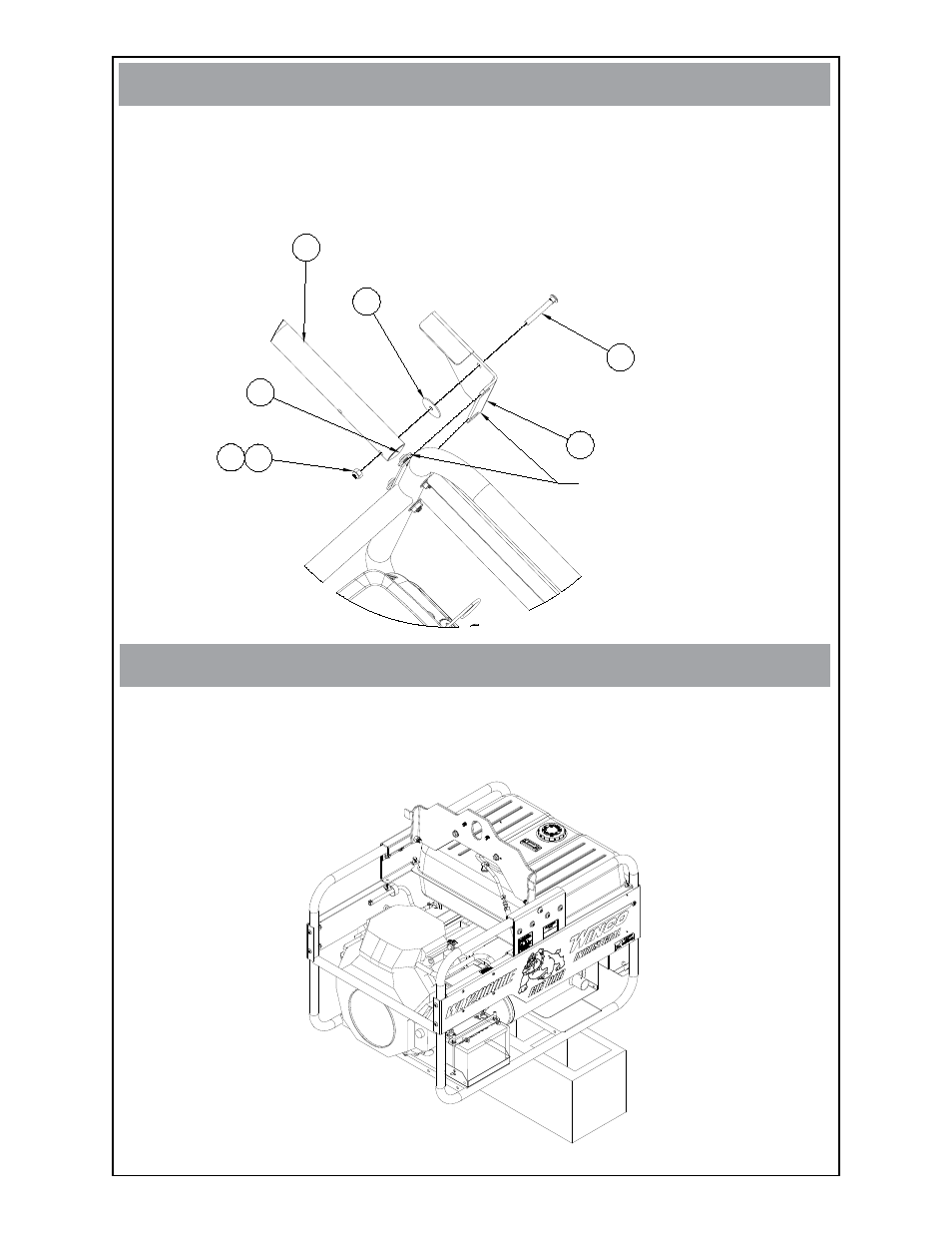

Remove the generator from the pallet and block generator up 8 to 0 inches to
gain access to the bottom of the cradle assembly. A lifting jack or hoist may also
be used if available.
•
STEP 2
STEP 3
Cut the foam strip (ref. 20) in half using a scissors. Apply to the underside of the
handle supports (ref. & 2). Insert hole plugs (ref. 6) into the ends of the handle.
Bolt left and right handle supports (ref. & 2) to the cradle using hardware on the
cradle. Attach handle (ref. 7) using hardware (ref. 9, 0, , 4). Do not over-
tighten so that the handle will move freely.
•
•
LOOSEN BOLTS TO CREATE
A GAP BETWEEN THE SIDE
RAIL AND WASHER. THEN
SLIDE HANDLE BRACKET IN
BETWEEN AND RETIGHTEN
BOLTS.
7
9
2
10
16
14
11
