Winco 4-Wheel Dolly Kit Assembly Instructions for WL12000HE, WL18000VE, HPS12000HE/F (2013) - Manual (Page 2)

2 3028-02 699-024I

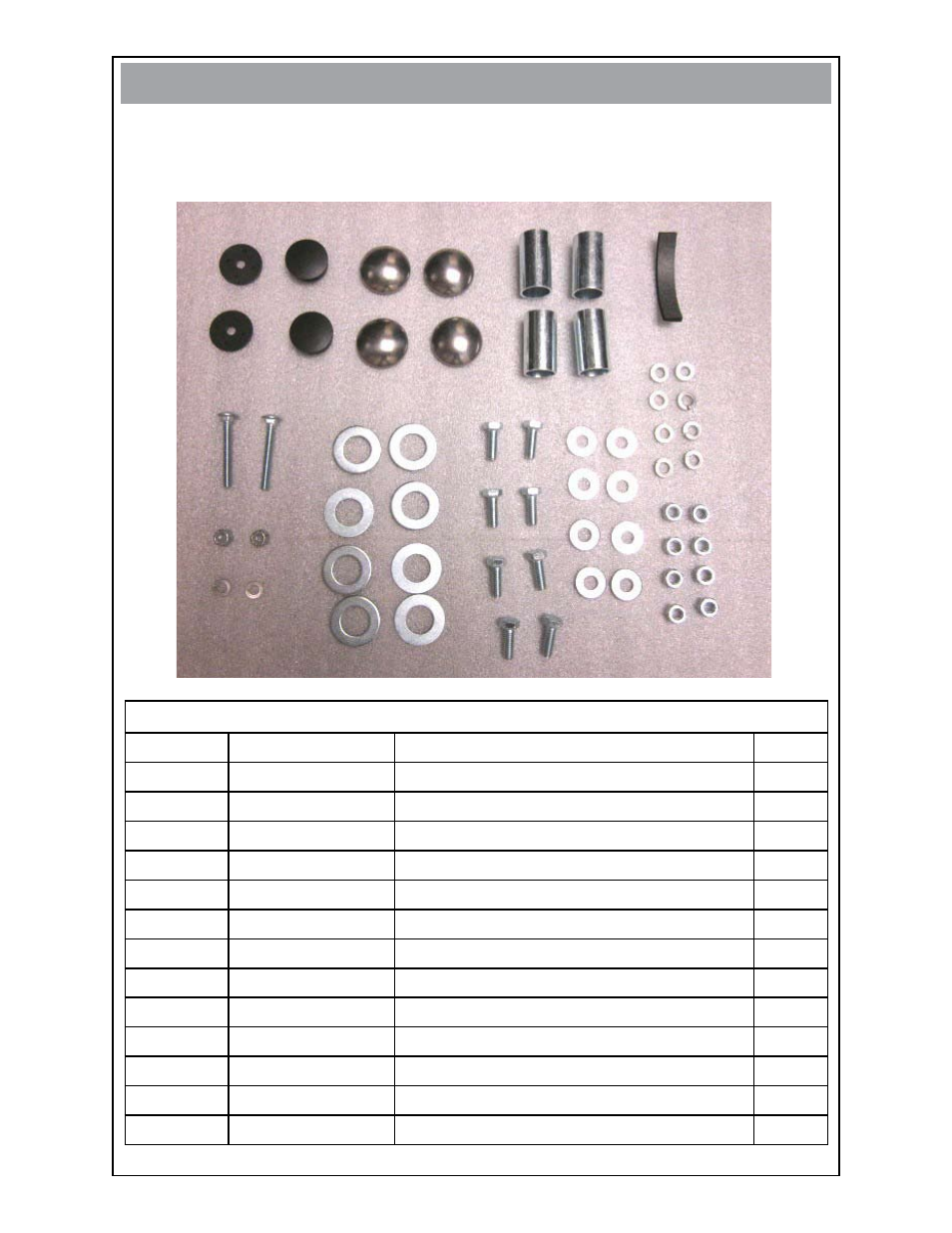

Open hardware bag and separate components.
FASTENERS & MISC. COMPONENTS
(not shown in actual size)
•
STEP 1
HARDWARE & FASTENER LIST
REF # PART # DESCRIPTION QTY
9 56842-005 /4” X 2“ Carriage Bolt 2
0 479-000 /4“ Split Lock Washer 2
4757-000 /4” Nylock Nut 2
2 78-000 Flat Washer 8
3 64327-000 Hub Cap 4
4 96286-006 Nylon Flat Washer 2
5 64688-007 Spacer 4
6 93402-002 Hole Plug 2
7 465-000 5/6” X 7/8” Bolt 8
8 458-000 5/6” Nut 8
9 480-000 5/6” Split Lock Washer 8
20 6292-000 Foam Strip
2 526-000 Flat Washer 8
14
16 13
15
20
19
18
21
9
11
10
12 17
