STEP 4
STEP 5
Remove and discard axle protectors (ref. 6). Tap one hubcap (ref.11) onto axle
(ref. 5) using a rubber mallet. Slide washer (ref. 12), wheel (ref. 1), washer (ref.
12) and axle stub (ref. 10) onto axle (ref. 5). Then slide one assembly through
axle bracket. Place other spacer, washer, wheel and washer on axle. Repeat for
the other axle bracket.
Remove the blocks from under the cradle.
Tap the last two hubcaps (ref. 11) on the axles. NOTE: Do not tap too hard as you
may dent the hubcaps. •
•
•
Winco Inc.
Service Dept.
507-357-6831

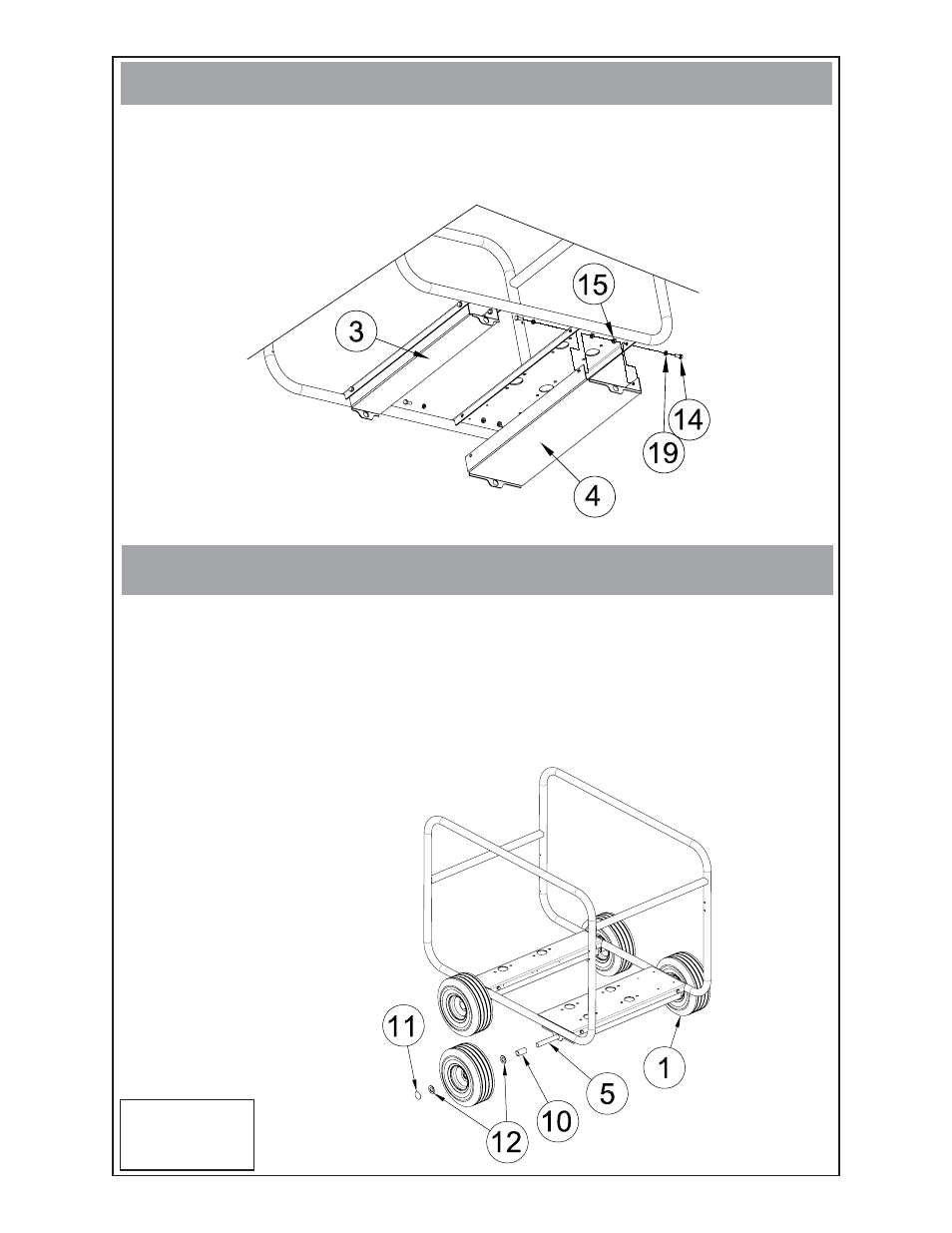

Bolt axle bracket (ref.3) on the generator end of the cradle and axle bracket (ref.4)
to the engine end of the cradle using hardware (ref. 14, 19, 15). Make sure the
axle brackets are on the inside of the cradle cross-members. •
GENERATOR END
OF CRADLE
