2 12111-00 16199-010I

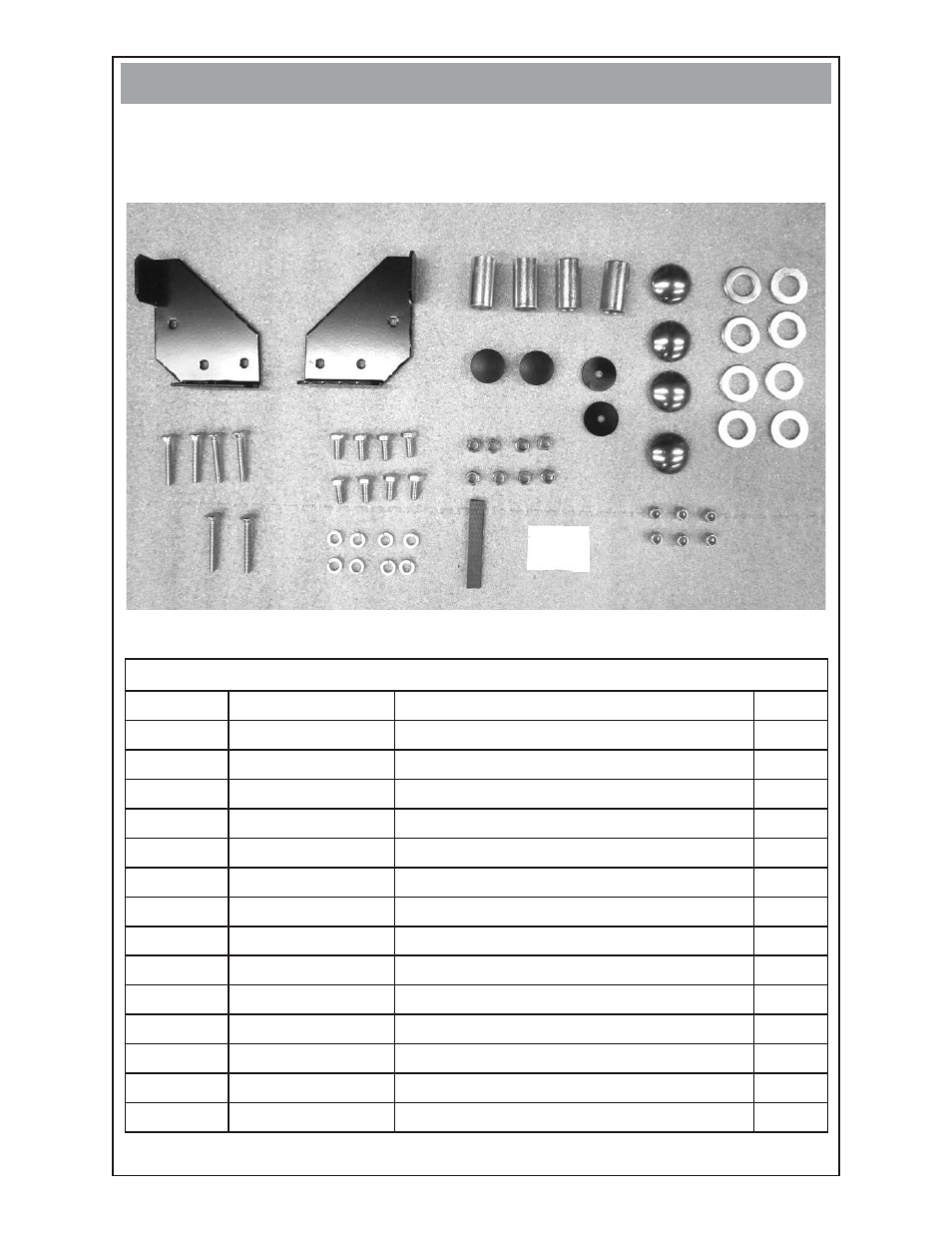

Open hardware bag and account for all hardware and fasteners.
FASTENERS & MISC. COMPONENTS
(not shown in actual size)
•
STEP 1
HARDWARE & FASTENER LIST
REF # PART # DESCRIPTION QTY
8 300066-3S Right Handle Support 1
9 300066-4S Left Handle Support 1
10 64688-007 Axle Stub 4
11 64327-000 Hubcap 4
12 1178-000 Flat Washer 8
13 56842-004 1/4” - 20 X 1 3/4” Bolt 4
14 467-000 5/16” - 18 X 3/4” Bolt 8
15 458-000 5/16” Nut 8
16 93402-002 Hole Plug 2
17 96286-006 Nylon Washer 2
18 56842-005 1/4” - 20 X 2” Bolt 2
19 480-000 5/16” Split Lock Washer 8
20 62912-000 Foam Strip 1
21 47517-000 1/4” Nylock Nut 6
8
10 11
12
13
19
14
20
15
21
18
16 17
9
