Step 2 step 3 – Winco 4-Wheel Dolly Kit Assembly Instructions for WL18000VE User Manual
Page 3

3
12111-00
16199-010I

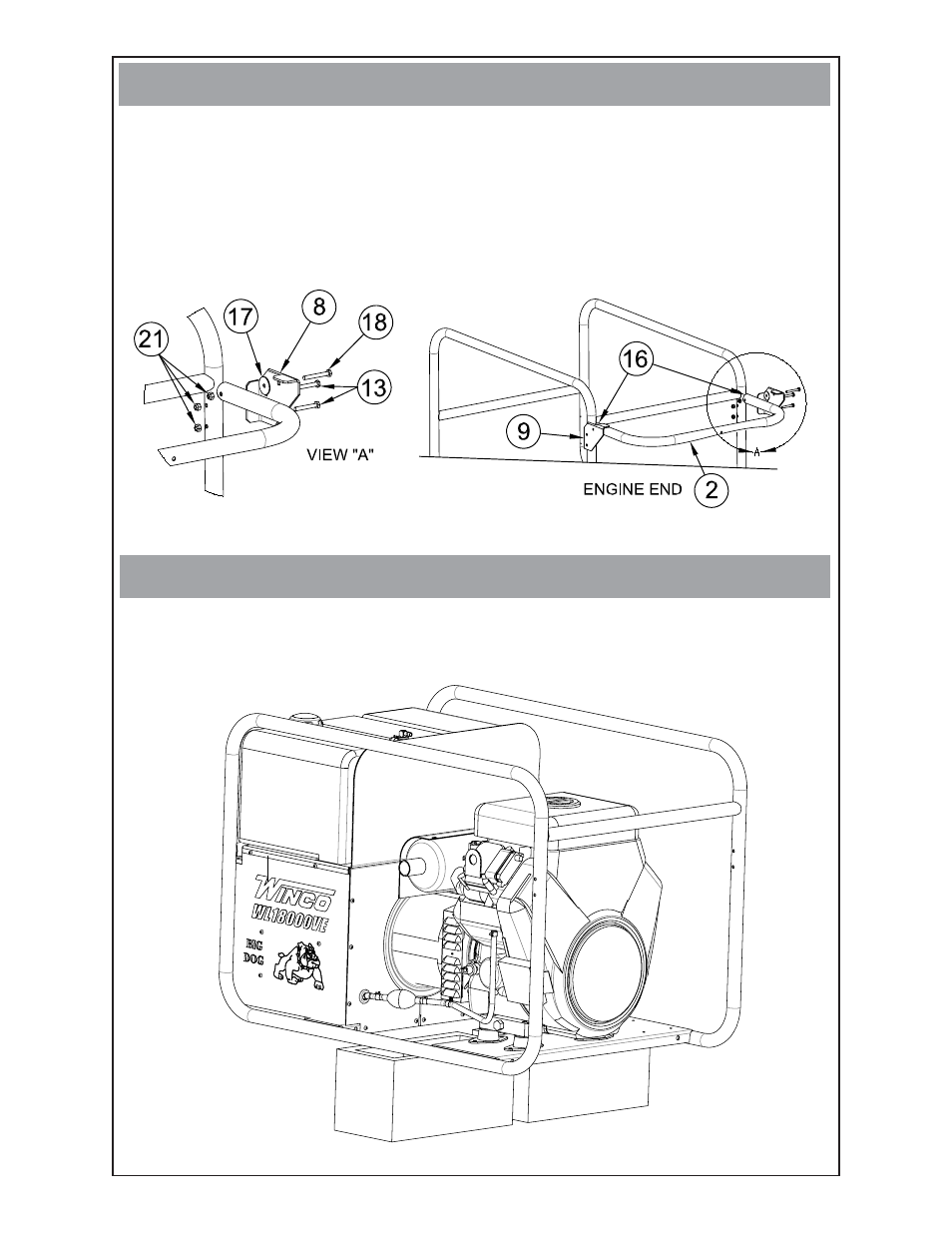

Remove the generator from the pallet or box and block generator up 8 to 10 inch-
es to gain access to the bottom of the cradle assembly. A lifting jack or hoist may
also be used if available.
•
STEP 2
STEP 3
Cut the foam strip (ref. 20) in half using a scissors. Apply to the underside of the
handle supports (ref. 8 & 9). Insert hole plugs (ref. 16) into the ends of the handle.
Bolt left and right handle supports (ref. 8 & 9) to the cradle using hardware (ref. 13,
21). Place the nylon fl at washer (ref. 17) between the handle supports and handle
then attach handle (ref. 2) using hardware (ref. 18, 21). Tighten the nylock nuts
(ref. 21). Do not over-tighten such that the handle will move freely.
•
•
