STEP 4
STEP 5
Remove and discard axle protectors (ref. 8). Tap one hubcap (ref.14) onto axle
(ref. 5) using a rubber mallet. Slide washer (ref. 13), wheel (ref. 6), washer (ref.
13) and spacer (ref. 16) onto axle (ref. 5). Then slide assembly through rear axle
bracket. (ref. 4) Place other spacer, washer, wheel, washer and hubcap on axle.
Slide washer (ref. 13), wheel (ref. 6), washer (ref. 13) and spacer (ref. 16) onto
axle (ref. 5). Slide the assembly through the front axle bracket (ref. 3) and lower
the unit to the ground. Place other spacer, washer, wheel and washer on axle.
Tap the last hubcap on the axle. NOTE: Do not tap too hard as you may dent the
hubcaps. •
•
WL12000HE
CRADLE SHOWN
HERE
Winco Inc.
Service Dept.
507-357-6831

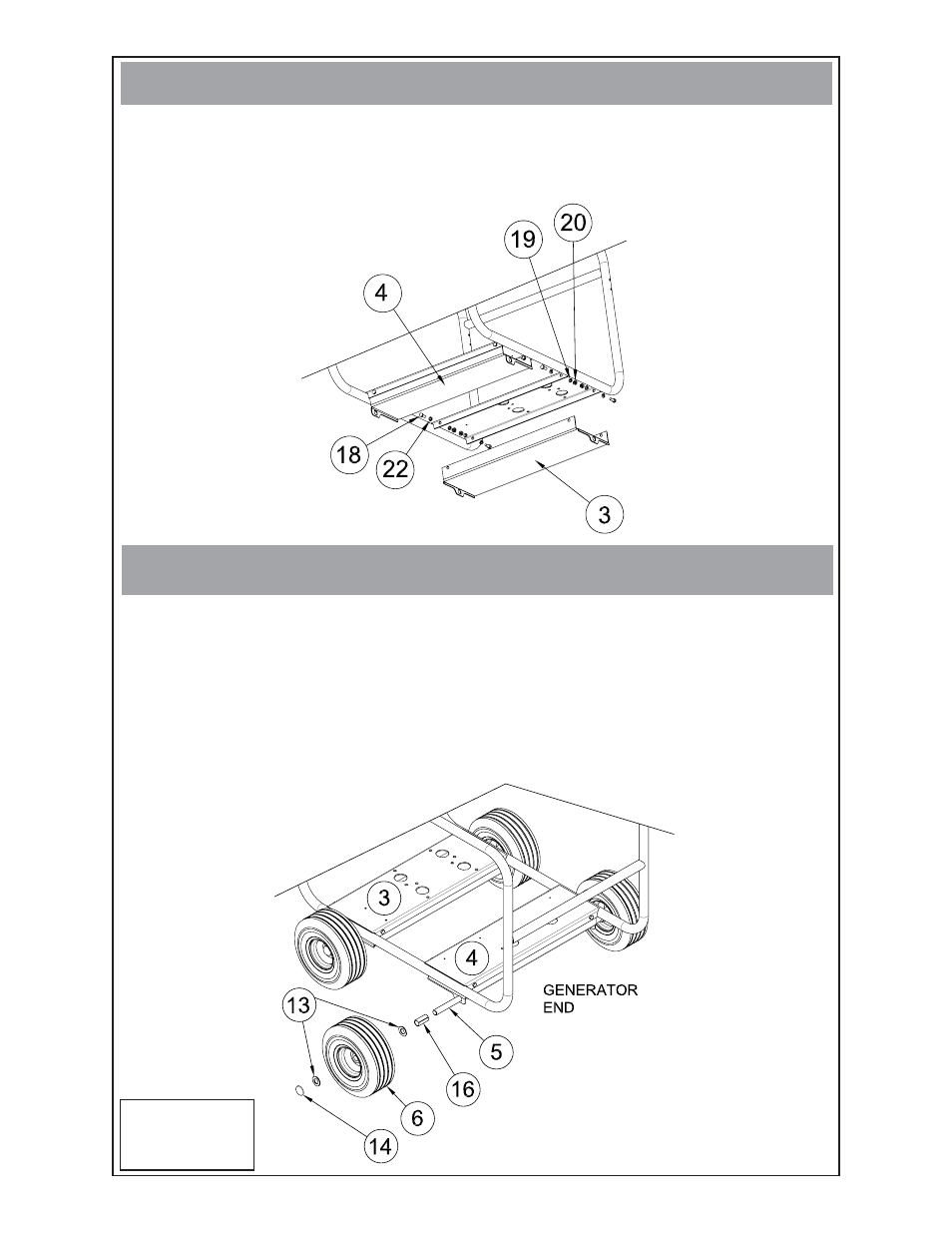

Bolt Front Axle Bracket (ref.3) on the engine end of the cradle and Rear Axle
Bracket (ref.4) to the generator end of the cradle using hardware (ref. 18, 22, 19,
20). Make sure the axle brackets are on the inside of the cradle cross-members.
The fl at washers (ref. 22) go onto the bolts (ref. 18) fi rst. •
