3 12048-00 16199-011I
Remove the generator from the pallet and block generator up 8 to 10 inches to
gain access to the bottom of the cradle assembly. A lifting jack or hoist may also
be used if available. •
STEP 2
STEP 3
WL12000HE
SHOWN HERE

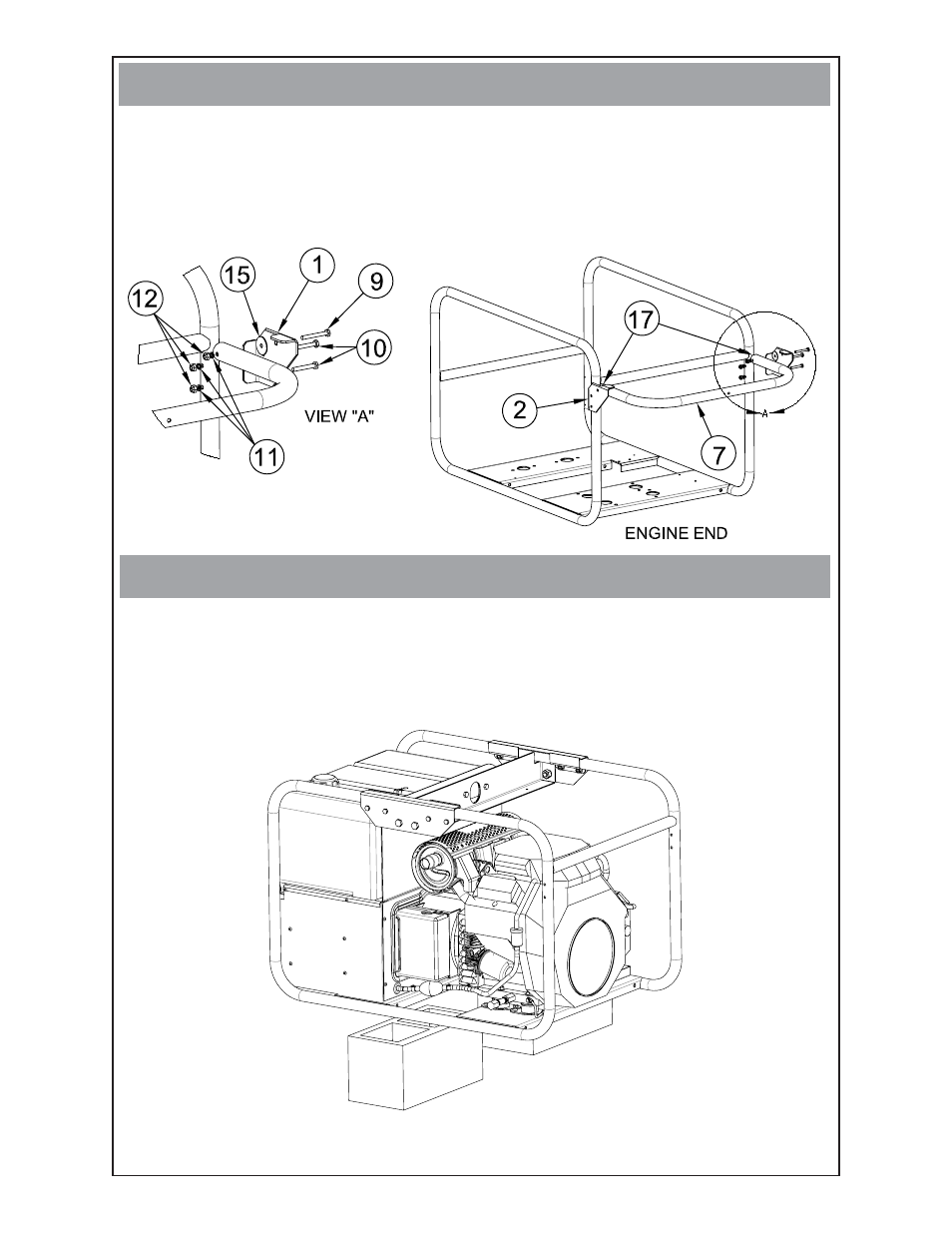

Cut the foam strip (ref. 21) in half using a scissors. Apply to the underside of the
handle supports (ref. 1 & 2). Insert hole plugs (ref. 17) into the ends of the handle.
Bolt left and right handle supports (ref. 1 & 2) to the cradle using hardware (ref.
10, 11, 12). Place the nylon fl at washer (ref. 15) between the handle supports
and handle then attach handle (ref. 7) using hardware (ref. 9, 11, 12). Tighten the
nylock hex nuts (ref. 12). Do not over-tighten so that the handle will move freely. •
•
HPS12000HE
CRADLE SHOWN
HERE
