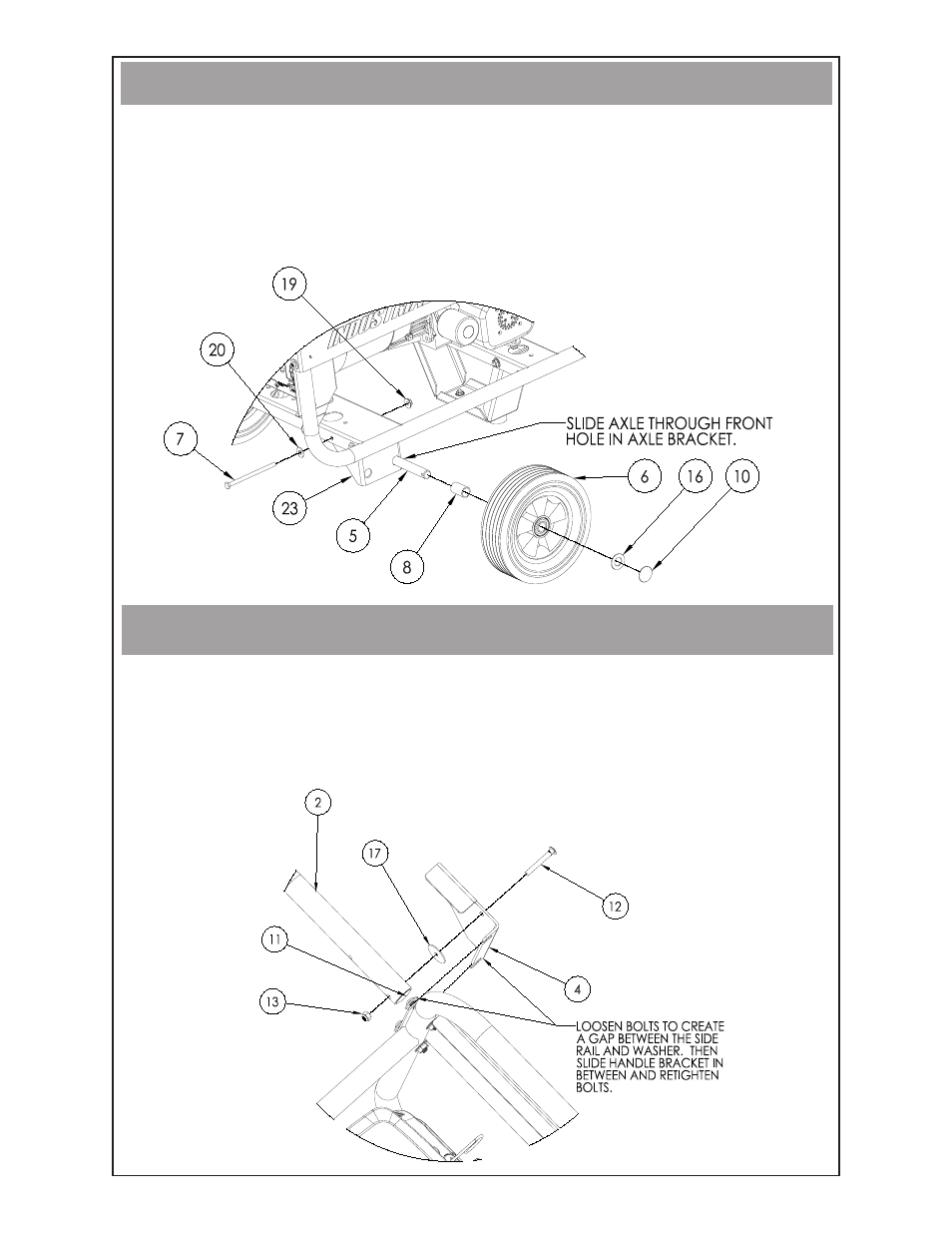

STEP 4
Place both axle brackets (ref. 23) into the rear cross channel of the cradle and bolt
on with hardware (ref. 7, 20, 9)
Tap one hubcap (ref.0) onto axle using a rubber mallet. Slide washer (ref. 6),
wheel (ref. 6) and spacer (ref. 8) onto axle (ref. 5). Then slide assembly through
the two axle brackets. Place other spacer, wheel and washer on axle and lower to
the ground. Place the other hubcap on the axle and tap into place with a rubber
mallet.
•
•
STEP 5
Install hole plugs (ref. ) into ends of handle (ref. 2). Cut the foam strip (ref. 5)
in half using a scissors. Apply to the underside of the handle supports (ref. & 4).
Bolt left and right handle supports (ref. & 4) to the cradle using hardware on
cradle. Attach handle (ref. 2) using hardware (ref. 2, 7, 3). Tighten the nylock
hex nuts. Do not over-tighten so that the handle will move freely.
•
•
