4 2038-02 699-020I

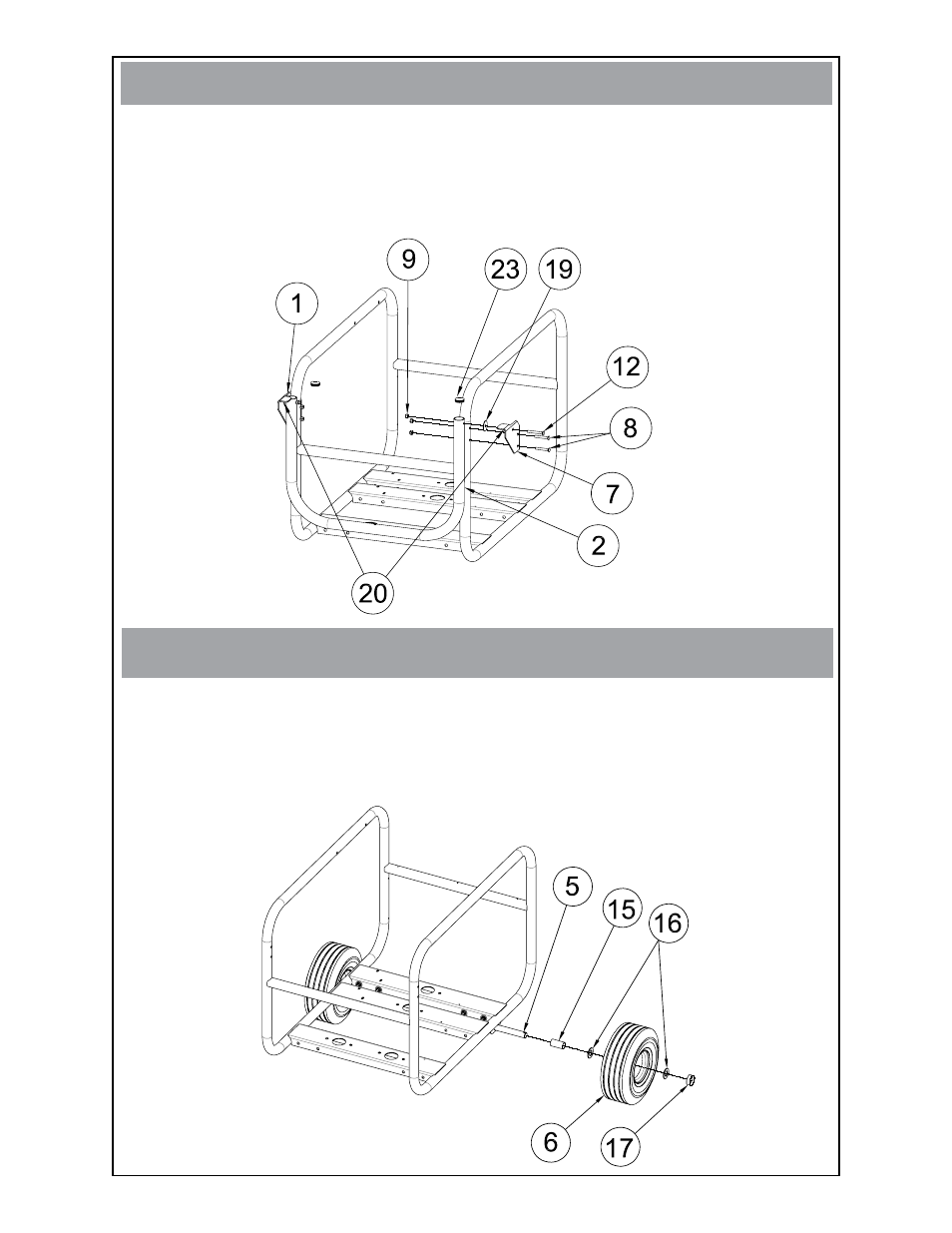

STEP 4
Install hole plugs (ref. 23) into ends of handle (ref. 2). Cut the foam strip (ref. 20)
in half using a scissors. Apply to the underside of the handle supports (ref. & 7).
Bolt left and right handle supports (ref. & 7) to the cradle using hardware (ref. 8,
9). Attach handle (ref. 2) using hardware (ref. 2, 9, 9). Tighten the nylock hex
nuts. Do not over-tighten so that the handle will move freely.
•
•
STEP 5
Tap one hubcap (ref.7) onto axle using a rubber mallet. Slide washer (ref. 6),
wheel (ref. 6), washer (ref. 6) and spacer (ref. 5) onto axle (ref. 4). Then slide
assembly through the two axle brackets. Place other spacer, washer, wheel and
washer on axle and lower to the ground. Place the other hubcap on the axle and
tap into place with a rubber mallet.
•
