Winco WC10000VE Dolly Kit Assembly Instructions - Manual (Page 3)

3 2038-02 699-020I
Remove the generator from the pallet and block generator up 8 to 0 inches to
gain access to the botton of the cradle assembly. A lifting jack or hoist may also
be used if available.
•
STEP 2
STEP 3

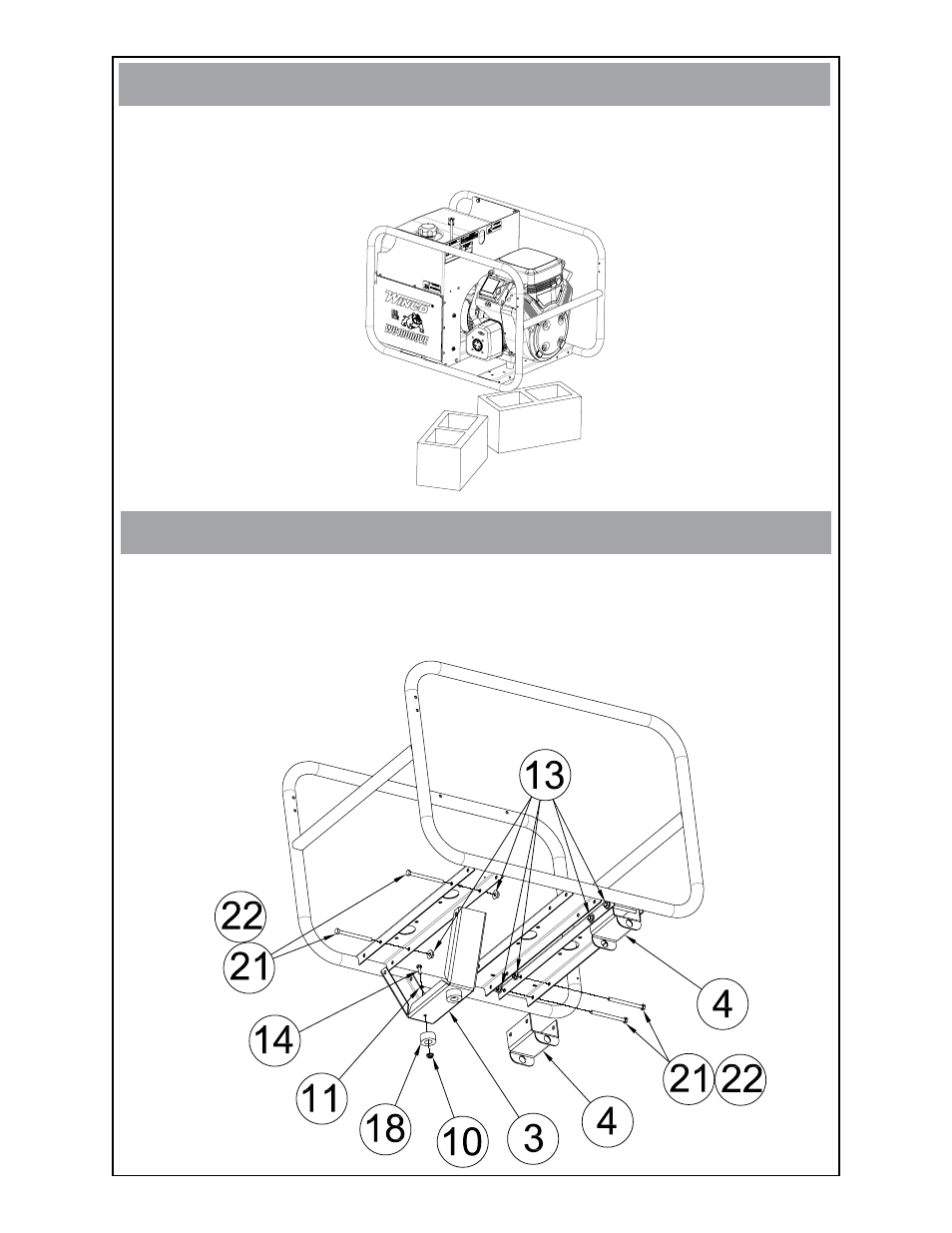

Bolt shock mounts (ref. 8) to the bottom of the foot bracket (ref. 3) using hard-
ware (ref. 4, & 0). Place foot bracket (ref. 3) into the front cross channel of
the cradle and bolt on with hardware (ref. 22, 2, 3). Place both axle brackets
(ref. 5) into the rear cross channel of the cradle and bolt on with hardware (ref. 22,
2, 3).
•
