How To Use ‘Push-In’ Connectors (Fig. 3)
This product is outfitted with user-friendly ‘Push-In’
connectors. Proper use of the connectors is shown in
the diagrams.
It is most important that the tubing selected for use
with these connectors be of high quality, exact size and
roundness, and free of surface nicks and scratches. If
it is necessary to cut the tubing, use a plastic tubing
cutter or sharp razor knife. Make it a clean square cut.
Should a leak occur at a ‘Push-In’ connector, the
cause is usually defective tubing.
To fix: • Relieve pressure
• Release tubing
• Cut off at least 1/4” from end
• Re-attach tubing
• Confirm the connection is leak free
2
Tubing is secured in. Push tubing straight in as far as it will go.
Grey Collet
Tube
1
To Attach Tubing
1
Push in grey collet to release tubing. Pull tubing straight out.
2
To Release Tubing

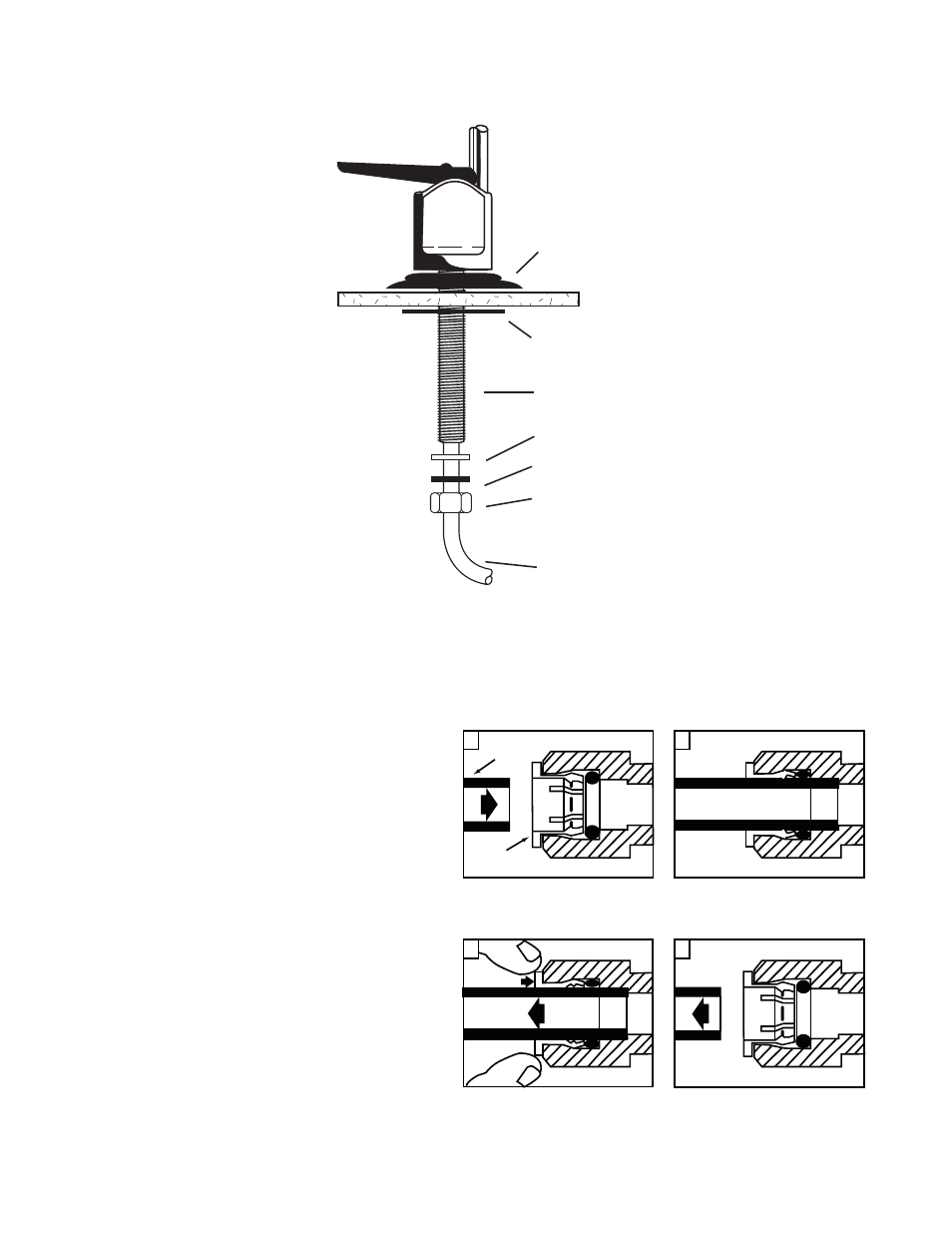

Faucet Installation (Fig. 2)
Plastic Base Plate
Plastic Bottom Washer
Threaded Nipple
Flat Washer
Star Washer
Hex Nut
Blue 1/4” Product Water
Tubing
