SAFETY/DECALS
13

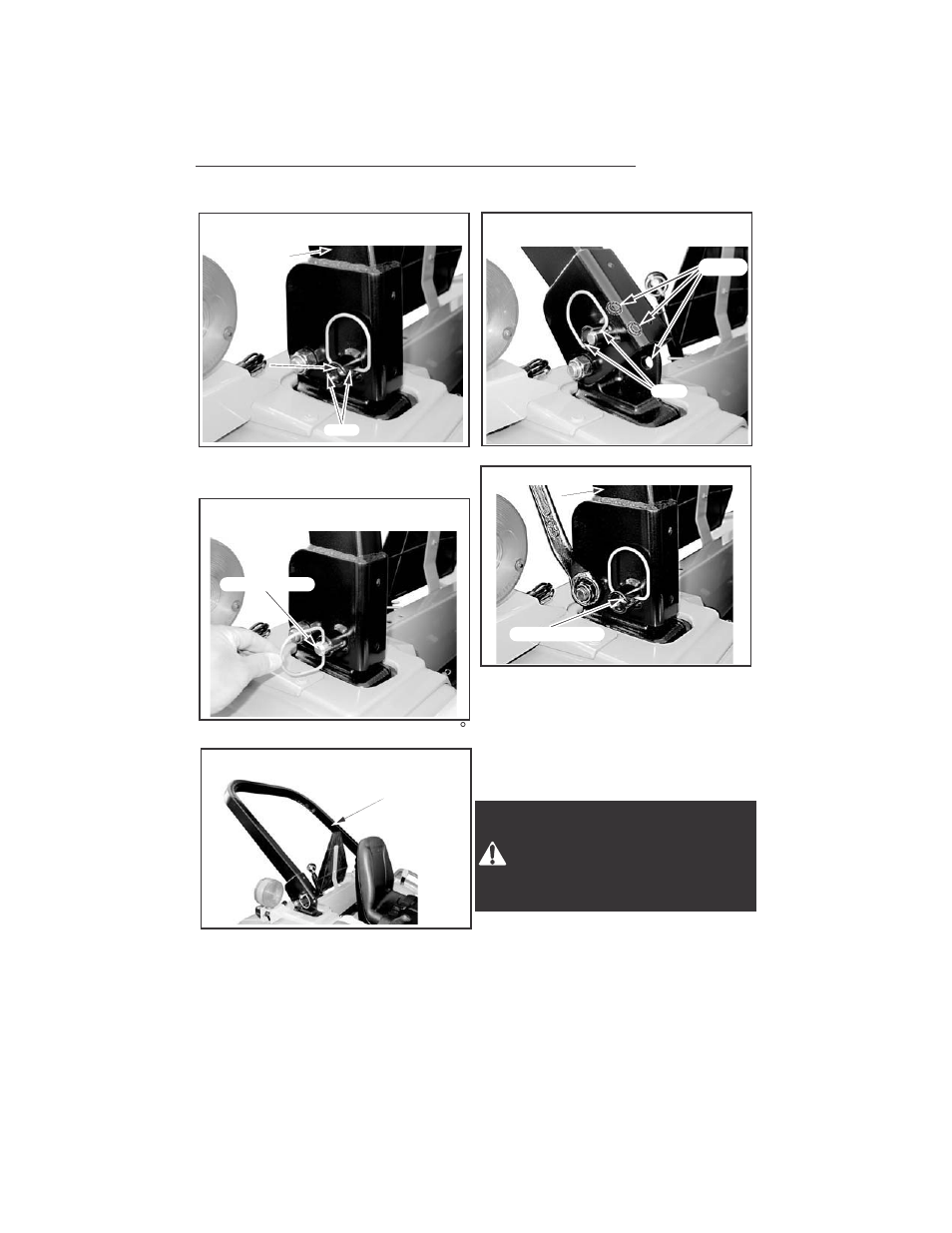

STEP 1
While holding the ROPS bar.
CAREFULLY pull the position pins.
CAREFULLY move the ROPS bar
to the desired position.
Rotate position pin and insert GUIDE
to SLIT. In this state, move ROPS bar
up and down and position pin is
installed completely ROPS bar can
set at three position.
And then Rotate position pin to (90 ).
Rollover protection is provided
only with proper assembly. Lock
pins, must be in place. Correct
parts may be obtained from your
dealer.
POSITION PIN
HOLE
SLIT
SLIT
POSITION
PIN
ROPS BAR ROPS BAR
NORMAL
NORMAL
OPERATING
OPERATING
POSITION
( (
ROPS BAR
NORMAL
OPERATING
POSITION
( (
POSITION
PIN
ROPS BAR
STEP 2
STEP 3
STEP 5
Adjustment of Foldable ROPS.
If you feel less friction when the ROPS
is in the upright position, tighten the
nut untill you feel the right friction
in the movement.
STEP 4
POSITION PIN
ROPS BAR ROPS BAR
UPRIGHT
UPRIGHT
POSITION ( ( (
ROPS BAR
UPRIGHT
POSITION
( ( (
