Visual Sound VS-XO User Manual
Visual sound vs·xo, Instructions

Visual Sound VS·XO
Instructions

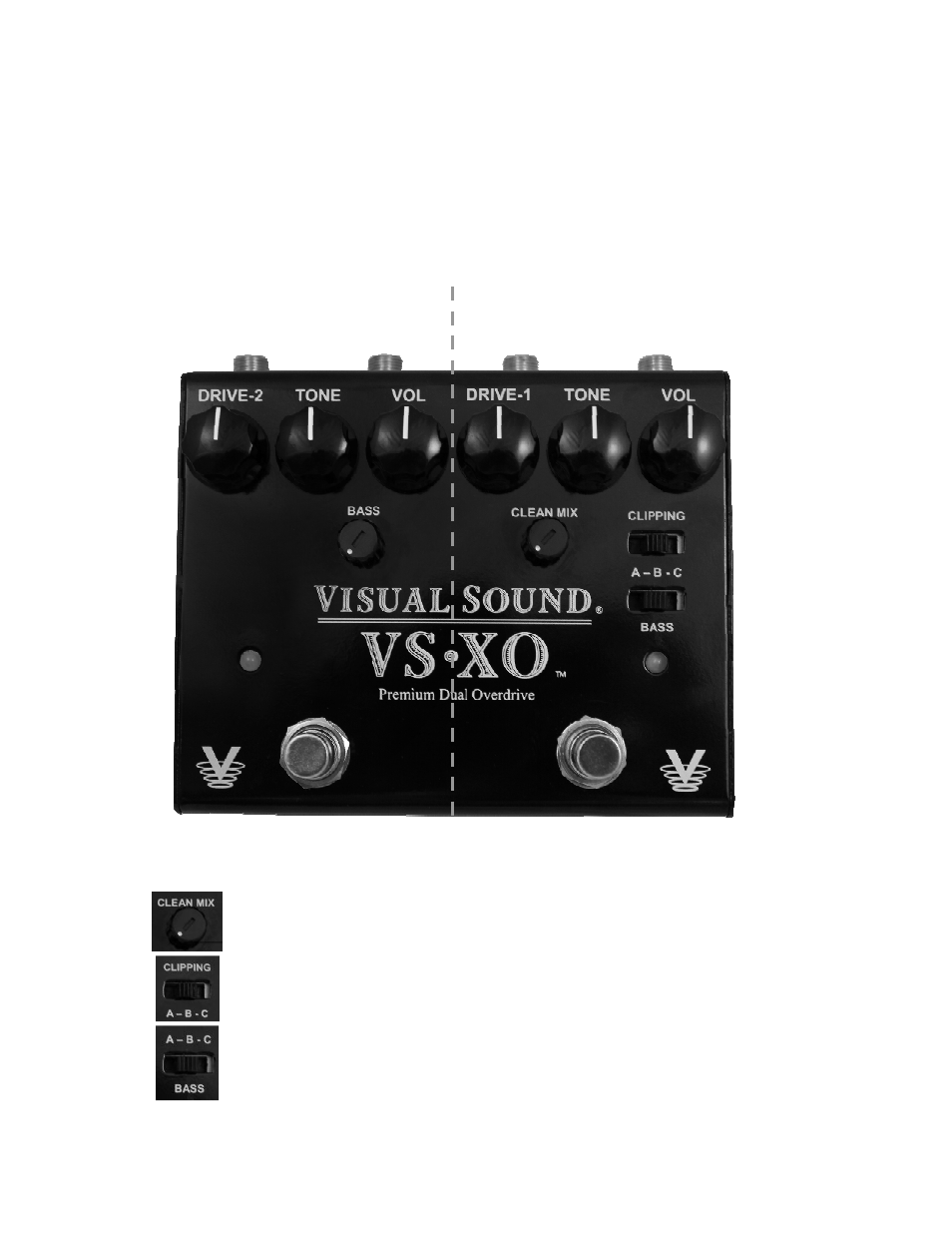

The VS-XO is a true dual overdrive. Think of it as two separate pedals in one
housing. The following instructions will give you some tips on setup and use,
although you can probably just plug in and start using it right away.
Overdrive 1:
Typical Drive, Tone (high boost / cut), and Volume knobs, plus
Overdrive 1
Overdrive 2
Use the Clean Mix knob to go from 100% Clean boost (minimum setting) to
100% Overdrive (max. setting), or anything in between.
Clipping chooses between three different clipping diode voices:
A) No diodes
low gain, organic. B) Two LEDs
medium gain, bright.
C) Three signal diodes
higher gain, smooth asymmetrical clipping.
Bass switch chooses between three different bass levels:
A) Slight bass cut. B) Slight bass boost. C) Larger bass boost.
You will find that B sounds almost exactly in the middle of A and C.
