6 | P a g e

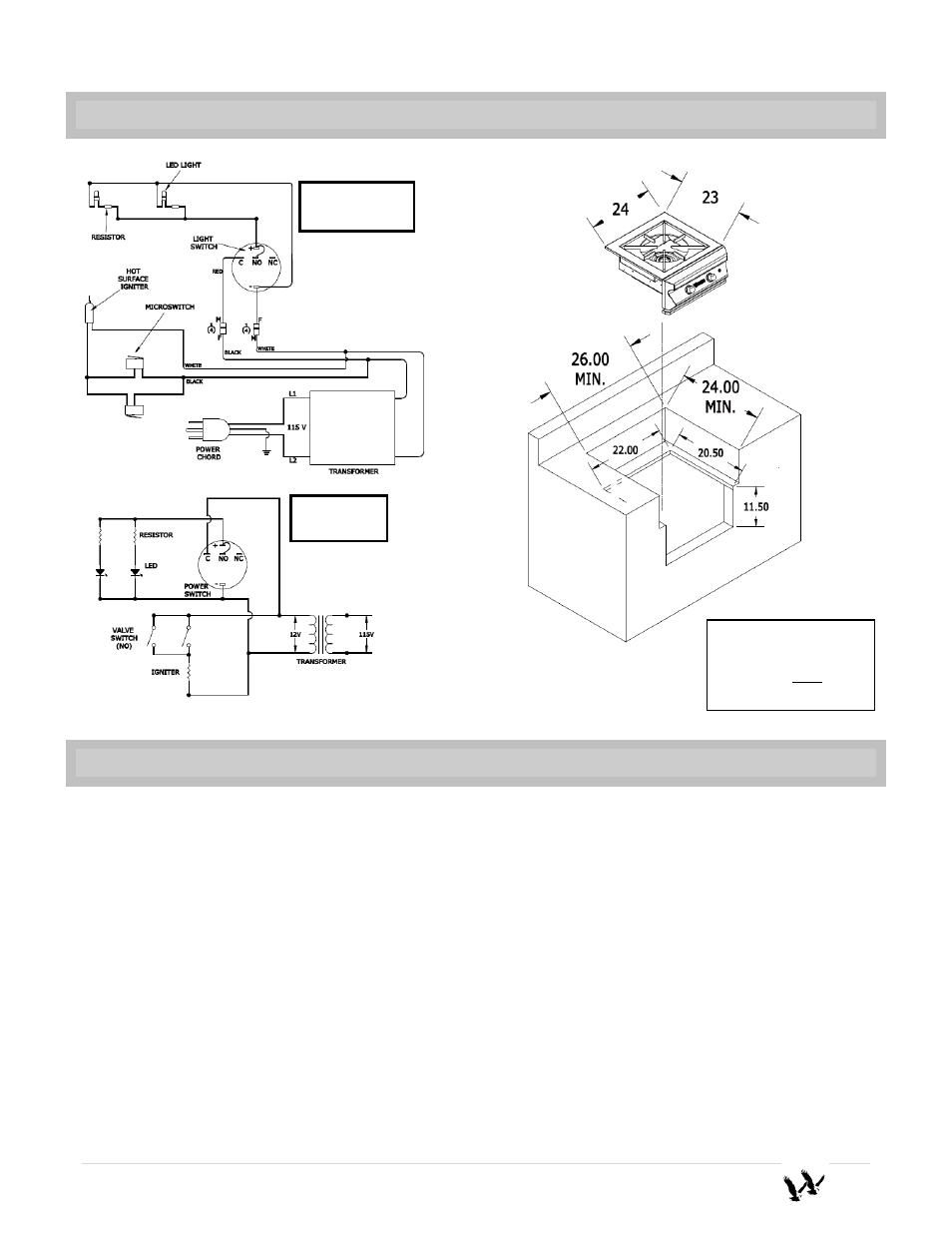

ELECTRICAL WIRING DIAGRAM AND TYPICAL CUTOUT DIMENSION
LOCATING THE POWER BURNER – T WIN E AGLES G AS P OWER BURNER
This gas appliance is designed and certified for outdoor use only. Do not locate this Power
Burner under overhead combustible surfaces. Do not operate the Power Burner inside a building,
garage, recreation vehicle or any enclosed area. When choosing an area, consider exposure to wind,
proximity to traffic paths and length of gas supply line. Keep gas supply lines as short as possible to
reduce pressure drop. Keep the Power Burner away from windy area but keep the Power Burner in a
well-ventilated area. Do not obstruct the flow of combustion and ventilation air around the Power
Burner. The supporting edges of the Power Burner must be located level and flat. The counter should
also be leveled.
CONNECTION
DIAGRAM
LADDER
DIAGRAM
Note:
It is recommended to build
the enclosure for the power
burner 6”-12” lower than
the countertop.
