Twin Eagles Dine and Breakfast Club NG to LP Conversion - Manual (Page 3)

2
Warning: The LP Hose and Regulator Assembly should be a Type 1 Connection
and set at 11” of Water Column.

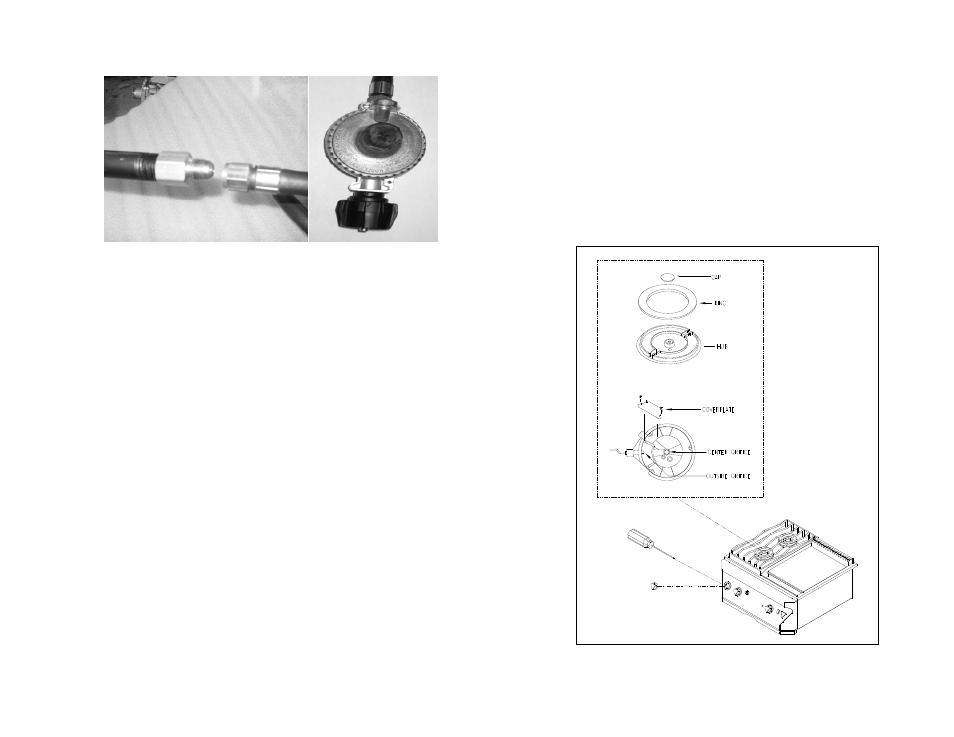

LP Hose with regulator
3. Top Burner Conversion
3-1) Remove the burner cap, burner ring and burner hub to expose the burner base
and center orifice.
3-2) Remove the orifice cover plate to expose the outside orifice.
3-2) Remove the center orifice and outside orifice using a 7-mm. wrench.
3-3) Replace the orifices to LP Gas as follows:
ORIFICE FROM NATURAL GAS TO LP GAS
Center 0.82mm (#67 DMS) 0.50mm (#76 DMS)
Outside 1.75mm (#50 DMS) 1.00mm (#61 DMS)
3-4) Make sure the regulator has been properly connected, replaced for LP Gas
3-5) Check for leaks.
3-6) NEVER USE THE TOP BURNER WITHOUT FIRST LEAK TESTING THE GAS
CONNECTION.
a) Prepare a leak testing solution of sudsy water by mixing in a spray
bottle with half liquid soap and half water.
b) Confirm that all control knobs are in the “OFF” position.
c) Turn the main gas valve supply “ON”.
d) Apply leak testing solution by spraying on the pipe joints, fittings, and
hose.
e) A gas leak is detected if;
i. there is a faint gas smell and/or
ii. growing bubbles appear on any of the connection points
and/or hose. DO NOT attempt to ignite the grill and
IMMEDIATELY turn off the gas supply valve.
f) When there is a gas leak, call a qualified service technician. DO NOT
use the grill until the leak is corrected.
3-7) Turn on burners. Set burners to low setting and check for burner flame height. If
the flames are too high for simmering or too low that they would not stay lit,
adjust the low flame setting.
3-8) To adjust low flame setting, pull out burner knob towards you. This will expose
the valve stem.
3-9) Insert a flat, skinny screw driver into the stem and turn the adjusting screw to the
left to increase the flame or to the right to decrease the flame. DO NOT OPEN
THE SCREW TOO MUCH: THE SCREW COULD FALL OFF THE STEM AND
MAY CAUSE GAS LEAK.
3-10) Fill up the Conversion Label. Next, paste it next to the original Serial Plate.
3-11) The conversion is complete and the unit is ready for installation. Refer back to
the Installation Manual.
