Step 8:
.
• Install the reinforcing SERVO, reinforcement PLATE, and reinforcement ANGLE using
the seven sets of 6/32” screws, washers, and lock nuts provided. Below is a conceptual

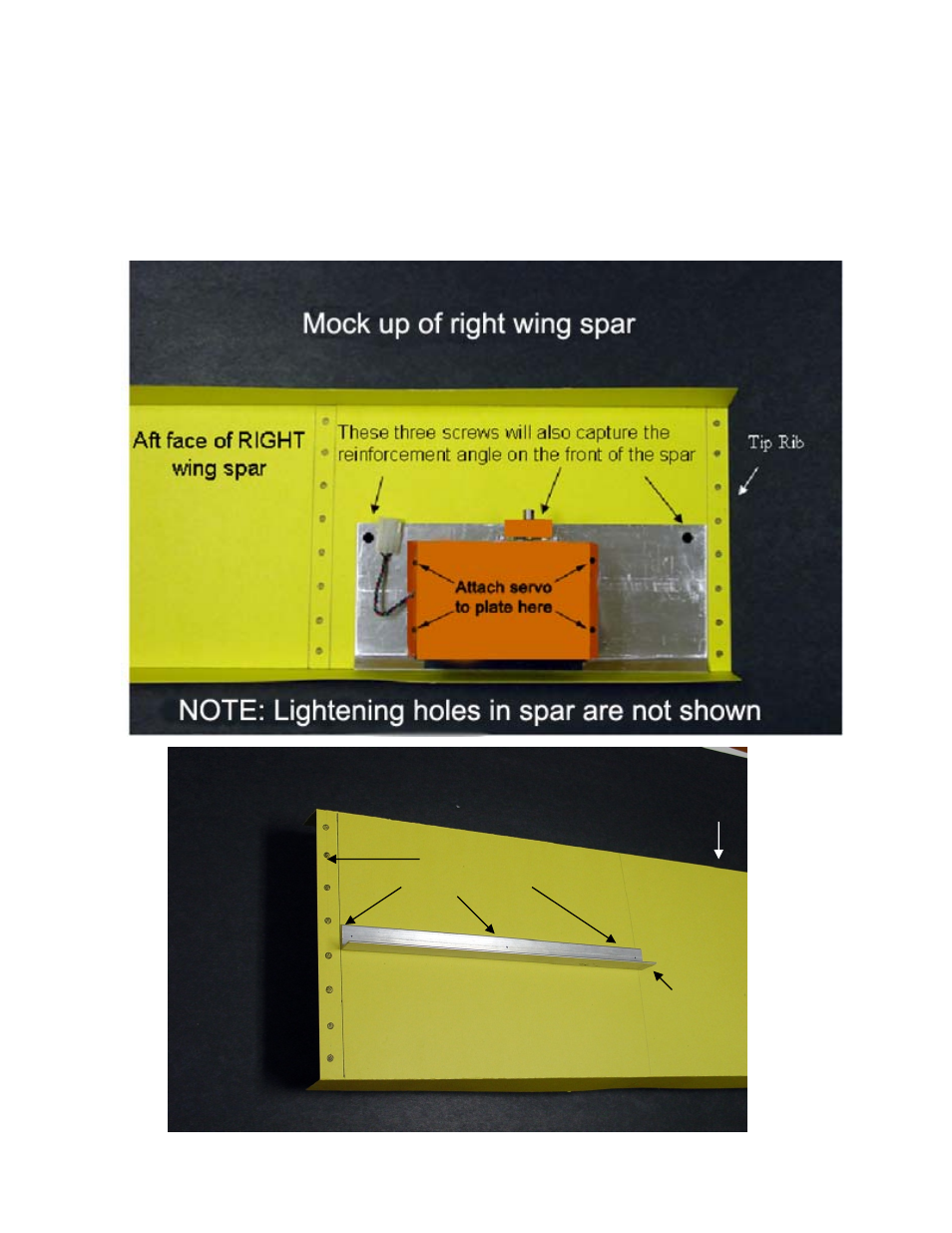

mock up that should help clarify the objective.
Aft face of RIGHT
wing spar
These three screws will also capture the
reinforcement angle on the front of the spar
Tip Rib
Mock ups of right wing spar
These 4 screws
secure the SERVO
Forward face of RIGHT wing spar
Tip Rib
Three screw holes
Top of spar
Angle
flange
down *
*
*
*
*
*
*
(4) SERVO
mounting holes
