Lock Washer
5/16" (4)
Nut 5/16"-18 (6)
Clevis Pin
5/16"x2-3/4" (1)
NOTICE
Handle
Insulated
Staples (10)
ASSEMBLY
INSTALLATION
Dry Wall Anchors (2)
Clevis Pin
5/16"x1" (1)
Hex Screw
5/16"-18x7/8" (4)
Rope
Trolley Clip (1)
Lock Nut
1/4"-20x7/16" (12)
Nut
5/16"-18 (4)
Washered Screw
5/16"-18x1/2" (2)
(mounted in opener)
Carriage Bolt
5/16"-18x2-1/2" (2)
Carriage Bolt
1/4"-20x1/2" (12) Master Link (2)
Ring
Fastener (3)
Trolley
Threaded Shaft (1)
Lock Washer
5/16" (6)
Lag Screw
5/16"-9x1-5/8" (2)
SAFETY REVERSING SENSOR
Wing Nut (2) Insulated
Staples (20)
RAIL GREASE
NO. 83A4
Rail Grease
Hex Screw
5/16"-18x7/8" (4)
Carriage Bolt
1/4"-20x1/2" (2)
Spring Nut (1)
Lag Screw
5/16"-18x1-7/8" (2)
Clevis Pin
5/16"x1-1/4" (1)
Screw
6ABx1-1/4" (2)
Screw 6-32x1" (2)
7

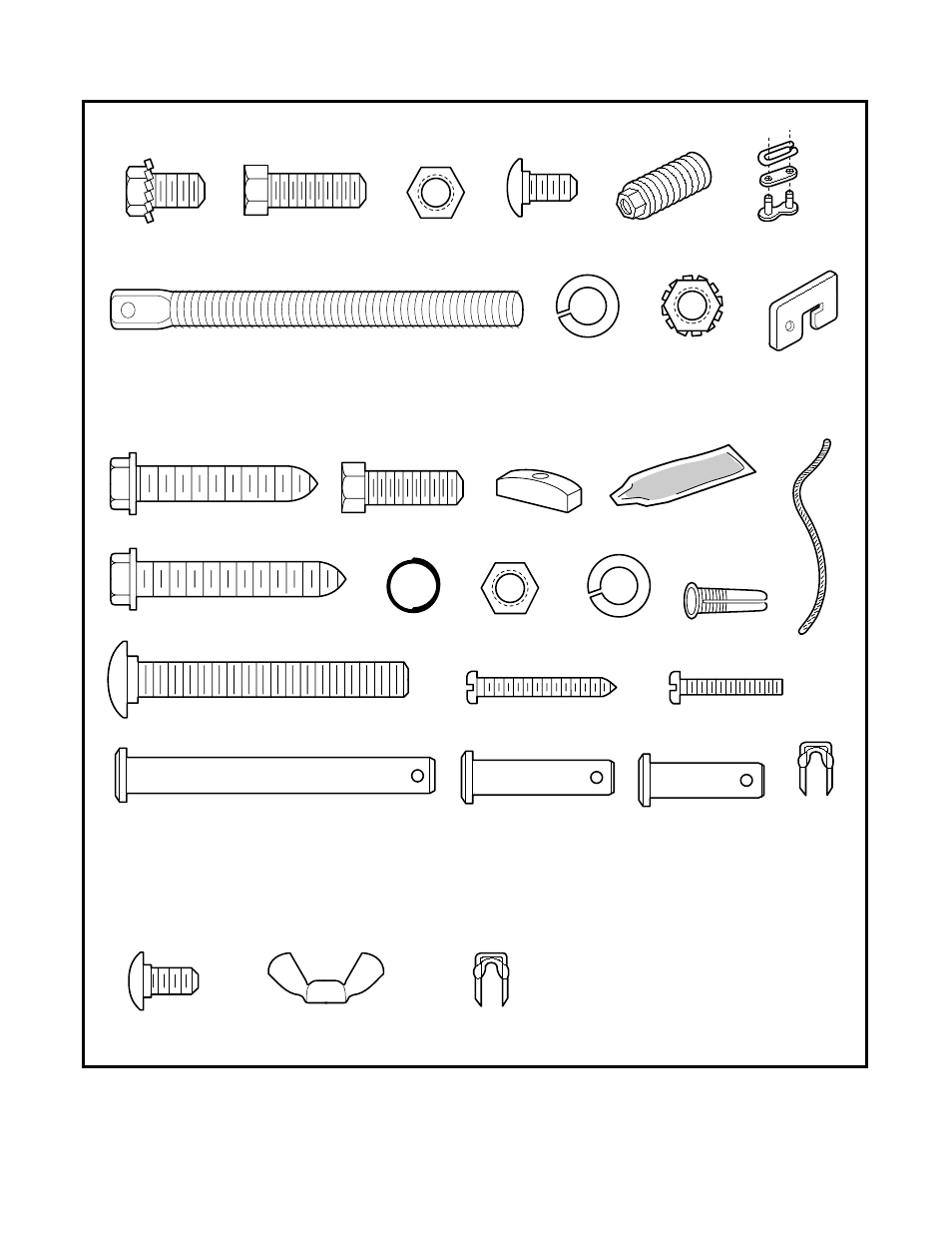

Group all hardware found in all packages contained in the rail and opener cartons into
the three kits illustrated below.
