6 • T-MAXX

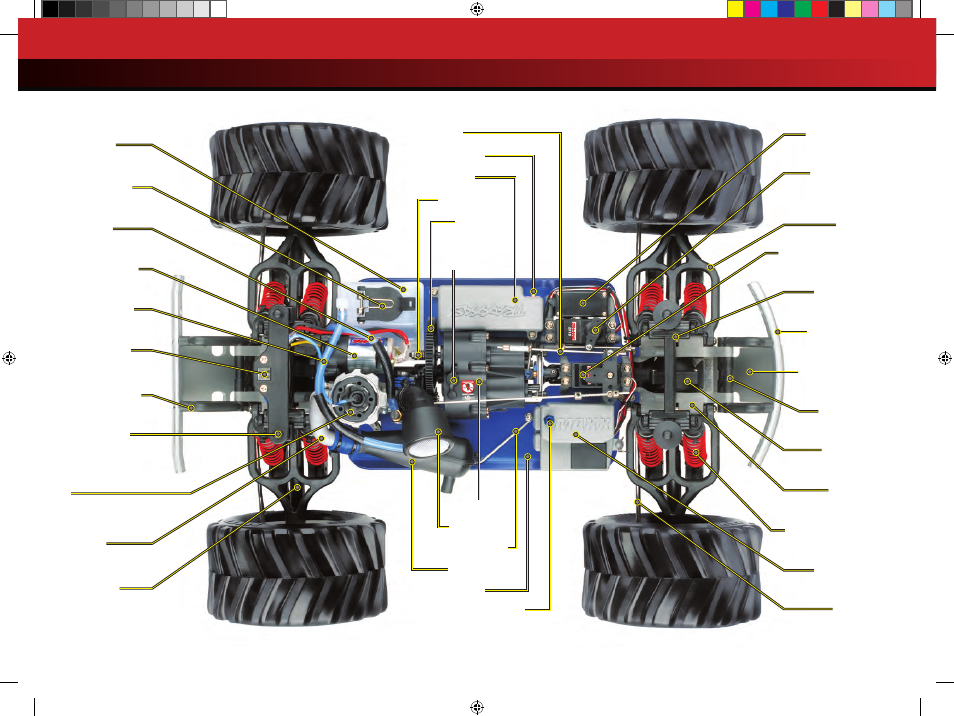

ANATOMY OF THE T-MAXX
Battery Box
Fuel Tank
Fuel Tank Lid
Steering Servo
Shifting Servo
Suspension Arm
(upper)
Bumper (front)
Bumper Mount
Skid Plate (front)
Cross-brace
Oil Shock (Damper)
Differential
Toe Link
(Turnbuckle)
Throttle/Brake Servo
Receiver Box
Transmission
Air Filter
Tuned Pipe
Header
TRX 2.5 Racing Engine
see pg. 15 for details
Pressure Line
Fuel Line
EZ-Start Motor
EZ-Start Plug
Bulkhead
Shock Tower
Body Mount
Spur Gear
Chassis
Slipper Clutch
Driveshaft
(Half Shaft)
On/Off Switch
Shift Rod
Antenna Mount
Pipe Hanger
Two Speed
Adjustment
Access Plug
