E-26

2

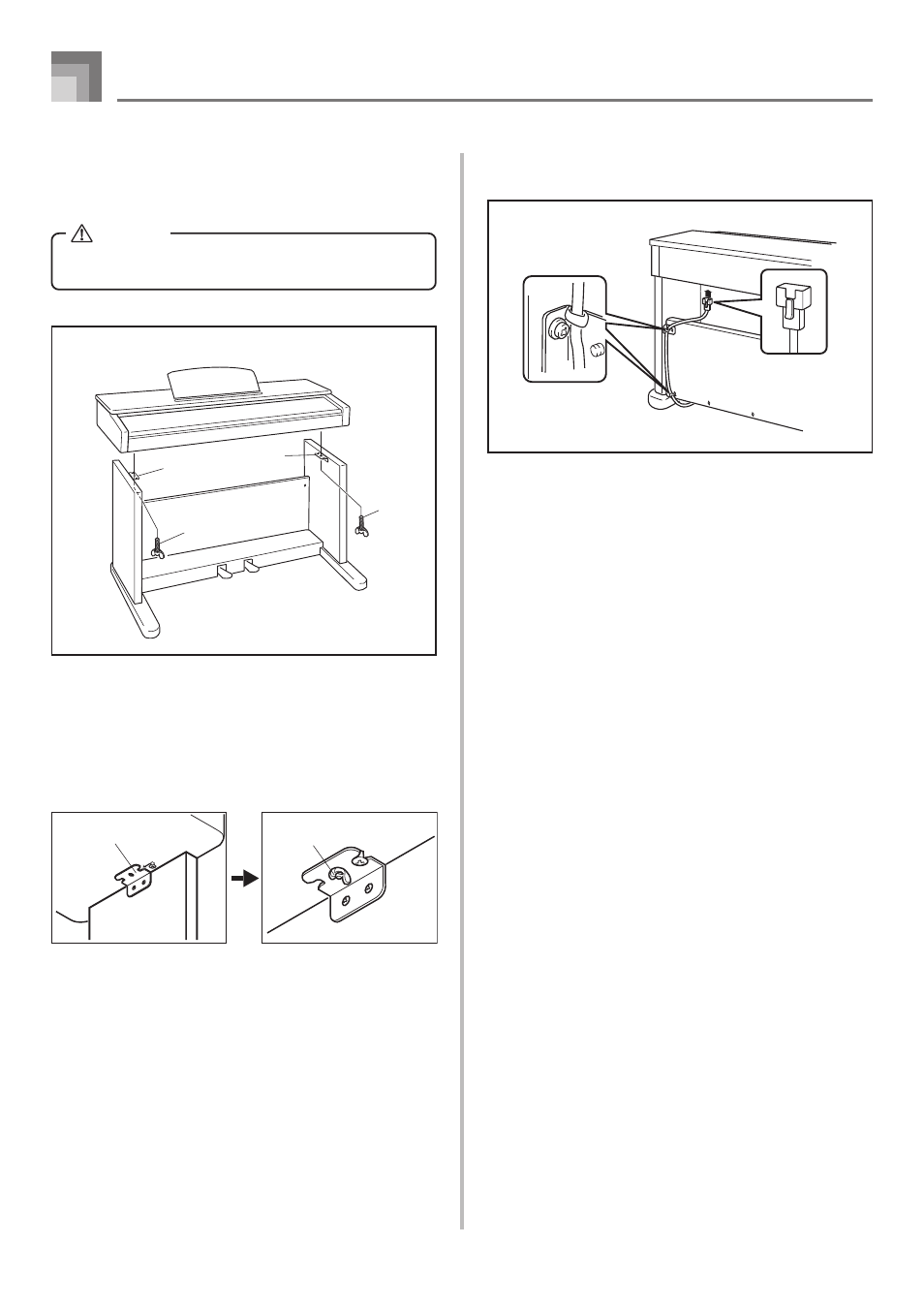

Installing the Keyboard onto

the Stand

CAUTION

Take care that you do not pinch your fingers between the
keyboard and stand!

Assembly Instructions

Be sure that you securely anchor the keyboard to the stand
using the H butterfly bolts (Figure 6).
• Slide the screws on the bottom of the keyboard into the

slots in the two angle brackets 8. Next, secure the keyboard
to the stand with two butterfly bolts H (Figure 7).

• The butterfly bolts keep the keyboard from falling from the

stand. Be sure that you always secure the keyboard with
the butterfly bolts.

3

Connecting the Pedal

Position the pedal plug as shown in Figure 8 and insert it
into the pedal connector on the bottom of the digital piano.
Secure the pedal cable to the upright of the stand using the
clips (Figure 8).

Figure 6

8

H

H

8

Figure 7

H

8

Front

Back

Figure 8

Clip

Pedal plug

420A-E-030A
