Base Diameter ø360 mm
Shaft Diameter Upper shaft: ø15.9 mm
Lower shaft: ø22.2 mm
Stand Thread W3/8
Thread Adapter U5/16
Adjustable Stand Height 908 – 1,515 mm
Weight 3.8 kg
Finish Shaft: Chrome plating
Base: Semi-mat paint, black
Specifications are subject to change without notice.
7. SPECIFICATIONS
URL: http://www.toa.jp/

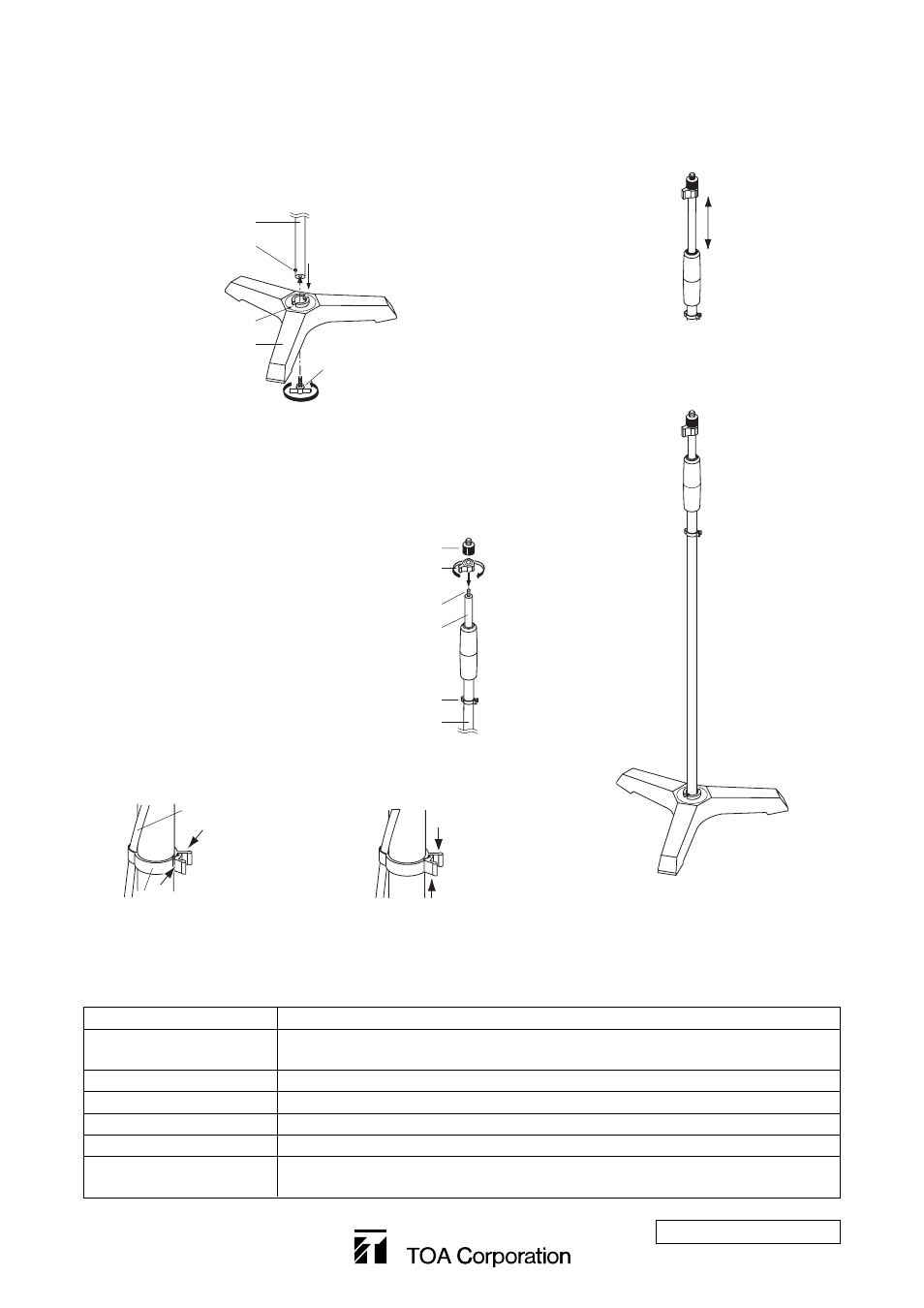

4. ASSEMBLY
Step 1. Aligning the lower shaft's projection with the
corresponding hole in the base, insert the lower
shaft into the base. Then, tighten T-bolt from the
back of the base.
Step 2. Turn the lock nut to mount it to the stand thread,
then mount the optional microphone holder to the
thread. (When there is a gap between the holder
and lock nut, loosen the lock nut till the gap has
been covered. This permits the holder to be fixed
tightly.)
* Use the thread adapter
when the microphone
holder cannot be
mounted to the stand
thread.
Step 3. Run the microphone cable through the cable clip,
then mount the clip to the lower shaft.
Thread adapter *
Lock nut
Stand thread
Upper shaft
Cable clip
Lower shaft
Squeeze both tabs till
the clip clicks to be
locked. To detach the cable clip, twist
tabs in the direction marked with
the arrows using fingers.
Lower shaft
Base
(Projection) hole
Projection
(rotation stopper)
T-bolt (with washer)
5. HEIGHT ADJUSTMENT
The height can be adjusted by simply raising
or lowering the upper shaft.
6. COMPLETED ASSEMBLY FIGURE
